Stainless Hlau & Alloy Steel Tube Solutions rau Engineering Machinery
Nyob rau hauv engineering machinery kev lag luam, tubing yog dav siv nyob rau hauvhydraulic systems, cov kab khiav dej, cua txias circuits, instrumentation systems, cov khoom siv, thiab cov cuab yeej ua haujlwm hauv corrosive lossis xav tau ib puag ncig.

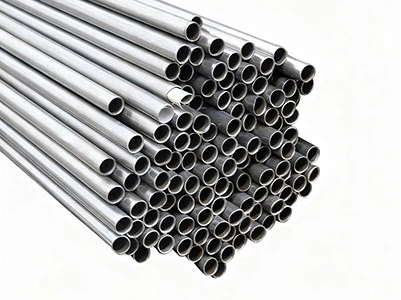

TORICH muab seamless stainless hlau raj, welded stainless hlau raj, precision tubing, instrumentation tubing, hydraulic tubing, thiab xaiv alloy steel hlab rau kev tsim kho cov cuab yeej, mining machinery, lifting equipment, and heavy{0}}duty industrial systems.
Txawm hais tias koj tab tom nrhiav rau hydraulic kab tubing, txias system tubing, corrosion-resistant piping, los yog siab -lub zog structural tubing, TORICH muab ib tug ua tiav kev daws teeb meem.
Qhov Loj:
TORICH muab tubing rau kev tsim kho tshuab thiab khoom siv hauv ntau qhov ntau thiab tsawg, nrogsab nraud diameterslos ntawm3 mm630mm thiabphab ntsa thicknesseslos ntawm0.5mm txog 40mm.
Khoom siv:
- Stainless hlau: 304 / 304L / 316L / 321 / 2205 / 2507
- Alloy hlau: 4130 / 4140 / 42CrMo4
Cov qauv:
- Txheem: ASTM A269 / ASTM A213 / ASTM A312 / ASTM A511 / ASTM A513 / ASTM A519
- EN 10216-5 / EN 10305-1 / EN 10305-2 / EN 10305-4
- DIN 2391 / DIN 2393 Cov
- JIS G3446 / JIS G3445
Engineering Machinery Stainless Hlau Tube Daim Ntawv Thov
Hydraulic Lub tog raj kheej System
Tube Solution:Seamless stainless hlau raj / honed raj
Hom Qib:304 / 316L / 316 / 2205 / 2507 / 17-4PH
Qhov Loj Loj:OD: 30-300 hli|WT: 3-40 hli
Qauv:Txheem: ASTM A269 / ASTM A213 / EN 10305-1 / DIN 2391
Achievable Quality:H8-H9 bore kam rau ua, Ra Tsawg dua los yog sib npaug rau 0.4 μm, ncaj nraim Tsawg dua los yog sib npaug rau 0.5 mm / m, thiab hydrostatic siab tsis kam Siab dua los yog sib npaug rau 400 bar rau ruaj khov sealing kev ua tau zoo nyob rau hauv hnyav -lub tog raj kheej hydraulic.
Hydraulic Kab System
Tube Solution:Precision seamless stainless hlau raj rau siab -siab hydraulic kua kis tau tus mob
Hom Qib:304 / 304L / 316L
Qhov Loj Loj:OD: 6-60 hli|WT: 0.5-4.0 hli
Qauv:ASTM A269 / EN 10216-5 / DIN 2391
Achievable Quality:Kev tawg siab 400-800 bar nrog OD kam rau ua ± 0.08 hli, nruj bendability, thiab xoom-kev ua tau zoo nyob rau hauv kev vibration thiab siab cycling.
Boom Structural System
Tube Solution:Siab -lub zog stainless hlau / alloy structural raj rau boom thiab caj npab sib dhos
Hom Qib:304/316L/2205/2507/4130/4140/42CrMo4
Qhov Loj Loj:OD: 50–325 mm|WT: 4-40 hli
Qauv:ASTM A519 / EN 10297 / EN 10216-5
Achievable Quality:Yield zog 355-650 MPa, tensile zog 520-900 MPa, qaug zog lub neej Ntau tshaj los yog sib npaug zos rau 10⁶ cycles, thiab tswj ncaj nraim nyob rau hauv 0.3-0.5 mm / m rau structural stability nyob rau hauv cyclic loading.
Cav Roj & Lubrication System
Tube Solution:Seamless stainless hlau raj rau roj, roj, thiab hydraulic kua hloov tshuab
Hom Qib:304 / 304L / 316L
Qhov Loj Loj:OD: 4-50 hli|WT: 0.5-3.0 hli
Qauv:ASTM A269 / ASTM A632 / EN 10305-1
Achievable Quality:Kev huv huv sab hauv ISO 4406 Tsawg dua lossis sib npaug rau 18/16/13 sib npaug, tus nqi xau Tsawg dua lossis sib npaug li 1 × 10⁻⁶ mbar·L / s, thiab cov tshuaj tsis muaj zog hauv qab diesel, hydraulic roj, thiab cov roj nplua nyeem raug.
Cooling System Tubing
Tube Solution:Stainless hlau raj rau lub cav txias thiab hydraulic roj txias circuits
Hom Qib:304L / 316L / 321
Qhov Loj Loj:OD: 6-25 hli|WT: 0.5-2.0 hli
Qauv:ASTM A269 / ASTM A213 / EN 10216-5
Achievable Quality:Thermal cycling kuj los ntawm -40℃mus rau 200 degree, Ntau tshaj los yog sib npaug rau 500 h ntsev tsuag kuj, thiab ruaj khov txhua yam kev ncaj ncees nyob rau hauv tas li coolant txaus tej yam kev mob.
Instrumentation & Tswj System
Tube Solution:Precision stainless hlau instrumentation thiab capillary raj rau kev paub thiab tswj tshuab
Hom Qib:304L / 316L
Qhov Loj Loj:OD: 3-25 hli|WT: 0.5-2.0 hli
Qauv:ASTM A269 / ASTM A632 / EN ISO 1127 Cov Ntawv Pov Thawj
Achievable Quality:OD kam rau ua ± 0.05 hli, WT kam rau ua ± 0.03 hli, Ra Tsawg dua lossis sib npaug ntawm 0.2 μm sab hauv, thiab ruaj khov siab xa mus txog 600 bar nrog helium leak- nruj kev ua haujlwm.
Kev cai Stainless Hlau Tubing rau engineering machinery
1. Dimensional & Geometric Customization
- Peb muab kev kho kom haum rau qhov tsis yog{0}} qhov loj me nrog ib txoj kab uas hla (OD) ntawm 3 mm–630 mm thiab phab ntsa thickness (WT) ntawm 0.5 mm–40 mm.
- Sab hauv txoj kab uas hla rau hydraulic lub tog raj kheej raj tuaj yeem tswj tau hauv H7-H9 ntau yam.
- Peb txhawb kev hloov kho ntawm cov raj tshwj xeeb- zoo li tus, suav nrog elliptical, tiaj tus, polygonal, plum-blossom, trapezoidal, thiab asymmetrical cross-sections.
- Kev cai raj khoov cov kev pab cuam muaj, nrog tsawg kawg yog dabtsi yog khoov vojvoog ntawm 1.5D-3D.
2. Internal Surface & Cleanliness Control
- Customizable puab nto roughness: Ra Tsawg dua los yog sib npaug rau 1.6 μm (tus qauv muaj qib); Ra Tsawg dua lossis sib npaug ntawm 0.8 μm (qib hydraulic); Ra Tsawg dua los yog sib npaug rau 0.4 μm (qib precision).

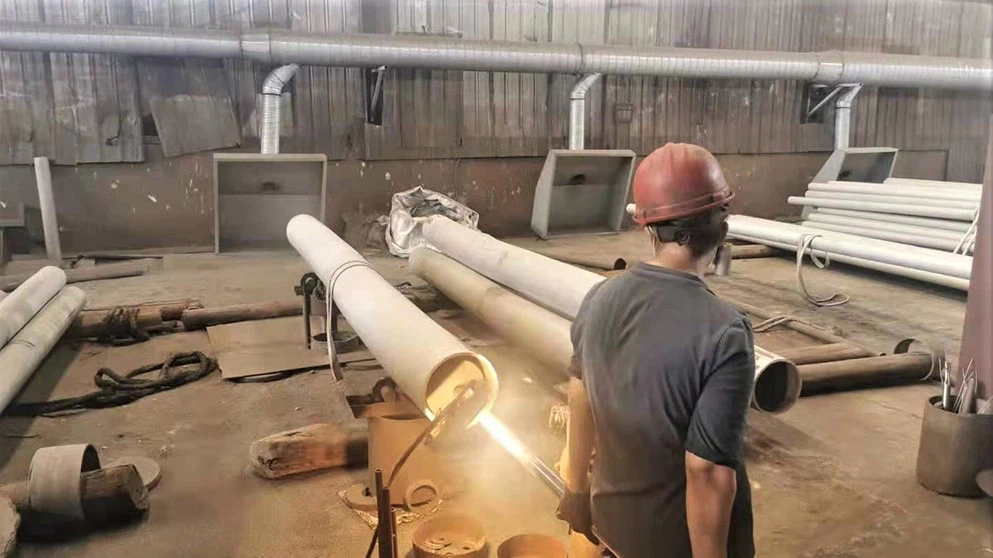

- Cov txheej txheem muaj xws li mechanical polishing, pickling thiab passivation, ci annealing, internal bore honing, thiab skiving thiab roller burnishing.
- Txhawb ISO 4406 cov qauv kev huv huv, nrog rau kev tiv thaiv lub kaus mom kawg lossis ntsaws rau kev thauj mus los.
3. Khoom siv Customization
- Austenitic stainless hlau: 304 / 304L / 316L / 321 (cov tshuab hydraulic dav dav, corrosion- cov kab hluav taws xob tiv taus, welded sib dhos)
- Ferritic stainless hlau: 409L / 439 / 441 (kua cua tshuab thiab nruab nrab - mus rau - cov ntawv thov kub)
- Duplex stainless hlau: 2205 / 2507 (siab -siab hydraulic systems thiab hnyav corrosive ib puag ncig)
- Thaum tshav kub kub-resistant stainless hlau: 310S (nruam siab -kev pabcuam kub)
- Nickel-raws li alloys: Inconel / Hastelloy (cov tshuab tseem ceeb cuam tshuam nrog huab cua corrosion thiab kub siab)
- Chromium-molybdenum steel: 4130 / 4140 (ultra- siab- siab hydraulics thiab structural load- kev siv cov kabmob)
4. Mechanical Strength & Pressure Rating
- Ua haujlwm siab: 100 - 1000+ bar (tsim nyob ntawm daim ntawv thov tshwj xeeb)
- Lub siab tawg: Ntau dua lossis sib npaug ntawm 2.5 - 4.0 × kev khiav hauj lwm siab
- Kev qaug zog: 10⁵ - 10⁷ cycles (hydraulic impulse test)
- Txias-ua haujlwm ntxiv dag zog: 10% - 60% nce zog
- Kev kho cua sov xaiv: Annealing / Solution kho / Stress relieving
- Hardness ntau yam: 80 HRB - 45 HRC (khoom siv nyob ntawm)
- Kev tswj qhov ncaj: Tsawg dua lossis sib npaug li 0.5 hli / m (qib precision)
5. Tube kawg & kev sib txuas Customization
- Precision txiav / deburred / chamfered xaus; flaring, expansion & txo qhov xaus
- Threaded / welded / flanged interfaces (DIN, JIC, ORFS, SAE tshaj)
- OEM kev cai interfaces, ceev connectors & laser npav traceability
Peb Daim Ntawv Pov Thawj
IATF 16949: 2016
ISO 9001: 2015
Environmental Management System Certificate
Cov khoom lag luam ntsig txog
FAQ
01.Koj puas txhawb qhov ntau thiab tsawg?
02.Cov ntawv thov dab tsi ua koj cov hlau tsis muaj steel hlau ua haujlwm hauv kev tsim kho tshuab?
03.Qhov kev kho deg twg muaj rau engineering machinery tubing?
04.Cov ntaub ntawv dab tsi muaj?
05.Dab tsi yog qhov ua tiav qhov tseeb?
06.Stainless steel kav yog nquag khawb thiab corrosion thaum lub sij hawm ntev -kev thauj mus los hauv hiav txwv; koj ntim lawv li cas?
