Khoom Description

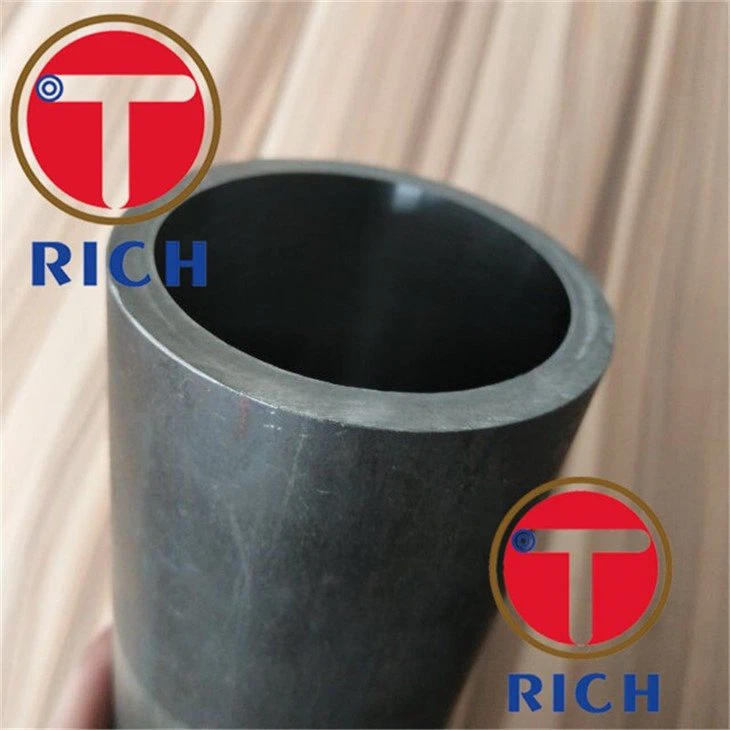

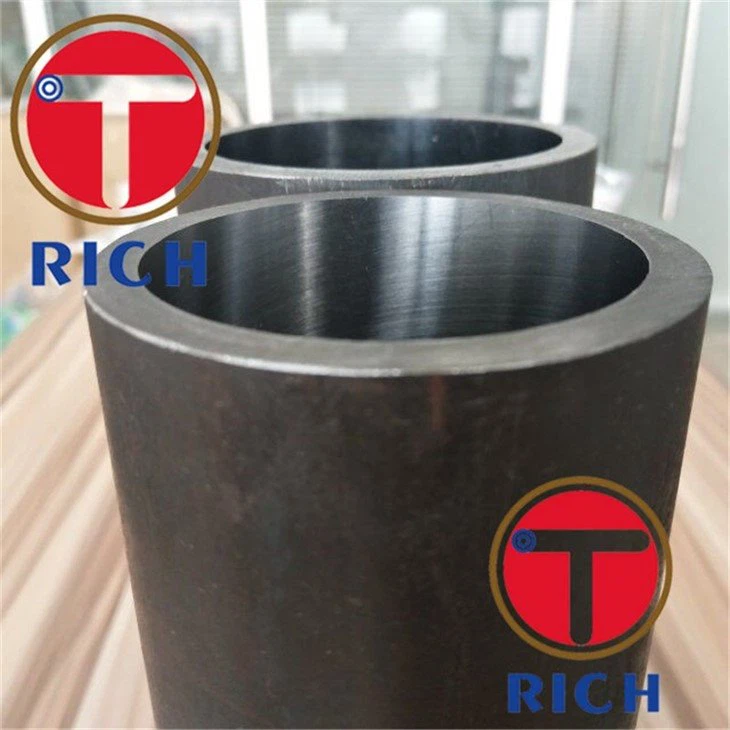

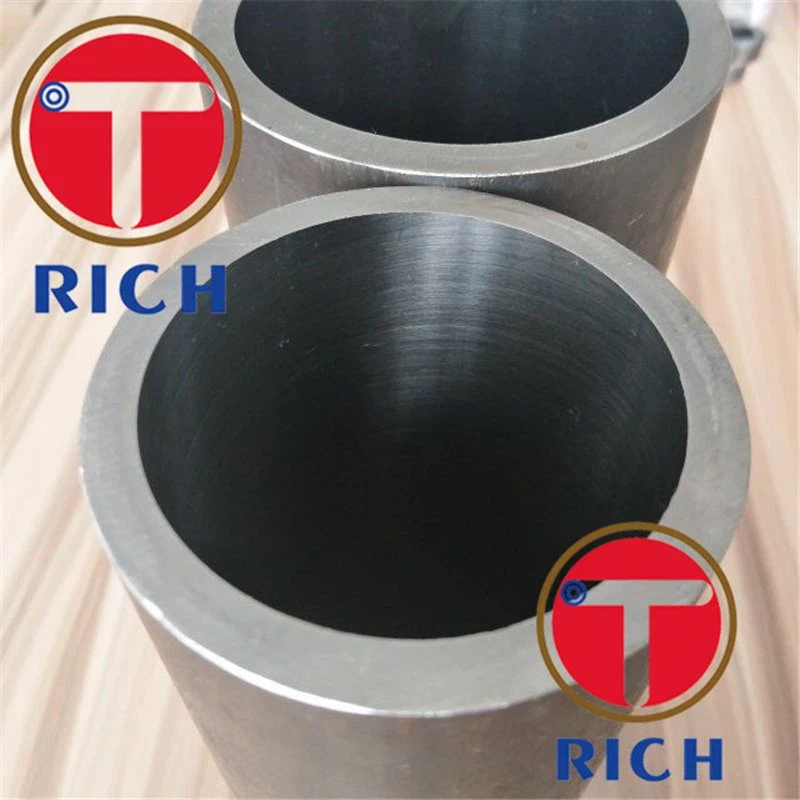

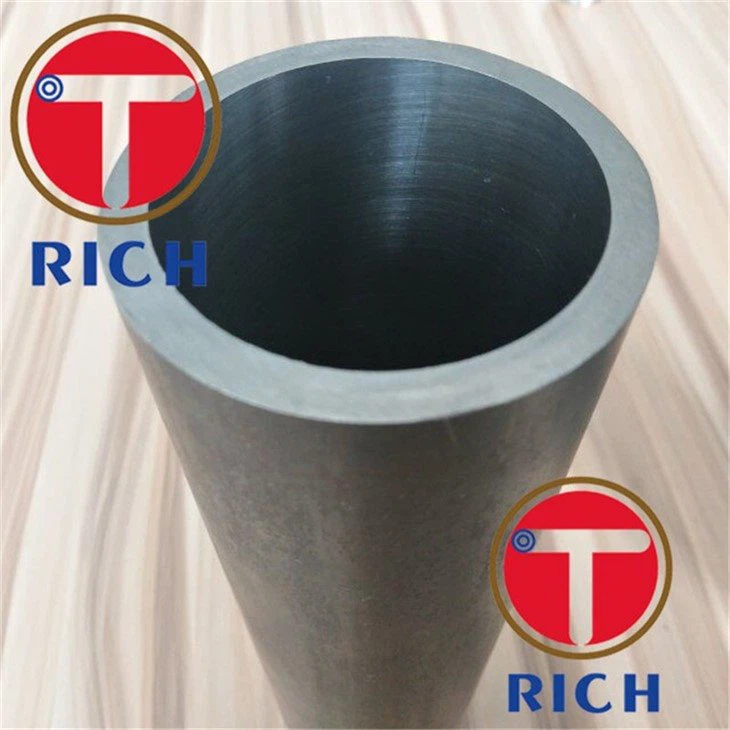

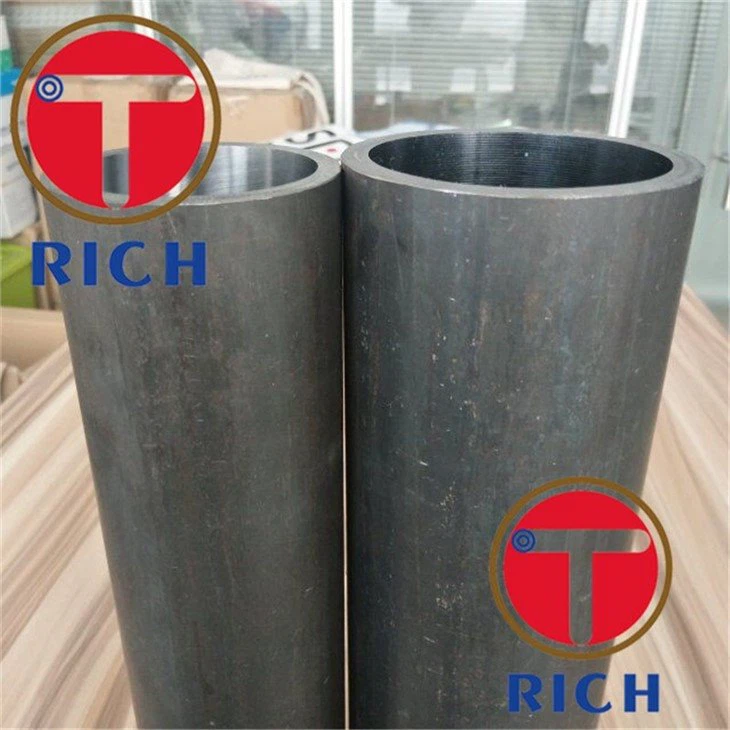

High Strength Precision Steel Tube Rau Pneumatic Lub tog raj kheej
Qhov zoo ntawm E355 cov khoom siv rau lub tog raj kheej
- Lub zog tawm los siab, siab tsis kam: yam tsawg kawg nkaus lub zog muaj zog ntau dua lossis sib npaug ntawm 355 MPa, tuaj yeem tiv taus siab dua hauv cov pa roj thiab cov dynamic loads yam tsis muaj deformation, haum rau hnyav -lub luag haujlwm lossis siab - voj voog pneumatic actuators.
- Qhov zoo ntawm qhov raug: muab nyob rau hauv daim ntawv txias - kos precision seamless steel raj (EN 10305-1), nrog meej thiab nruj OD / ID tolerances, uas tuaj yeem ua kom piston foob kev ncaj ncees, txo cov pa tawm, thiab xyuas kom meej piston txav.
- Zoo weldability thiab machinability: tsis yog - alloy steel, yooj yim rau vuam los yog tshuab, yooj yim rau hloov, kais, thiab integrate kev cai accessories.
Cov cheeb tsam thov
- Pneumatic lub tog raj kheej chim thiab lub tes tsho
- Muaj automation thiab robotics
- Ntim thiab sib dhos kab machinery
- Actuator Cheebtsam
- Lub teeb hydraulic systems
- Linear motion thiab coj cov raj
Tshuaj muaj pes tsawg leeg
| Qib | C | Mn | P (max) | S (max) | Si |
| E235 | Tsawg dua lossis sib npaug li 0.17 | 0.35–0.70 | Tsawg dua lossis sib npaug li 0.025 | Tsawg dua lossis sib npaug li 0.025 | Tsawg dua los yog sib npaug li 0.35 |
| E275 | Tsawg dua lossis sib npaug li 0.21 | 0.30–0.70 | Tsawg dua lossis sib npaug li 0.025 | Tsawg dua lossis sib npaug li 0.025 | Tsawg dua los yog sib npaug li 0.35 |
| E355 | Tsawg dua lossis sib npaug li 0.22 | 0.50–1.20 | Tsawg dua lossis sib npaug li 0.025 | Tsawg dua lossis sib npaug li 0.025 | Tsawg dua los yog sib npaug li 0.55 |
Mechanical Properties
| Qib | Yield zog (MPa) | Tensile zog (MPa) | Elongation A (%) |
| E235 | Ntau dua lossis sib npaug rau 235 | 340–520 | Ntau dua lossis sib npaug li 25 |
| E275 | Ntau dua lossis sib npaug li 275 | 410–580 | Ntau dua lossis sib npaug li 21 |
| E355 | Ntau dua lossis sib npaug rau 355 | 490–630 | Ntau dua lossis sib npaug 22 |
Cov qhab nia xaiv tau
Thaum ST 52 yog cov qib steel feem ntau siv rau lub zog siab precision steel raj, muaj lwm cov qib uas yuav haum rau cov kev xav tau tshwj xeeb. Qee cov qhab nia ua tau muaj xws li:
- TSI 37
- TSI 44
- TSI 45
- ST 50
-
TSI 60
Cov qhab nia hloov pauv no muaj cov khoom siv sib txawv thiab tshuaj lom neeg, thiab lawv qhov kev tsim nyog nyob ntawm cov ntawv thov tshwj xeeb thiab kev ua tau zoo.
Ntim
Thaum cov kav dej tau dhau tag nrho cov kev tshuaj xyuas thiab kev sim, lawv npaj txhij rau ntim. Lawv feem ntau yog ntim rau hauv bales qhwv hauv yas. Cov kav dej tuaj yeem muab ntim thiab npaj rau kev xa khoom raws li cov neeg siv khoom xav tau, kom ntseeg tau tias cov kav dej muaj kev tiv thaiv thaum lub sijhawm thauj mus los thiab tiv thaiv qhov chaw puas.
Khoom Qhia
Cim npe nrov: siab zog precision steel raj rau pneumatic lub tog raj kheej, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, nqe, OEM, zeb, tsim, kev muag khoom
