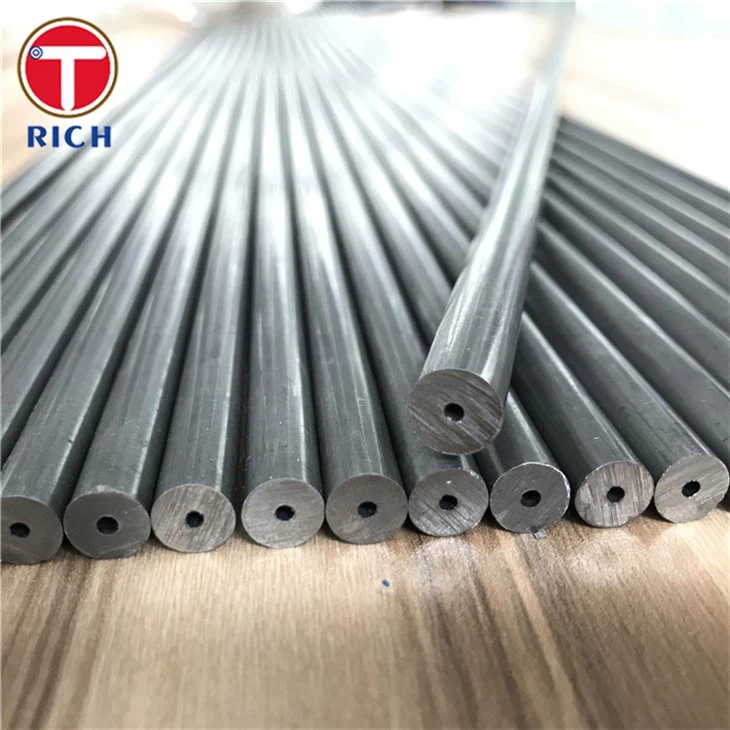

Khoom Description
Chromoly Steel Tubing yog tsim los ntawm siab- cov ntaub ntawv zoo, suav nrog 4130 thiab 4140. AISI 4130 thiab AISI 4140 yog cov chromium feem ntau siv- qib molybdenum steel hauv kev siv tshuab engineering.
Peb 4130 chromium-molybdenum hlab yog forged ntawm qhov kub thiab txias ntawm 950℃thiab 1230 degree, nthuav tawm cov khoom zoo heev ntawm ob chav tsev thiab qhov kub siab. Lawv kuj muaj cov ntsiab lus carbon tsawg, ua rau lawv yooj yim rau vuam, thiab ua haujlwm zoo heev, yooj yim khoov, vuam, drilling, thiab lwm yam.
4140 muaj cov machinability tsis zoo thiab weldability, yuav tsum tau preheating ua ntej vuam thiab kev kho cua sov tom qab vuam. Txawm li cas los xij, 4140 muaj qhov ua tau zoo tshaj - qhov kub thiab txias, tseem tsis tau tawg rau 2000 teev ntawm 600℃.
Khoom Specifications
| Cov qauv | ASTM A519 Cov Lus Qhia Tshwj Xeeb |
| Qib Steel | 1010 1012 1015 1016 1017 1018 1019 1020 1021 1022 1025 1026 1030 1035 1040 1045 1050 1518 1524 1541 1330 4130 4137 4140 |
| Cov qauv sib npaug | EN 10297-1 25CrMo4 / 34CrMo4 / 42CrMo4; DIN 1.7218 / 1.7225; JIS SCM415 / SCM420; GB 30CrMo / 42CrMo |
| Sab nraud Diameter (OD) | 6mm - 323mm (0.24 nyob rau hauv - 12.7 nyob rau hauv) |
| Phab ntsa Thickness (WT) | 1mm-40mm (0.04-1.57 nyob rau hauv) |
| Ntev | 4-12 m, los yog customizable |
| Kev kho saum npoo | Dub nto |
| Txheej txheem ntau lawm | Txias Drawn |
| Qhov xwm txheej | Annealed, Normalized, Quenched & Tempered (Q&T), Stress Relieved |
Customized Services
- TORICH txhawb cov kev pab cuam kho kom haum xeeb thiab tsis muaj - tus qauv kev cai loj. Peb muab qhov ntev - txiav cov kev pabcuam nrog qhov yuam kev ntawm ± 1mm.
- Peb muab V-zoo li tus, U-zoo li tus, thiab X-zoo li tus beveling thiab dabtsi yog khoov kev pab cuam; rau hydraulic Cheebtsam, peb txhawb flaring thiab necking.
- Peb muab cov kev kho mob saum npoo xws li cov xim dub, pickling, oiling, phosphating, sandblasting, thiab xeb-cov ntaub ntawv pov thawj, thiab tuaj yeem ua haujlwm hauv honing.
Tshuaj muaj pes tsawg leeg
| Qib | C (%) | Mn (%) | P (%) Max | S (%) Max | Si (%) | Cr (%) | Mo (%) |
| 4130 | 0.28–0.33 | 0.40–0.60 | 0.035 | 0.040 | 0.15–0.35 | 0.80–1.10 | 0.15–0.25 |
| 4140 | 0.38–0.43 | 0.75–1.00 | 0.035 | 0.040 | 0.15–0.35 | 0.80–1.10 | 0.15–0.25 |
Mechanical Properties
| Khoom | Qhov xwm txheej | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) | Hardness (HB) |
| 4130 | Li qub | 560–670 | Ntau dua lossis sib npaug rau 460 | Ntau dua lossis sib npaug li 21 | 143–197 |
| 4140 | Q&T | 850–1000 | Ntau dua lossis sib npaug rau 655 | Ntau dua lossis sib npaug li 18 | 197–255 |
Cov qhab nia xaiv tau
- 20CrMo yog ib qho qis- alloy chromium-molybdenum steel nrog tus nqi kom zoo dua. Nws yog feem ntau siv nyob rau hauv kev tsim kho machinery, automotive kis tau tus mob Cheebtsam, thiab hnyav khoom qhov chaw.
- 25CrMo4 yog qib sib npaug rau 4130, muab lub zog zoo sib xws thiab weldability. Nws feem ntau yog siv los tsim cov ncej, lub zog, thiab lwm yam uas raug kev nyuaj siab thiab hnav.
- Rau cov ntawv thov uas tsis tas yuav muaj zog ntau dhau, AISI 1026 yog qhov kev xaiv tsim nyog. Nws yog tus nqi - ua tau zoo, thiab nws qhov hardness thiab hnav tsis kam tuaj yeem txhim kho los ntawm cov txheej txheem quenching, ua rau nws tsim nyog rau kev siv tshuab.
thaj chaw thov
4130 thiab 4140 yog cov khoom siv dav tshaj plaws hauv kev ua haujlwm engineering.
Ntawm lawv, 4130 steel yog qhov tsim nyog rau cov khoom siv hauv engineering machinery thiab thav duab ntawm kev ua liaj ua teb engineering machinery vim nws cov kev ua tau zoo.
4140 feem ntau yog siv los tsim cov tshuab hnyav, suav nrog lub tog raj kheej hydraulic, chais, ncej, pins, thiab ntau yam khoom siv.
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
Peb muab ntau yam kev xaiv ntim khoom, suav nrog cov kaus mom yas kawg, hnab woven, ntoo crates, thiab hlau thav ntawv. Kev cai ntim cov kev daws teeb meem, logo branding, thiab lwm yam kev xav tau ntawm tus kheej kuj muaj los ua kom tau raws li cov neeg siv khoom xav tau.
FAQ
Q: Cov hlau twg muaj zog dua, 4130 lossis 4140?
A: Feem ntau, 4140 muaj zog dua . 4140 muaj cov ntsiab lus carbon ntawm 0.38-0.43%, siab dua 4130's 0.28-0.33%. Tom qab tempering, 4140 feem ntau nthuav tawm cov tensile siab dua thiab cov khoom muaj zog tshaj 4130, ua rau nws tsim nyog rau cov khoom uas dais siab.
Q: Ntawm excavators, qhov twg yog qhov haum rau 4130 thiab qhov twg rau 4140?
A: Tsis yog -thawj thauj khoom- cov khoom siv, xws li hydraulic hose txhawb nqa thiab cov khoom siv me me, tuaj yeem siv 4130 steel, thaum thawj qhov kev thauj khoom -cov kabmob cov khoom siv xws li excavator lub boom thiab caj npab xav tau 4140.
Q: Cov kev lag luam twg feem ntau siv ASTM A519 chromium-molybdenum steel yeeb nkab?
A: Feem ntau siv rau hauv kev tsim tsheb, cov khoom siv aerospace, tsuas thiab cov tshuab drilling, thiab kev tsim khoom siv tshuab.
