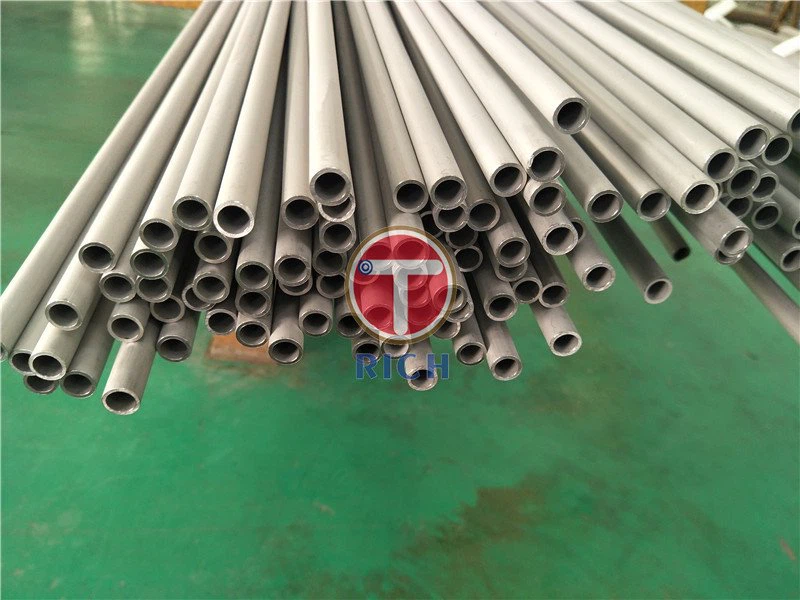

B729 Uns N08020 Duplex 2205 Tube

Peb cov khoom muaj nyob rau hauv ASTM B729 UNS N08020 thiab ASTM A790 2205 qib. UNS N08020, tseem hu ua Alloy 20, yog npib tsib xee - hlau-chromium austenitic stainless hlau alloy tsim rau siab tshaj plaws tiv thaiv sulfuric acid nres. Nws muaj kev tiv thaiv zoo heev rau pitting, crevice corrosion, thiab kev ntxhov siab corrosion cracking nyob rau hauv cov tshuaj lom neeg nruj heev. Duplex 2205 yog ib qho ferritic{11}}austenitic stainless hlau uas ua ke nrog lub zog siab nrog kev ua haujlwm zoo heev rau chloride kev nyuaj siab corrosion tawg thiab pitting. Nws lub zog tawm los yog kwv yees li ob npaug ntawm cov pa austenitic stainless hlau thiab yog siv dav hauv marine thiab offshore daim ntaub ntawv.
Sab nraud txoj kab uas hla: 5mm-420mm (customizable)
Phab ntsa Thickness: 0.5mm-55mm (Customizable)
Ntev: tuaj yeem kho raws li qhov kev thov
Hlau Qib: ASTM B729 UNS N08020 (Alloy 20), ASTM A790 Duplex 2205 (S32205 / S31803)

Khoom Description

B729 Uns N08020 A790 Duplex 2205 Tube

Qhov zoo ntawm B729 Uns N08020 A790 Duplex 2205 Tube

ASTM B729 UNS N08020 Cov Lus Qhia Tshwj Xeeb(Alloy 20): Tsim los rau acidic ib puag ncig (tshwj xeeb tshaj yog sulfuric acid), nws yog qhov kev xaiv thaum qaub corrosion kuj tseem ceeb tshaj qhov muaj zog txhua yam. Nws yog dav siv nyob rau hauv tshuaj thiab petrochemical cov nroj tsuag, reactors, tshav kub exchangers, cia tank, thiab piping systems raug rau cov acids muaj zog.
ASTM A790 Duplex 2205(S32205/S31803): Tsim los rau chloride- thaj chaw nplua nuj (xws li dej hiav txwv, brine, thiab cov kua dej ua haujlwm), nws yog qhov kev xaiv thaum muaj zog thiab tsis kam rau cov tshuaj chloride-yuav tsum tau muaj kev ntxhov siab corrosion cracking. Nws yog siv nyob rau hauv offshore roj thiab roj, desalination, marine engineering, pulp thiab ntawv, thiab structural piping.

Daim ntawv thov ntawm B729 Uns N08020 A790 Duplex 2205 Tube

UNS N08020 (Alloy 20):Sulfuric acid cov nroj tsuag, tshuaj ua haujlwm, kub exchangers, reactors, khoom siv tshuaj.
Duplex 2205:Offshore roj & roj piping, desalination nroj tsuag, seawater tuav, tshuaj txheej txheem kab, pulp & ntawv digesters, marine engineering.

Tshuaj muaj pes tsawg leeg

Element	Cov pa roj carbon	Manganese	Silicon	Phosphorus	Sulfur	Chromium	Nickel	Molybdenum	Tooj	Nitrogen
UNS N08020	0.07	2.0	1.0	0.045	0.035	19–21	32–38	2–3	3–4	–
TIAB SA 2205	0.03	2.0	1.0	0.03	0.02	21–23	4.5–6.5	2.5–3.5	–	0.14–0.20

Mechanical Properties

Khoom	Tensile zog (MPa)	Lub zog muaj zog (MPa, 0.2%)	Elongation (%)	Hardness (HB)
UNS N08020	Ntau dua lossis sib npaug rau 620	Ntau dua lossis sib npaug li 300	Ntau tshaj los yog sib npaug rau 30	Tsawg dua los yog sib npaug li 225
TIAB SA 2205	Ntau dua lossis sib npaug rau 655	Ntau dua lossis sib npaug li 450	Ntau dua lossis sib npaug li 25	Tsawg dua lossis sib npaug li 290

Cov qhab nia xaiv tau

Super Duplex Stainless Hlau (S32750 / S32760):Rau siab dua chloride thiab seawater kuj.
Austenitic Stainless hlau (316L, 317L):Rau nruab nrab corrosion ib puag ncig nrog qis zog yuav tsum tau.
Nickel Alloys (Alloy 625, C-276):Rau qhov hnyav heev, acidic heev, lossis txo cov mob.
Lean Duplex (S32101, S32304):Rau tus nqi- cov haujlwm tseem ceeb uas xav tau lub zog nruab nrab thiab kev tiv thaiv corrosion.

Khoom Qhia

Cov khoom siv

steeltube-applications

Cov khoom ntim

stainless steel pipe package.jpg

Cim npe nrov: b729 uns n08020 duplex 2205 raj, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, nqe, OEM, zeb, tsim, kev muag khoom
