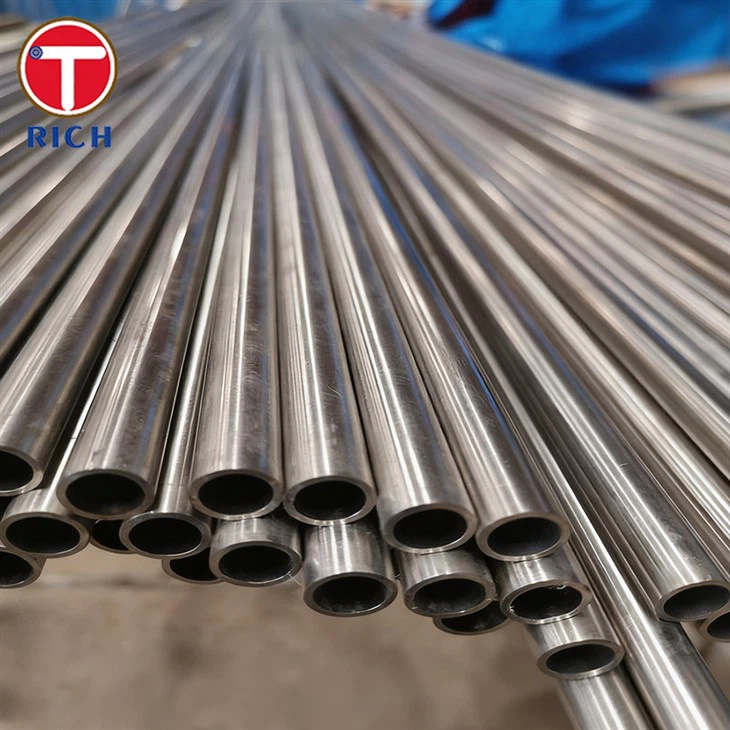

Khoom Description
Khoom Specifications
| Cov qauv |
ASTM A269 / ASME SA269 |
| Qib Steel | TP201 TP201LN TP304 TP304L TP304LN TP316 TP316L TP316LN TP317 TP321 TP347 TP348 TPXM10 TPXM11 TPXM15 TPXM19 TPcM29 |
| Cov qauv sib npaug |
JIS G3459 / EN 10216-5 / DIN 2391 |
| Sab nraud Diameter (OD) | 3mm-25.4 hli |
| Phab ntsa Thickness (WT) | 0.3mm-3 hli |
| Ntev | 6 / 12 m |
| Kev kho saum npoo | Bright Annealed (BA) |
| Txheej txheem ntau lawm | Cold Drawn / Txias Rolled |
| Qhov xwm txheej | Kev daws Annealed |
Muab piv rau cov pa roj carbon steel hydraulic tubing, TORICH me me txoj kab uas hla steel tubing -tsim los ntawm 304/316L stainless hlau- muaj kev tiv thaiv corrosion thiab noo noo thiab tiv taus kev puas tsuaj los ntawm cov kua dej hydraulic. Lub puab nto roughness yog tswj rau Ra Tsawg dua los yog sib npaug rau 0.8 µm, txo qhov ntws tsis kam thiab particle adhesion.
Hydraulic systems xav kom meej qhov ntev; peb ASTM A269 me me txoj kab uas hla steel tubing nta nruj tolerances -ib txoj kab uas hla nyob rau hauv ± 0.05 hli, ib phab ntsa thickness kam rau ua ntawm ± 10%, thiab roundness sib txawv tsawg tshaj li los yog sib npaug rau 0.03 hli - xyuas kom meej haum nrog cov qauv compression fittings los ntawm hom xws li Parker.
Customized Services
- TORICH txhawb kev hloov kho ntawm qhov tsis yog -txheej txheej diameters thiab phab ntsa thicknesses, muab cov kev qhia tshwj xeeb xws li qhov tsawg kawg nkaus sab nraud ntawm 1.0 hli (capillary loj) mus rau qhov tsawg kawg nkaus phab ntsa thickness ntawm 0.2 hli. Cov khoom no yog tsim rau hydraulic tswj kab thiab precision kua tshuab.
- Peb muab ntau yam kev kho deg, suav nrog kev ci ntsa iab (Ra Tsawg dua lossis sib npaug ntawm 0.8 μm), pickling thiab passivation, mechanical polishing (Ra Tsawg dua lossis sib npaug rau 0.4 μm), thiab electropolishing (Ra Tsawg dua lossis sib npaug rau 0.2 μm).
- TORICH tseem muab ntau yam kawg -kev pabcuam kev npaj- suav nrog chamfering (1 × 45℃sab hauv thiab sab nraud), txiav txiav, flaring, flanging, threading, thiab ua ntej-kev sib dhos ntawm welded fittings-tag nrho cov uas muaj kev deburring thiab tu.
Tshuaj muaj pes tsawg leeg
| Element | C (max) | Mn (max) | Si (max) | P (max) | S (max) | Cr (%) | Tsis muaj (%) | Mo (%) |
| TIAB SA 304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–11.0 | - |
| TP 316 L | 0.035 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| TIAB SA 321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | - |
Mechanical Properties
| Khoom | Tensile zog (min) | Yield zog 0.2% (min) | Elongation (min) | Hardness (max) |
| Kev xav tau | 515 MPa (75 ksi) | 205 MPa (30 ksi) | 35% | 90 PAB |
Cov qhab nia xaiv tau
- Rau cov hydraulic auxiliary los yog xa rov qab kab tsis raug rau siab concentrations ntawm chlorides, TP304/304L yog ib tug haum xaiv; nws yog tus nqi ntau dua - zoo dua 316L thiab muaj kev tiv thaiv rau dej -glycol hluav taws- tiv taus cov kua dej hydraulic thiab cov roj ntxhia hauv cov pa.
- Yog tias qhov nruab nrab hydraulic muaj cov ntsev hiav txwv ntsev lossis cov tshuaj corrosive heev, 904L (UNS N08904) lossis duplex stainless hlau 2205 (UNS S32205) tuaj yeem xaiv; 904L muaj kev tiv thaiv corrosion zoo dua, thaum 2205 muaj lub zog tawm los ntau dua ob npaug ntawm 316L, tso cai rau nws tiv taus cov kev kub ntxhov tib yam nrog cov phab ntsa nyias nyias.
thaj chaw thov
Tubing yog tsim rau kev tswj, kis tau tus mob, thiab lubrication circuits nyob rau hauv ntau hom hydraulic khoom, tshwj xeeb tshaj yog:
- Muaj hydraulic zog thiab actuation systems: hydraulic twj tso kua mis chaw nres tsheb thiab valve thaiv cov rooj sib txoos, hydraulic lub tog raj kheej txuas kab, thiab accumulator thiab txias piping
- Kev tsim kho txawb thiab tshuab ua liaj ua teb: hydraulic steering thiab braking systems, lubrication kab, thiab outrigger tswj kab
- Marine hydraulic systems: hydraulic tswj kav rau lub kauj iav, thauj tog rau nkoj winches, thiab hatch npog
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
FAQ
Q: Dab tsi yog qhov txawv ntawm BA thiab AP tubing? Hom twg yog siv rau cov tshuab hydraulic?
A: BA (Bright Annealed) tubing nta lub ci ci -annealed tiav nrog rau sab hauv roughness (Ra) tsawg dua lossis sib npaug li 0.8 μm thiab kev huv siab; nws yog tus qauv xa khoom specification rau hydraulic thiab instrumentation tubing. AP (Acid Pickled) tubing undergoes acid pickling thiab passivation, ua rau matte grey-dawb nto; thaum nws muaj qhov zoo dua corrosion kuj, nws muaj ntau dua qhov roughness. BA tubing yog qhov kev xaiv zoo tshaj plaws rau cov tshuab hydraulic, qhov AP tubing feem ntau yog siv rau loj - txoj kab uas hla chemical piping.
Q: Kuv xav tau ib qho chaw huv huv heev; koj puas muab kev pab tu cov pa oxygen?
A: Yog, peb yeej ua tau. Peb muab cov txheej txheem ntxuav "roj- thiab roj- dawb" tsim los rau siab - purity hydraulic xov xwm, muaj peev xwm ua tiav qib siab huv uas tau teev tseg los ntawm ISO 4406, ua raws li kev sib khi nrog cov cua sov- kaw lub hau lossis cov kaus mom tshwj xeeb kawg.
Q: Kuv puas yuav tsum xaiv TP304 lossis TP316L rau cov tshuab hydraulic?
A: TP304/304L yog haum rau cov ntawv thov uas muaj cov qauv ntxhia hydraulic roj, compressed cua, los yog qhuav nyob rau hauv ib puag ncig. TP316L yuav tsum raug xaiv rau ib puag ncig uas raug dej hiav txwv, dej demineralized, chloride-muaj cov xov xwm, cov huab cua hauv hiav txwv, lossis cov tshuaj lom neeg.
