Khoom Description
Peb Qhov Zoo
1. Muaj zog corrosion kuj

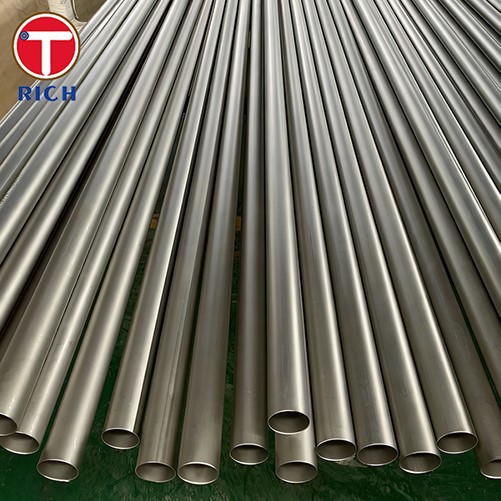

- Peb Titanium Heat Exchanger Tubes khav theeb zoo heev corrosion kuj. Titanium naturally forms a dense titanium dioxide passivation film, allowing for immediate self-repair upon damage.
- Peb cov raj yog tsim los ntawm siab -cov ntaub ntawv zoo titanium alloy raw cov ntaub ntawv, ua raws cov tshuaj lom neeg muaj pes tsawg leeg. Cov ntsiab lus ntawm oxygen, nitrogen, hydrogen, thiab hlau yog nruj me ntsis tswj thaum lub sij hawm smelting txheej txheem los tiv thaiv interstitial paug.
2. Kev hloov hluav taws xob siab
- Titanium muaj cov thermal conductivity ntawm 16 mus rau 18 W / m·K, piv rau stainless hlau, txhim kho tag nrho cov kev ua tau zoo ntawm lub tshav kub exchanger.
- Peb cov hlab ntsha tau txais kev khaws cia, kev ua haujlwm, thiab polishing, ua rau muaj kev sib kis -dawb, zoo heev nto uas txo cov dej sib txhuam thiab txhim kho cov cua sov.
3. Kev nruj nruj
- Peb Titanium Heat Exchanger Tubes yog tsim los siv precision txias txias, precision straightening, thiab nruj soj ntsuam xyuas kom muaj ib tug zoo meej daim ntawv cog lus ntawm lub raj thiab lub raj ntawv, tshem tawm cov kev pheej hmoo ntawm to.
- Txhua lub raj tau kuaj xyuas ultrasonic thiab eddy tam sim no, nrog rau kev kuaj xyuas qhov ntev laser, kom ua tau raws li ASTM B338 cov qauv lossis cov neeg siv khoom xav tau.
4. Kev Pabcuam Mekas
- TORICH boasts ib pab neeg ua haujlwm tshwj xeeb muab cov yeeb nkab haum rau kev daws teeb meem. Peb muab kev kho qhov ntev, cov khoom siv, tshuab polishing, ci annealing, anti- fouling coatings, thiab lwm yam kev kho deg, nrog rau cov yeeb nkab kawg ua, khoov, thiab U- khoov cov kev pab cuam.
- Peb muab kev pabcuam OEM thiab ODM, txhawb nqa kev kos duab, thiab muab kev pabcuam tsim thiab tsim kho. Peb kuj muab ntoo crates, bundling ntim, thiab customized daim ntawv lo.
thaj chaw thov
- Plhaub thiab raj kub exchangers
- Marine condenser
- Seawater desalination nroj tsuag
- Cov khoom siv tshuaj
- Offshore cua txias systems
- Fais fab tuag coils
- High corrosive industrial cua sov tshuab
Tshuaj muaj pes tsawg leeg
| Element | Ti | O | C | N | H | Fe | Pd / Ni / Mo (yog muaj) |
|---|---|---|---|---|---|---|---|
| Gr.1 | Tshuav | 0.18 | 0.08 | 0.03 | 0.015 | 0.20 | - |
| Gr.2 | Tshuav | 0.25 | 0.08 | 0.03 | 0.015 | 0.30 | - |
| Gr.7 | Tshuav | 0.25 | 0.08 | 0.03 | 0.015 | 0.30 | PEB: 0.12–0.25 |
| Gr. 12 | Tshuav | 0.25 | 0.08 | 0.03 | 0.015 | 0.30 | Ni + Mo: 0.6–0.9 |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog 0.2% (MPa) | Elongation (%) | Hardness (HB) |
| Gr.1 | Ntau dua lossis sib npaug li 240 | Ntau dua lossis sib npaug li 170 | Ntau dua lossis sib npaug li 24 | Tsawg dua los yog sib npaug li 80 |
| Gr.2 | Ntau dua lossis sib npaug rau 345 | Ntau dua lossis sib npaug li 275 | Ntau tshaj los yog sib npaug rau 20 | Tsawg dua los yog sib npaug li 120 |
| Gr.7 | Ntau dua lossis sib npaug rau 345 | Ntau dua lossis sib npaug li 275 | Ntau tshaj los yog sib npaug rau 20 | Tsawg dua los yog sib npaug li 120 |
| Gr. 12 | Ntau dua lossis sib npaug rau 483 | Ntau dua lossis sib npaug rau 345 | Ntau dua lossis sib npaug li 18 | Tsawg dua los yog sib npaug li 160 |
Cov qhab nia xaiv tau
| Alternative Qib | Yog vim li cas |
| Ib 625 | Nws muaj kev tiv thaiv corrosion zoo heev hauv dej hiav txwv, siab -chloride, thiab oxidizing tej yam kev mob, ua rau nws haum rau siab - kub exchangers. |
| 254 SIB | Nws muaj qhov ua tau zoo heev rau pitting corrosion, piv rau qee cov nickel alloys, ua rau nws haum rau seawater desalination systems. |
| Hastelloy C276 | Nws muaj kev tiv thaiv zoo heev rau hauv cheeb tsam corrosion, ua rau nws haum rau cov cua sov exchangers hauv hnyav tshuaj thiab tshuaj industries. |
Khoom Qhia
Cov khoom siv kuaj
Eddy Tam sim no Flaw Detector
Hydraulic Universal Test tshuab
Intergranular Corrosion Tester
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom siv polishing
Cov khoom siv kos duab txias
Cov khoom ntim
