Khoom Description
Khoom Specifications
| Cov qauv | JIS G3446 |
| Qib Steel | SUS303, SUS304, SUS304L, SUS316L, SUS316L, SUS321, SUS347, SUS821L1, SUS323L, SUS329J1, SUS329J3L, SUS329J4L, SUS405, SUS430, SUS430 SUS436L, SUS444, SUS445J1, SUS403, SUS410, SUS416, SUS420J1, SUS420J2, SUS431, SUS440C, SUS630, SUS631 |
| Cov qauv sib npaug | ASTM A269, ASTM A554, EN 10217-7, DIN 17458 |
| Sab nraud Diameter (OD) | 6mm-89mm (0.24 "- 3.5") |
| Phab ntsa Thickness (WT) | 0.3 hli-6 hli (0.012 "- 0.24") |
| Ntev | 6/12, lossis customized |
| Kev kho saum npoo | Bright Annealed |
| Txheej txheem ntau lawm | ERW, tsis siv neeg TIG vuam |
| Qhov xwm txheej | Tshuaj annealed |

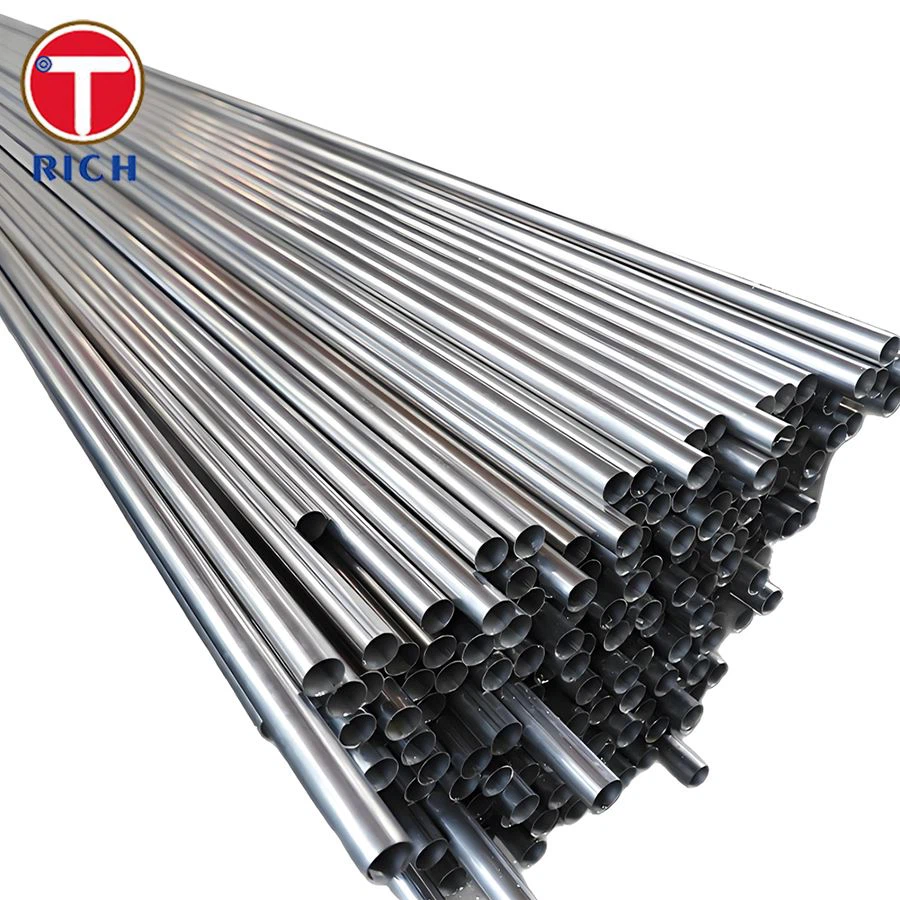

SUS304 stainless hlau welded yeeb nkab yog ib qho ntawm cov khoom siv dav siv ntau tshaj plaws, nthuav tawm kev tiv thaiv corrosion zoo nyob rau hauv ib puag ncig, xws li atmospheric tej yam kev mob thiab dej. Tsis tas li ntawd, nws muaj cov yam ntxwv ua tau zoo tshaj plaws, tso cai rau kev ua haujlwm txias ua haujlwm - xws li dabtsi yog khoov thiab sib sib zog nqus kos duab - ua rau nws zoo tagnrho rau kev tsim cov khoom precision nrog cov geometry nyuaj.
Cov yeeb nkab yog tsim los siv TIG vuam, siv cov roj argon nrog cov purity ntawm 99.99% lossis siab dua. This process creates a dense protective gas shield that effectively isolates the weld zone from oxygen, nitrogen, and other atmospheric gases, thereby minimizing the burn-off of alloying elements and preventing the formation of oxide films. Los ntawm kev tswj xyuas cov vuam tam sim no thiab nrawm, qhov sib cuam tshuam qhov kub thiab txias yog khaws cia ntawm tsawg dua lossis sib npaug li 150 degree, tiv thaiv kev cuam tshuam intergranular thiab thermal tawg. Lub resulting weld seams feature tsim zoo heev thiab tsis muaj qhov tsis xws luag xws li undercut los yog tsis tiav nkag.
Customized Services
- Cov neeg siv khoom tuaj yeem xaiv cov khoom tsim nyog raws li lawv cov kev ua haujlwm tshwj xeeb. Muaj cov ntaub ntawv qib rau stainless hlau welded kav xws li SUS303, SUS304, SUS304L, SUS316L, SUS321, SUS347, SUS821L1, SUS323L, SUS329J1, SUS329J3L, SUS329J40L, SUS, SUS430J1L, SUS436L, SUS444, SUS445J1, SUS403, SUS410, SUS416, SUS420J1, SUS420J2, SUS431, SUS440C, SUS630, SUS631, thiab lwm yam.
- Cov yeeb nkab kawg tuaj yeem ua rau chamfering thiab deburring, nrog rau qhov tshwj xeeb kawg - kev pabcuam xws li nthuav dav, txo, thiab xov. Peb kuj muab CNC machining cov kev pab cuam, xws li drilling, milling, tapping, threading, grooving, thiab lwm yam.
- Peb muab kev cai -ntev txiav cov kev pab cuam, nrog ntev raug tswj nyob rau hauv ± 0.5 hli.
Kev kho cua sov
Tshuaj muaj pes tsawg leeg
| Element | C | Si | Mn | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| SUS 304 | Tsawg dua lossis sib npaug li 0.08 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | 18.0 - 20.0 | 8.0 - 10.5 | - |
| SUS 316 | Tsawg dua lossis sib npaug li 0.08 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | 16.0 - 18.0 | 10.0 - 14.0 | 2.0 - 3.0 |
| SUS 430 | Tsawg dua lossis sib npaug li 0.12 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.040 | Tsawg dua lossis sib npaug li 0.030 | 16.0 - 18.0 | - | - |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog 0.2% (MPa) | Elongation (%) | Hardness (HB) |
| SUS 304 | Ntau dua lossis sib npaug li 520 | Ntau dua lossis sib npaug rau 205 | Ntau dua lossis sib npaug li 40 | Tsawg dua lossis sib npaug li 187 |
| SUS 316 | Ntau dua lossis sib npaug li 520 | Ntau dua lossis sib npaug rau 205 | Ntau dua lossis sib npaug li 40 | Tsawg dua lossis sib npaug li 187 |
| SUS 430 | Ntau dua lossis sib npaug li 450 | Ntau dua lossis sib npaug rau 205 | Ntau dua lossis sib npaug 22 | Tsawg dua lossis sib npaug li 183 |
Cov qhab nia xaiv tau
- Rau cov cuab yeej siv tshuab precision uas yuav tsum tau ua haujlwm vuam dav siv, SUS304L tuaj yeem siv tau, vim tias nws muaj cov ntsiab lus carbon tsawg tsawg dua lossis sib npaug li 0.03%.
- Rau precision kis tau tus mob Cheebtsam nyob rau hauv aerospace sector, raws li zoo raws li ib tug tseem ceeb load- bearing Cheebtsam nyob rau hauv high-kawg kho qhov muag instruments, SUS630 yog ib tug haum xaiv, muab siab zog, zoo heev corrosion kuj, thiab zoo machinability.
thaj chaw thov
JIS G3446 nyias-walled welded stainless hlau raj yog dav siv nyob rau hauv lub teb ntawm precision machinery- qhov twg nruj tolerances thiab du nto tiav yuav tsum tau - rau daim ntaub ntawv xws li shafts, tes tsho, bushings, thiab structural Cheebtsam; nyob rau hauv lub tsheb qhov chaw, nrog rau cov roj kab, sensor vaj tse, thiab tso pa Cheebtsam; thiab hauv hydraulic thiab pneumatic systems.
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
