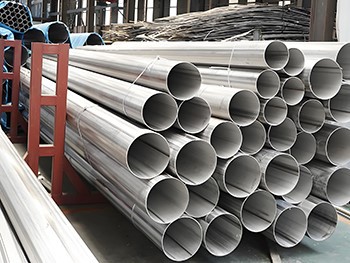

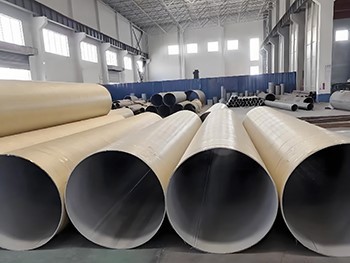

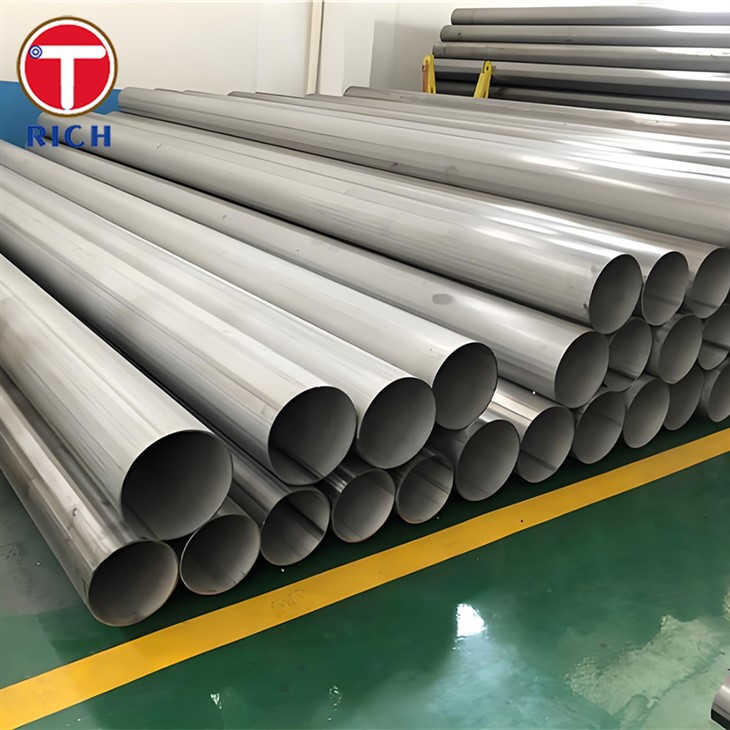

Dab tsi yog Stainless Hlau Welded Tube
Stainless hlau welded yeeb nkab yog ib hom tubing uas tsim los ntawm dov stainless hlau daim hlau los yog ib daim hlab rau hauv cov tubular zoo thiab tom qab ntawd koom nrog lawv siv cov txheej txheem vuam xws li TIG vuam lossis ntshav vuam. Nws cov yam ntxwv tseem ceeb suav nrog cov phab ntsa tuab, du sab hauv thiab sab nrauv, thiab muaj peev xwm tsim tau nyob rau hauv kev cai ntev raws li cov kev cai tshwj xeeb. Common classifications yog raws li nram no:
- Los ntawm Weld Type: Ncaj- seam welded yeeb nkab (feem ntau me me mus rau nruab nrab diameters; siab ntau lawm efficiency) thiab muab kauv welded yeeb nkab (feem ntau loj diameters; superior structural zog).
- Los ntawm Shape: Round yeeb nkab, square yeeb nkab, cov yeeb nkab square, thiab irregularly zoo li tus (profile) yeeb nkab.
- Los ntawm Khoom Qib: 304 (General corrosion resistance), 316L (ua haujlwm rau chloride ion corrosion), 310S (siab-kub tsis kam), thiab lwm yam.
Dab tsi steel yeeb qib qib peb muab?
TORICH muaj ntau yam khoom siv qib- suav nrog austenitic, ferritic, martensitic, thiab duplex stainless hlau, nrog rau npib tsib xee thiab cov alloys tshwj xeeb- uas tuaj yeem xaiv raws li qhov yuav tsum tau ua ntawm qhov project tshwj xeeb.
Cov hauv qab no yog cov feem ntau sivaustenitic stainless hlauwelded yeeb nkab qib, yam ntxwv zoo heev corrosion kuj, weldability, thiab formability.
| Qib Steel | Nta | Tej kev siv |
|---|---|---|
| 304 | General -lub hom phiaj stainless hlau nrog zoo corrosion kuj | Khoom noj khoom haus, kev tsim kho, kav dej |
| 304L | Tsawg carbon version ntawm 304, zoo weldability | Welded qauv, siab piping |
| 316 | Txhim kho corrosion kuj nrog molybdenum | Marine, tshuaj lom neeg kev lag luam |
| 316L | Tsawg carbon 316, zoo heev los tiv thaiv- kev ua haujlwm corrosion | Pharmaceutical, kev kho mob, offshore |
| 321 | Titanium stabilized, resistant rau intergranular corrosion | High - cov khoom siv kub |
| 310S | Zoo heev -kub oxidation kuj | Rauv, cov khoom siv kho cua sov |
| 347H | Niobium stabilized stainless hlau | Boilers, siab hlab ntsha |
Cov hauv qab no yog cov feem ntau sivferritic stainless hlau qib; lawv muab cov nqi qis dua thiab zoo oxidation tsis kam, thiab nquag siv hauv cov tshuab hluav taws xob hauv tsheb.
| Qib Steel | Nta | Tej kev siv |
|---|---|---|
| 409 | Ua haujlwm kub zoo thiab raug nqi -zoo | Automotive tso pa system |
| 410 | Siab zog thiab hnav tsis kam | Mechanical Cheebtsam |
| 430 | Kev kho kom zoo nkauj zoo nkauj | Hniav raj, khoom siv hauv chav ua noj |
| 439 | Txhim kho corrosion kuj tshaj 409 | Exhaust tubing, kub exchangers |
| 444 | Zoo heev pitting corrosion kuj | Cov cua kub cua sov, hnub ci tshuab |
Cov hauv qab no yog cov feem ntau sivduplex stainless hlau qib, uas muab cov txiaj ntsig zoo ntawm ob qho tib si austenitic thiab ferritic steels, muab lub zog siab thiab ua haujlwm zoo tshaj rau chloride-induced corrosion.
| Qib Steel | Nta | Tej kev siv |
|---|---|---|
| 2205 | Siab zog thiab zoo heev corrosion kuj | Roj & roj, desalination |
| 2507 | Super duplex stainless hlau | Offshore platforms, tshuaj nroj tsuag |
Cov hauv qab no yog cov feem ntau sivmartensitic stainless hlau qib, distinguished los ntawm lawv siab hardness thiab mechanical zog.
| Qib Steel | Nta | Tej kev siv |
|---|---|---|
| 420 | Siab hardness tom qab kev kho cua sov | Cov cuab yeej phais |
| 440C | Zoo heev hnav tsis kam | Bearings, cov cuab yeej txiav |
Cov hauv qab no yog cov feem ntau sivnickel alloys thiab qib tshwj xeeb stainless hlau, haum rau huab cua kev ua haujlwm.
| Qib Steel | Nta | Daim ntawv thov |
|---|---|---|
| 904L | Super corrosion kuj | Acid processing khoom |
| 254 SIB | Cov dej hiav txwv zoo heev | Marine engineering |
| Incoloy 800/800H | High -kub alloy | Kub exchangers |
| Hastelloy C276 | Cov tshuaj tiv thaiv zoo heev | Kev ua tshuaj lom neeg |
Khoom Specifications
| Cov qauv | ASTM A249, ASTM A269, ASTM A312, ASTM A554, EN 10217-7, JIS G3448, thiab lwm yam. |
| Qib Steel | 304, 304L, 316, 316L, 321, 310S, 409, 430, 2205, thiab lwm yam. |
|
Sab nraud txoj kab uas hla (OD) |
8mm - 1800mm, customizable |
| Phab ntsa Thickness (WT) | 0.5mm-55mm, customizable |
| Ntev | Max . 18 m lossis Customized |
| Tube Shapes | Round, Square, Rectangular, Oval, Capillary |
| Kev kho saum npoo | BA, 2B, No.4, HL, Daim iav Polish, Pickled |
| Txheej txheem ntau lawm | TIG Welded / Laser Welded / ERW Welded / HFW Welded |
| Daim ntawv pov thawj | ISO 9001, PED, EN 10204 3.1 MTC |
vim li cas xaiv peb
Kev tswj kom zoo
TORICH siv cov kev tswj xyuas nruj nruj thoob plaws hauv tag nrho cov txheej txheem tsim khoom, kom ntseeg tau tias cov kav dej ua tau raws li cov qauv thoob ntiaj teb xws li ASTM, JIS, DIN, thiab EN.
Muaj peev xwm ntau lawm
TORICH boasts cov kab tsim khoom niaj hnub no nrog lub peev xwm txhua xyoo ntawm 24,000 metric tons, ua kom muaj kev ruaj khov thiab xa khoom raws sij hawm rau cov haujlwm loj - nplai thiab ntev - cov ntawv cog lus.
Kev pabcuam customized
TORICH muaj cov kev pabcuam hloov kho tau yooj yim, suav nrog qhov ntau thiab tsawg, cov khoom siv, thiab cov duab tshwj xeeb. Tsis tas li ntawd, tus nqi - ntxiv cov kev pabcuam xws li kev txiav, khoov, thiab kev kho saum npoo kuj muaj.
Ntim
TORICH siv cov txheej txheem ntim khoom xws li cov kaus mom yas kawg, cov yeeb yaj kiab yas, cov hnab ntim khoom, cov thawv ntoo, thiab cov thav ntawv hlau los tiv thaiv kev puas tsuaj los yog kis kab mob ntawm cov kav dej thaum thauj.
peb cov khoom
Stainless hlau EFW Pipes
304 Stainless Hlau Square Tube
Hexagonal Tube
Stainless hlau Oval Exhaust Tubing
Stainless hlau Capillary Tube
316 Loj Diameter Stainless Hlau Yeeb Nkab
Yuav Ua Li Cas Ntxuav Cov Hlau Stainless Welded Pipes
Ua ntej, npaj ob qho tib si mos, zoo - ntaub so ntswg; cov ntaub so ntxuav kuj tseem siv tau.
Thaum xaiv lub tshuab ntxhua khaub ncaws stainless hlau, nws raug pom zoo kom yuav cov khoom tsim los ntawm cov chaw tsim khoom muaj npe, raug cai.
So saum npoo ntawm stainless hlau welded yeeb nkab huv si siv cov phuam mos; koj tuaj yeem siv cov phuam da dej me ntsis los so ntau zaus kom txog thaum tsis muaj cov cim pom nyob rau saum npoo.
Siv lub tshuab ntxhua khaub ncaws stainless hlau rau ib daim phuam, kom ntseeg tau tias nws sib npaug sib npaug, thiab tom qab ntawd so rov qab thiab tawm thoob plaws qhov chaw ntawm cov yeeb nkab stainless hlau welded.
Siv cov phuam huv, ntub dej los so hauv qhov chaw ntawm cov yeeb nkab stainless hlau, yog li tshem tawm cov ntxhua khaub ncaws thiab cov grime.
Cov txheej txheem ntawm Manufacturing Stainless Hlau Welded Tube
Rolling Thiab Welding Theem
Txhawm rau pib peb cov txheej txheem, peb thawj zaug yuav tsum mus dhau ntawm qhov dov thiab vuam theem. Cov hlau tsis muaj steel yog muab tso rau hauv cov txheej txheem kuaj xyuas thiab txiav ntawm cov npoo hauv theem no. Cov hlau tsis muaj hlau raug thawb los ntawm thiab morphed rau hauv nws qhov xav tau tubular loj nrog lub tshuab dov. Tom qab nias thiab tig los ntawm lub tshuab dov, cov npoo yog welded los ntawm cov txheej txheem cua sov hu ua TIG. Cov txheej txheem vuam koom nrog cov hlau dov ua ke siv lub tshuab hluav taws xob uas muaj qhov ua tau - hauv electrode.
Kev ntxuav thiab ua kom sov theem
Nyob rau theem no, cov raj steel yog lined rau ntawm tus fabricator thiab txiav mus rau qhov ntev yuav tsum tau ua ntej mus rau cov txheej txheem hauv qab no. Kev tu hauv theem no pab tshem tawm cov av ntawm cov kav dej, thiab tom qab ntawd ib zaug kho nrog cov cua sov, cov kav dej thiab cov kav dej tau muab tshem tawm ntawm txhua qhov kev ntxhov siab uas tuaj yeem tshwm sim hauv cov txheej txheem vuam thiab tsim. Kev kho cua sov muab rau stainless hlau welded raj yog ua tiav nrog lub cub tawg - lub cub tawg tau nruab nrog cov ntsuas kub thiab cov tswj, vim qhov no tuaj yeem pab tau zoo heev nrog kub thiab tswj txoj kev stainless hlau kho. Tom qab cua sov tiav lawm, lub stainless hlau welded raj yog coj los ntawm ib tug pickling ntu uas lawv nyob nraum ncaj tawm, thiab teev raug tshem tawm ntawm nws nto.
Txias-kos theem
Qee zaum, qhov yuav tsum tau muaj qhov loj me tsis tau thaum cov hlau raug coj los ntawm lub zeb ncaj qha. Thaum siv cov khaub thuas- txheej txheem kos duab, qhov xav tau loj yog ua tiav thaum cov kav dej thiab cov kav dej yog coated nrog oxalic thiab xab npum tov thiab rub hla cov ntsaws tuag- cov tshuaj oxalic thiab xab npum pab txo kev sib txhuam thaum mus txog lub voj voog txias.
Txheej txheem tiav
Cov txheej txheem kawg yog qhov ua tiav. Thaum cov txheej txheem ntawm kev tsim stainless hlau welded raj tiav, tam sim no koj yuav tsum coj lawv mus rau lub tshuab luam ntawv dav hlau. Cov raj raug coj los ntawm, ib qho los ntawm ib qho, thiab cim nrog lawv cov qib ntawm cov khoom, qhov loj me, tus naj npawb ntawm cov cua sov, thiab thib peb - tog soj ntsuam stamp ua ntej xa mus rau cov neeg xa khoom. Tom qab txhua yam yog engraved, cov kav dej raug coj los ntawm kev kuaj xyuas kom zoo thiab lwm yam kev kuaj xyuas. Thaum kawg, txhua yam tau ntim thiab xa tawm.

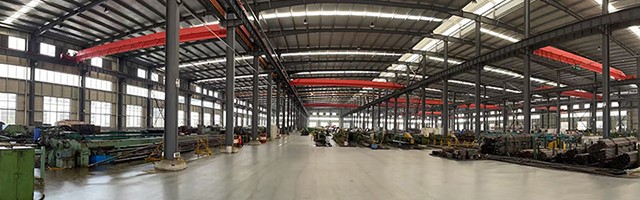

Peb lub Hoobkas & khoom siv
Peb Daim Ntawv Pov Thawj
Kev koom tes ntawm cov neeg siv khoom
FAQ
Q: Dab tsi yog stainless hlau welded raj siv rau?
Q: Stainless hlau welded raj puas siv tau rau 50 xyoo?
Q: Dab tsi yog qhov zoo tshaj plaws stainless hlau rau cov kav dej?
Q: Dab tsi stainless hlau welded raj yog qhov zoo tshaj plaws rau vuam?
Q: Dab tsi yog qhov txawv ntawm 304 thiab 316 SS stainless hlau welded raj?
Q: Puas yog 316L stainless hlau welded raj weldable?
Q: Koj tuaj yeem qhia tau li cas yog nws 316 lossis 304 stainless hlau welded raj?
Q: Dab tsi yog txoj hauv kev zoo tshaj plaws rau vuam stainless hlau yeeb nkab?
Q: Dab tsi polarity koj weld stainless hlau?
Q: Dab tsi yog cov txiaj ntsig ntawm stainless hlau tubing?
