Khoom Description
Peb Qhov Zoo
1. High Corrosion Resistance
- Peb Stainless Hlau Capillary Tubes yog ua los ntawm super stainless hlau nrog siab chromium, molybdenum, thiab nitrogen cov ntsiab lus, zoo tiv thaiv chloride pitting, crevice corrosion, thiab kev nyuaj siab corrosion cracking.
- Txhua lub raj TORICH tau txais kev ntsuam xyuas spectrometer los xyuas kom meej cov khoom raws li ASTM A789 cov qauv, txuas lub raj lub neej kev pab cuam nyob rau hauv hnyav ib puag ncig xws li offshore platforms, seawater systems, thiab tshuaj ua hauj lwm.
2. Qhov Loj Loj
- Peb cov hlab capillary yog tsim los siv ntau yam khaub thuas- txheej txheem kos duab, ua kom nruj sab nraud / sab hauv txoj kab uas hla ntawm ± 0.005 hli thiab cov phab ntsa tuab, ua rau lawv zoo tagnrho rau hydraulic tswj kab, cov cuab yeej kho mob, thiab siab - cov cuab yeej precision.
- Txhua batch ntawm TORICH capillary raj tau txais kev ntsuas qhov tseeb laser thiab siab - ntsuas qhov ntsuas qhov tseeb kom ntseeg tau tias qhov sib luag, ncaj, ovality, thiab tag nrho qhov sib xws.
3. Nto huv
- Peb cov hlab capillary undergo pickling thiab passivation kev kho mob ua raws li ultrasonic tu kom lub raj nto yog dawb ntawm residual roj, nplai, thiab hlau hais. Tsis tas li ntawd, sab hauv nto ua rau cov dej ntws polishing los xyuas kom meej qhov ua tiav, ua rau nws zoo tagnrho rau kev ntsuas piping.
- TORICH Stainless Steel Capillary Tubes raug kuaj xyuas qhov roughness, ua tiav qhov roughness txog li 0.005 μm, haum rau cov khoom siv kho mob thiab micro- cov ntawv thov.
4. Kev ua haujlwm siab zoo heev
- Piv rau austenitic stainless hlau, peb cov hlab capillary yog ua los ntawm siab - zoo duplex stainless hlau, muaj zog yield zog thiab tensile zog, yog li muaj peev xwm tiv taus siab sab hauv. Cov txheej txheem annealing ntxiv txhim kho lawv cov kev tiv thaiv rau hydraulic fracturing.
- Peb cov tubing tau dhau qhov kev sim hydrostatic thiab eddy tam sim no los xyuas kom tsis muaj qhov cuam tshuam los yog deformation, thiab lav cov phab ntsa tuab tsis muaj kab nrib pleb, pinholes, los yog suav nrog.
5. Ntim thiab Shipping
- Peb lub raj xa dej yog xa los siv cov kaus mom yas, yas zaj duab xis, hnab woven, thiab ntoo crates los tiv thaiv khawb thiab kis kab mob. Nws yog muab rau hauv daim ntawv ncaj los yog coiled.
- Peb txhawb nqa hiav txwv, av, thiab huab cua freight thiab muab cov qauv kev txhawb nqa. Txhawb cov dej noo- pov thawj thiab xeb- pov thawj ntim, kom ntseeg tau tias txhua lub pob muaj daim ntawv qhia meej thiab cov lej ua pov thawj.
thaj chaw thov
- Roj thiab Roj: Hydraulic tswj kav, tshuaj txhaj tshuaj pipelines, downhole xyuas tshuab, thiab lwm yam.
- Marine Engineering: Seawater kho tshuab, seawater desalination khoom, thiab lwm yam.
- Instrumentation thiab Control Systems: Cov kav dej ntsuas qhov siab, siab -precision flow thiab xyuas cov tshuab, thiab lwm yam.
- Tshuaj thiab Petrochemical: High-cov kav xa hluav taws xob, cov khoom siv hluav taws xob, thiab micro-piping rau cov khoom siv, thiab lwm yam.
Cov txheej txheem tsim khoom
Tshuaj muaj pes tsawg leeg
| Element | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Cr (%) | Tsis muaj (%) | Mo (%) | N (%) | Lwm tus |
|---|---|---|---|---|---|---|---|---|---|---|
| S32707 | Tsawg dua lossis sib npaug li 0.03 | Tsawg dua lossis sib npaug li 1.50 | Tsawg dua lossis sib npaug li 0.80 | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua lossis sib npaug li 0.020 | 26–29 | 6–9 | 3–4 | 0.4–0.6 | Cu, W yeem |
| S32750 (2507) | Tsawg dua lossis sib npaug li 0.03 | Tsawg dua lossis sib npaug rau 1.20 | Tsawg dua los yog sib npaug li 0.8 | Tsawg dua lossis sib npaug li 0.035 | Tsawg dua lossis sib npaug li 0.020 | 24–26 | 6–8 | 3–5 | 0.24–0.32 | - |
| S32760 | Tsawg dua lossis sib npaug li 0.03 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.80 | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua lossis sib npaug li 0.010 | 24–26 | 6–8 | 3–4 | 0.2–0.3 | W 0.5–1.0 |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog 0.2% (MPa) | Elongation (%) | Hardness (HB) |
| S32707 | Ntau tshaj los yog sib npaug rau 800 | Ntau dua lossis sib npaug li 550 | Ntau dua lossis sib npaug li 25 | Tsawg dua lossis sib npaug li 310 |
| S32750 | Ntau dua lossis sib npaug rau 795 | Ntau dua lossis sib npaug li 550 | Ntau dua lossis sib npaug li 25 | Tsawg dua lossis sib npaug li 310 |
| S32760 | Ntau dua lossis sib npaug li 750 | Ntau dua lossis sib npaug li 550 | Ntau dua lossis sib npaug li 25 | Tsawg dua lossis sib npaug li 310 |
Cov qhab nia xaiv tau
| Alternative Qib | Yog vim li cas |
| 316L / 316 Ti | Haum rau nruab nrab corrosive tej yam kev mob thiab dav precision tubing daim ntaub ntawv. |
| Alloy 254 SMO | Siab tsis kam rau pitting corrosion (PREN> 42), haum rau seawater, brine, thiab chloride - nplua nuj ib puag ncig. |
| Hastelloy C-276 | Kev tiv thaiv zoo heev rau cov kua qaub, chlorides, thiab txo qhov chaw; feem ntau siv rau hauv kev ua tshuaj lom neeg heev. |

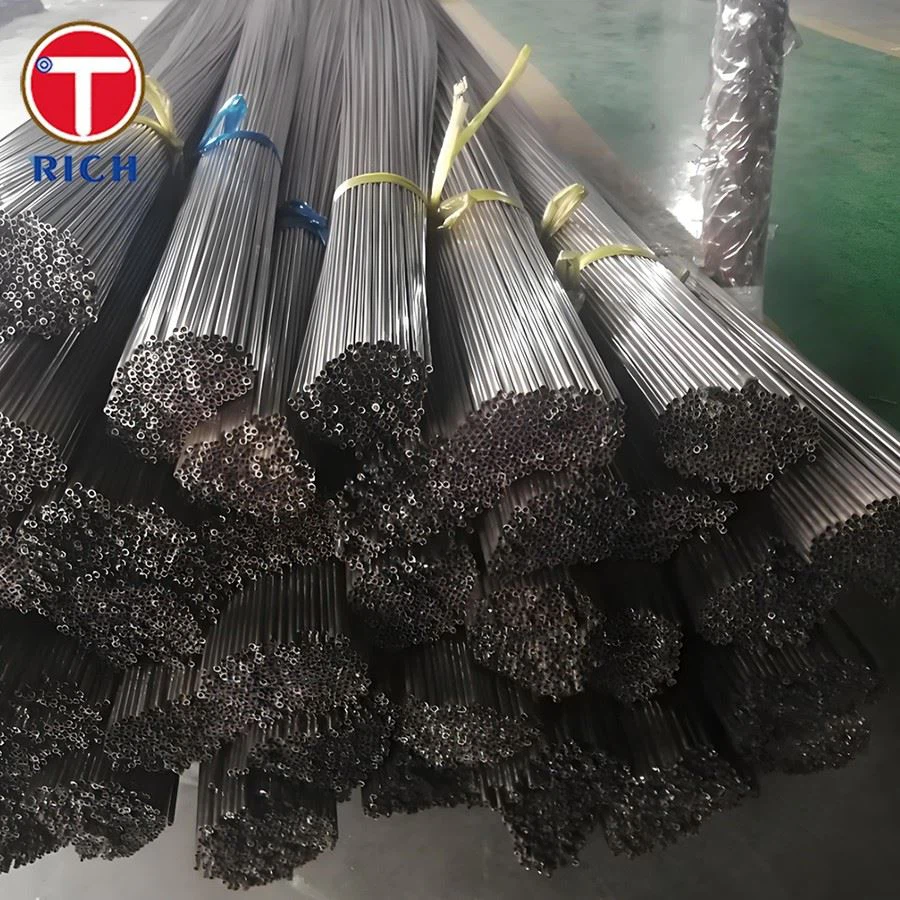

Khoom Qhia
Cov khoom siv kuaj
Eddy Tam sim no Flaw Detector
Hydraulic Universal Test tshuab
Intergranular Corrosion Tester
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom siv polishing
Cov khoom siv kos duab txias
Cov khoom ntim
