Finned Stainless Hlau Tubing: Ib Daim Ntawv Qhia Ua Ntej

Taw qhia

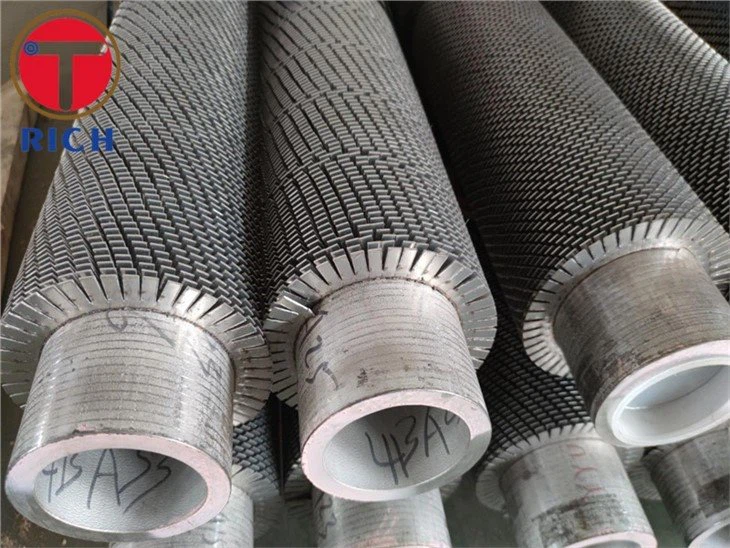

Finned stainless hlau tubing yog ib hom tshwj xeeb ntawm cov tubing siv dav hauv ntau daim ntawv thov kev lag luam. Kab lus no muab kev txheeb xyuas qhov tob ntawm finned stainless hlau tubing, suav nrog nws cov khoom siv, cov lus qhia tshwj xeeb, cov yam ntxwv tseem ceeb, tshuaj lom neeg muaj pes tsawg leeg, cov khoom siv kho tshuab, qib steel, daim ntawv thov, thiab lwm qib.

Khoom siv thiab Specification

Finned stainless hlau tubing feem ntau yog tsim los siv cov khoom zoo stainless hlau alloys, uas muaj qhov tshwj xeeb corrosion kuj, durability, thiab tshav kub hloov zog. Feem ntau siv stainless hlau qib rau finned tubing muaj xws li 304, 316, 321, thiab 409.

Cov lus qhia tshwj xeeb ntawm finned stainless hlau tubing sib txawv nyob ntawm cov ntawv thov. Nws suav nrog cov ntsiab lus xws li sab nraud, phab ntsa tuab, qhov siab qhov siab, fin ntom, fin thickness, fin pitch, thiab tag nrho cov tubing ntev. Cov kev qhia tshwj xeeb no yuav tsum tau ua tib zoo txiav txim siab txhawm rau ua kom pom kev ua haujlwm zoo hauv cov haujlwm tshwj xeeb.

Cov yam ntxwv tseem ceeb

Finned stainless hlau tubing los nrog ntau yam tseem ceeb uas ua rau nws nyiam xaiv hauv ntau qhov kev lag luam:

Txhim kho Thaum tshav kub kub hloov pauv: Cov fins txuas rau lub raj ua rau thaj chaw saum npoo av, uas ua rau kom muaj cua sov hloov pauv ntawm cov kua dej hla lub raj thiab ib puag ncig ib puag ncig.

Corrosion Resistance: Stainless hlau alloys yog heev resistant rau corrosion, ua finned stainless hlau tubing haum rau kev siv nyob rau hauv hnyav ib puag ncig los yog muaj corrosive kua.

Lub zog thiab Durability: Stainless hlau tubing nthuav tawm cov khoom siv kho tshuab zoo heev, muab lub zog thiab ua haujlwm ntev txawm tias nyob rau hauv kev kub siab thiab kub ua haujlwm.

Versatility: Finned stainless hlau tubing tuaj yeem hloov kho kom haum rau ntau yam duab, qhov ntau thiab tsawg, thiab teeb tsa, tso cai rau siv ntau yam hauv ntau daim ntawv thov.

Tshuaj muaj pes tsawg leeg

Cov tshuaj muaj pes tsawg leeg ntawm finned stainless hlau tubing sib txawv nyob ntawm seb cov qib steel tshwj xeeb. Cov lus hauv qab no qhia txog cov ntsiab lus ntawm cov tshuaj muaj pes tsawg leeg rau cov qib uas nquag siv:

Qib Steel	Cov pa roj carbon (C)	Chromium (Cr)	Nickel (Ni)	Manganese (Mn)	Phosphorus (P)	Sulfur (S)	Silicon (Si)
304	0.08%	18 - 20%	8 - 10.5%	2%	0.045%	0.03%	0.75%
316	0.08%	16 - 18%	10 - 14%	2%	0.045%	0.03%	0.75%
321	0.08%	17 - 19%	9 - 12%	2%	0.045%	0.03%	0.75%
409	0.08%	10.5 - 12.5%	-	1%	0.045%	0.03%	0.75%

Mechanical Properties

Cov cuab yeej cuab tam ntawm finned stainless hlau tubing yog qhov tseem ceeb los xyuas kom meej qhov kev ua tau zoo hauv ntau daim ntawv thov. Cov lus hauv qab no muab cov ntsiab lus ntawm cov khoom siv kho tshuab zoo rau cov qib uas nquag siv:

Qib Steel	Tensile zog (MPa)	Yield zog (MPa)	Elongation (%)	Hardness (HV)
304	515 - 620	205 - 310	45	150 - 180
316	515 - 620	205 - 310	45	150 - 180
321	515 - 620	205 - 310	45	150 - 180
409	380 - 550	200 - 310	25	150 - 180

Steel Qib thiab Daim Ntawv Thov

Finned stainless hlau tubing pom cov ntawv thov hauv ntau qhov kev lag luam, suav nrog:

HVAC (Heating, Ventilation, and Air Conditioning) Systems

Thaum tshav kub kub Exchangers

Lub zog tiam

Petrochemicals

Kev ua tshuaj lom neeg

Khoom noj khoom haus thiab dej haus

Automotive

Cov qib steel tshwj xeeb xaiv nyob ntawm cov ntawv thov, xav txog yam xws li kub, siab, ib puag ncig corrosive, thiab tag nrho cov kev xav tau.

Cov qhab nia xaiv tau

Thaum 304, 316, 321, thiab 409 feem ntau siv cov qib stainless hlau rau finned tubing, muaj lwm qib muaj nyob ntawm daim ntawv thov xav tau. Qee qib lwm yam suav nrog 310, 317L, thiab 904L. Kev xaiv ntawm lwm qib yuav tsum xav txog yam xws li ib puag ncig tshwj xeeb, qhov kub thiab txias, thiab cov khoom xav tau.
