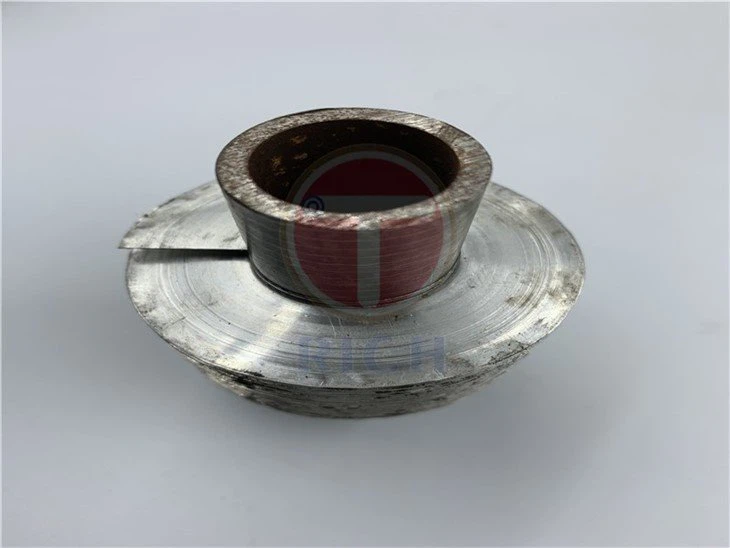

Tube Finning Vuam
Phau Ntawv Qhia Txog Cov Khoom Siv, Specification, Cov Ntsiab Lus Tseem Ceeb, Cov Tshuaj Txhuam Hniav, Cov Khoom Siv Hluav Taws Xob, Qib Hlau, Daim Ntawv Thov, thiab Lwm Cov Qib Ua Tau
Tube finning welding yog cov txheej txheem siv dav hauv kev tsim khoom lag luam txhawm rau txhim kho cov cua sov hloov pauv. Cov txheej txheem no suav nrog kev vuam fins mus rau saum npoo ntawm cov hlab, tsim kom muaj thaj chaw loj los txhim kho cov cua sov hloov ntawm cov dej ntws hauv lub raj thiab ib puag ncig ib puag ncig. Nyob rau hauv tsab xov xwm no, peb yuav tshawb txog ntau yam ntawm tube finning vuam, nrog rau cov khoom siv, kev qhia tshwj xeeb, cov yam ntxwv tseem ceeb, tshuaj lom neeg muaj pes tsawg leeg, cov khoom siv kho tshuab, qib steel, daim ntawv thov, thiab lwm qib.
Khoom siv thiab Specification
Cov khoom siv feem ntau ua haujlwm rau lub raj finning vuam yog carbon steel vim nws cov thermal conductivity zoo heev thiab cov khoom siv kho tshuab. Carbon steels paub txog lawv lub zog, ductility, thiab weldability, ua rau lawv xaiv zoo tshaj plaws rau daim ntawv thov no. Cov lus qhia tshwj xeeb rau tube finning welded yeeb nkab feem ntau suav nrog qhov xav tau ntawm txoj kab uas hla, phab ntsa thickness, thiab qhov ntev fin. Cov khoom siv fin kuj tuaj yeem sib txawv nyob ntawm qhov tshwj xeeb ntawm daim ntawv thov.
Ntsiab nta
Tube finning welded yeeb nkab muaj ntau yam tseem ceeb uas ua rau nws nyiam txoj hauv kev rau kev hloov hluav taws xob. Qee qhov tshwj xeeb muaj xws li:
- Ua kom muaj cua sov ntau ntxiv: Qhov sib ntxiv ntawm cov fins mus rau lub raj nto ua rau qhov chaw saum npoo av muaj rau kev hloov hluav taws xob, txhim kho kev ua haujlwm tag nrho.
- Enhanced Thaum tshav kub kub Dissipation: Fins pab txhawb lub dissipation ntawm tshav kub mus rau ib puag ncig ib puag ncig, tiv thaiv kub buildup ntau dhau.
- Compact Design: Tube finning welded yeeb nkab tso cai rau compact thiab qhov chaw txuag hluav taws xob sib hloov tsim, ua rau nws haum rau ntau yam kev siv.
Versatility: Cov txheej txheem no tuaj yeem siv rau cov raj ntawm cov khoom sib txawv, cov duab, thiab qhov ntau thiab tsawg, muab ntau yam hauv kev tsim thiab ua haujlwm.
Tshuaj muaj pes tsawg leeg
| Element | Carbon Steel Composition Range (% los ntawm qhov hnyav) |
| Cov pa roj carbon (C) | 0.06 - 0.25 |
| Manganese (Mn) | 0.30 - 1.20 |
| Silicon (Si) | 0.15 - 0.50 |
| Phosphorus (P) | 0.035 (max) |
| Sulfur (S) | 0.040 (max) |
Mechanical Properties
| Khoom | Carbon Steel |
| Tensile zog (MPa) | 400 - 600 |
| Yield zog (MPa) | 250 (min) |
| % Elongation | 20 (min) |
| Hardness (HB) | 120 - 200 |
| Modulus ntawm Elasticity (GPa) | 200 - 210 |
| Poisson tus ratio | 0.3 - 0.33 |
Qib Steel
Cov qib steel feem ntau siv rau cov raj finning welded yeeb nkab suav nrog ASTM A179, ASTM A192, thiab ASTM A210. Cov qib no muaj cov thermal conductivity siab, weldability zoo, thiab cov cuab yeej tsim nyog rau kev siv hluav taws xob sib hloov.
Daim ntawv thov
Tube finning welded yeeb nkab pom kev siv dav hauv ntau yam kev lag luam thiab kev siv, suav nrog:
- Thaum tshav kub kub exchangers
- Boilers
- Txheej txheem cua sov
- Condenser
- Cua txias
- Radiators
- Cov roj txias
Cov txheej txheem ua pov thawj tshwj xeeb hauv cov nroj tsuag hluav taws xob, cov nroj tsuag petrochemical, HVAC systems, thiab cov txheej txheem tsim khoom uas muaj kev hloov pauv hluav taws xob zoo yog qhov tseem ceeb rau kev ua haujlwm zoo.
Cov qhab nia xaiv tau
Thaum cov pa roj carbon steel feem ntau yog siv rau lub raj finning welded yeeb nkab, lwm qib yuav raug ua hauj lwm nyob ntawm cov kev cai tshwj xeeb. Qee qhov kev xaiv tau muaj xws li stainless hlau (xws li AISI 304, AISI 316), tooj liab alloys (xws li, C70600), thiab txhuas alloys (xws li, 6061). Cov ntaub ntawv no muaj kev tiv thaiv corrosion zoo heev thiab muab cov thermal conductivity sib txawv haum rau ntau yam kev siv.
Hauv kev xaus, tube finning welded yeeb nkab yog cov txheej txheem tseem ceeb rau kev txhim kho cov hluav taws xob hloov hluav taws xob hauv ntau daim ntawv thov kev lag luam. Los ntawm kev siv cov khoom tsim nyog, qhia qhov tsim nyog qhov ntev, thiab xav txog cov yam ntxwv tseem ceeb, cov tuam ntxhab tuaj yeem siv cov txheej txheem no los txhim kho qhov kev ua tau zoo thiab kev ntseeg siab ntawm lawv cov tshuab cua sov.
