Khoom Description

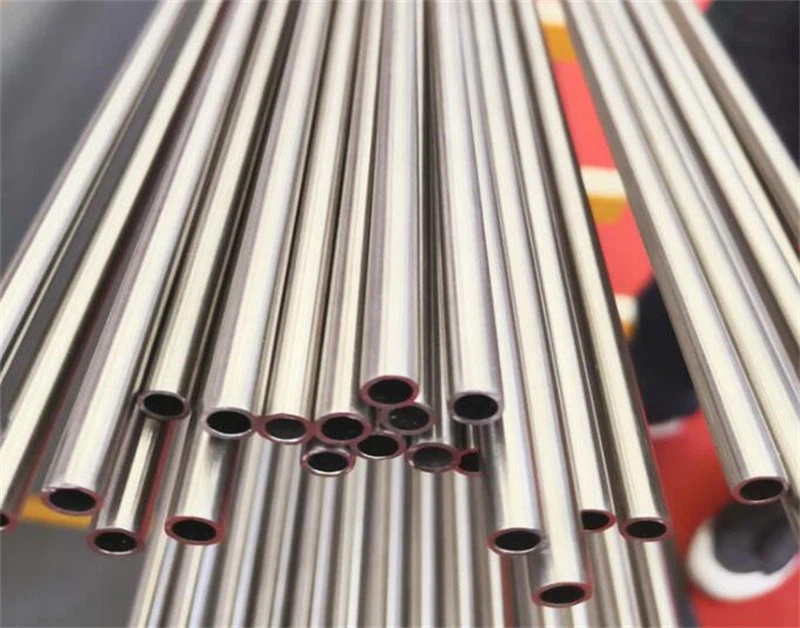

SB171 C71500 Copper Alloy Yeeb Nkab
Qhov zoo ntawm SB171 C71500 Copper Alloy Pipe
- C71500 muaj 30% npib tsib xee, uas ua rau SB171 C71500 Copper Alloy Pipe muaj cov seawater corrosion kuj zoo heev thiab tsim nyog siv rau hauv nkoj, kev siv ntug dej hiav txwv, thiab desalination systems.
- Nws tsis yog -magnetic kom zoo dua ua rau nws zoo tagnrho rau cov chav MRI thiab cov khoom siv kho mob, nrog rau cov cuab yeej siv nrog cov teeb meem sib nqus.
- C71500 muaj zog dua C70600 thiab haum rau siab -siab thiab cov qauv siv.
Daim ntawv thov ntawm SB171 C71500 Copper Alloy Pipe
- Marine kev lag luam: seawater piping systems, nkoj hulls thiab condenser raj
- Kev tsim hluav taws xob: cov khoom siv hluav taws xob sib txawv thiab cov raj condenser, cov tshuab dej txias
- Kev siv tshuaj: kua qaub thiab brine pipelines, corrosive media tuav
- Offshore thiab roj platforms: hluav taws kub dej
Tshuaj muaj pes tsawg leeg
| Element | Tooj | Nickel | Hlau | Manganese | Zinc | Coj |
| Kev sib xyaw (%) | 69.0 – 77.0 | 29.0 – 33.0 | 0.4 – 1.0 | Tsawg dua los yog sib npaug rau 1.0 | Tsawg dua los yog sib npaug rau 1.0 | Tsawg dua los yog sib npaug li 0.05 |
Mechanical Properties
| Khoom |
Tensile zog (MPa) |
Yield zog (MPa) |
Elongation (%) |
Hardness (HRB) |
Qhov ceev (g / cm³) |
Melting Point (zeeg) |
| Tus nqi | Ntau dua lossis sib npaug rau 310 | Ntau dua lossis sib npaug rau 105 | Ntau tshaj los yog sib npaug rau 30 | Tsawg dua los yog sib npaug li 80 | 8.94 | ~1170 |
Cov qhab nia xaiv tau
| Qib | Kev piav qhia | Siv Case Comparison |
| C70600 | Tooj liab -Nickel 90/10 (Cu 90%, Ni 10%) | Tsawg nickel, qis zog, pheej yig dua |
| C71640 | Txhim kho 70/30 alloy nrog ntxiv kev ua tau zoo | Kev siv zog ntau dua |
| Alloy 400 | Monel (Ni{0}}Cu alloy) | Siab zog, zoo corrosion, kim dua |
| C12200 | DHP tooj liab (rau lub tshuab raj dej) | Tsawg corrosion kuj, tsis yog rau marine siv |
| Duplex SS | Stainless hlau alloy | Lub zog siab dua tab sis tsawg dua biofouling kuj |
Khoom Qhia
