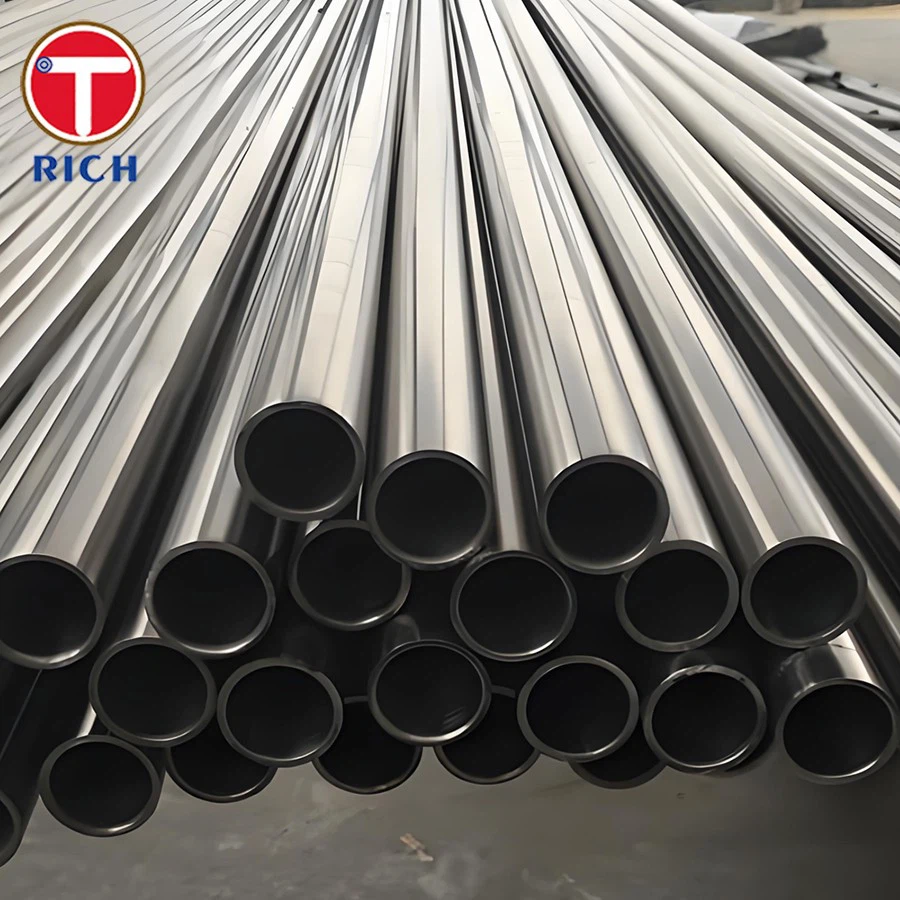

Khoom Description
Khoom Specifications
| Cov qauv | TIAB SA 5589 |
| Qib Steel | Inconel 718 (UNS N07718) Cov. |
| Cov qauv sib npaug | ASTM B444, ASTM B829, EN 2.4668, UNS N07718 |
| Sab nraud Diameter (OD) | 3mm-219 hli |
| Phab ntsa Thickness (WT) | 0.3mm-25 hli |
| Ntev | 6/12 m |
| Kev kho saum npoo | Bright annealed (BA), pickled |
| Txheej txheem ntau lawm | Txias Pilgering / Txias Drawing |
| Qhov xwm txheej | Kev daws Annealed |
Inconel 718 tubing ua haujlwm muaj kev ntseeg siab thoob plaws qhov kub ntawm qhov kub ntawm cov qib cryogenic (-253 degree) mus rau qhov kub siab (704 degree), nrog rau kev txwv oxidation tsis kam ntawm 982 degree, ua rau nws zoo tagnrho rau cov cua kub hloov pauv tau pom hauv aero-engines.
Nrog nws cov ntsiab lus npib tsib xee thiab chromium siab, Inconel 718 muaj kev tiv thaiv zoo tshaj rau pitting thiab intergranular corrosion- ua haujlwm zoo tshaj martensitic nag lossis daus- hardening stainless hlau zoo li 17-4PH-thaum raug cov sulfur- bearing gasestion los ntawm cov roj martensitic.
Customized Services
- TORICH muaj aerospace-qib siab- purity pickling thiab passivation, ci annealing, thiab precision polishing ntawm ob sab hauv thiab sab nrauv los txhim kho qhov smoothness ntawm lub raj sab hauv phab ntsa.
- Peb txhawb cov txheej txheem xws li dabtsi yog khoov, flaring, swaging, kawg beveling, thiab sib sau, thiab tuaj yeem kho ntau yam tshwj xeeb aerospace tubing sib dhos.
- Kev kho qhov kub thiab txias tuaj yeem hloov kho raws li cov kev pabcuam (nrog kev tswj xyuas meej nyob rau hauv 941-996 degree), thiab hardness specifications tuaj yeem hloov kho raws li qhov yuav tsum tau ua (tus qauv Tsawg dua lossis sib npaug li 40 HRC; kev kho hardening muaj rau siab -cov ntawv siv zog).
Tshuaj muaj pes tsawg leeg
| Lub ntsiab | Ni | Cr | Nb+Ta | Mo | Ti | Al | C | Mn | Si | S | P | Co | Cu |
| ib 718 | 50–55 | 17–21 | 4.75–5.50 | 2.80–3.30 | 0.65–1.15 | 0.20–0.80 | Tsawg dua los yog sib npaug li 0.08 | Tsawg dua lossis sib npaug li 0.35 | Tsawg dua lossis sib npaug li 0.35 | Tsawg dua lossis sib npaug li 0.015 | Tsawg dua lossis sib npaug li 0.015 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.30 |
Mechanical Properties
| Khoom | Tensile zog | Tawm Zog (0.2% MPa) | Elongation (%) | Hardness (Rockwell C) |
| Tus nqi | Ntau dua lossis sib npaug li 965 MPa | Ntau dua lossis sib npaug li 550 MPa | Ntau tshaj los yog sib npaug rau 30 | Tsawg dua lossis sib npaug li 36 |
Cov qhab nia xaiv tau
- Inconel 625 yog lwm txoj hauv kev zoo tshaj plaws rau Inconel 718; Txawm hais tias nws muaj zog tensile qis dua, nws muaj kev tiv thaiv corrosion zoo dua thiab tus nqi qis dua, ua rau nws tsim nyog rau cov kav dej cryogenic thiab tsis yog - cov cua txias tseem ceeb hauv kev siv aerospace.
- Rau aerospace piping systems thauj cov xov xwm corrosive heev, Hastelloy C276 yog ib qho kev xaiv; nws muab kev tiv thaiv corrosion zoo heev tab sis los ntawm tus nqi siab dua Inconel 718.
- Rau combustion zone Cheebtsam thiab cov roj turbine qhov yuav tsum tau muaj oxidation tsis kam ntawm qhov kub siab tshaj 700 degree, Hastelloy X (UNS N06002) yog ib qho kev xaiv tsim nyog.
thaj chaw thov
- Aircraft cav systems: cav roj xa kab, roj manifolds, hydraulic tswj kab, thiab lwm yam.
- Aerospace hydraulic systems: davhlau tswj hydraulic kab, actuator tswj kav, thiab lwm yam.
- Gas turbine daim ntaub ntawv: turbine instrumentation piping, compressor saib kab, thiab lwm yam.

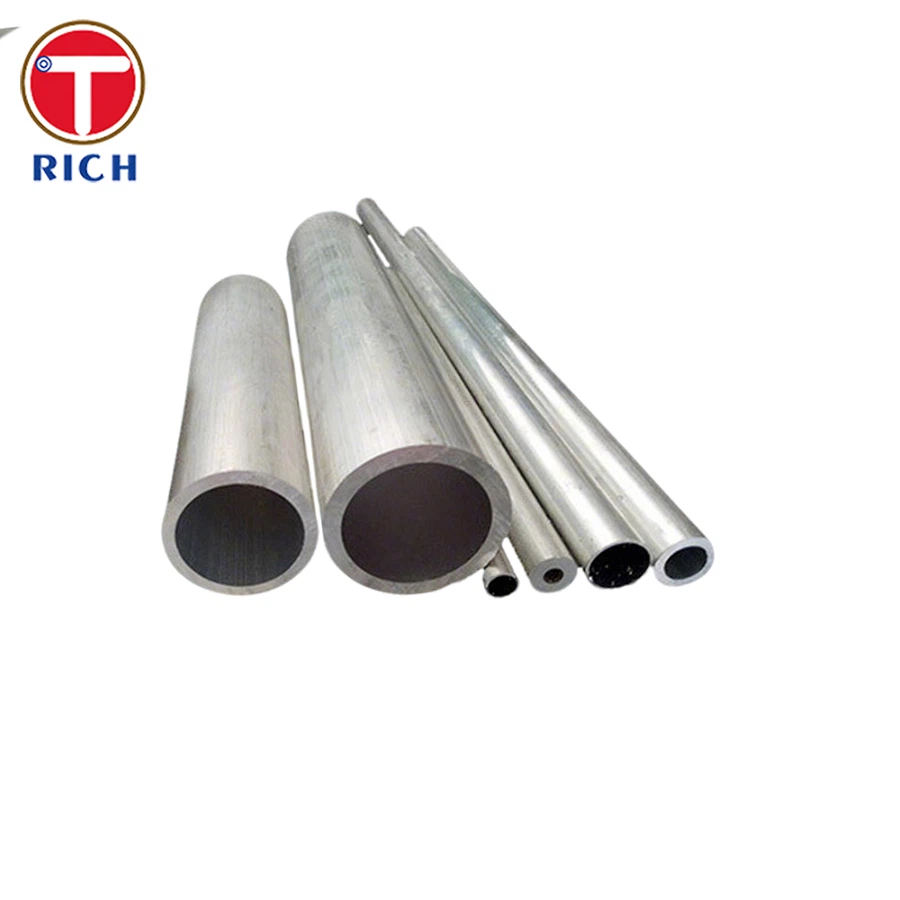

Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom siv polishing
Cov khoom siv kos duab txias
Cov khoom ntim
FAQ
Q: Dab tsi yog qhov txawv ntawm SAE AMS 5589 thiab AMS 5590 Inconel 718 tubing?
A: AMS 5589 npog seamless tubing nyob rau hauv cov kev daws teeb meem -annealed mob, muab zoo weldability thiab formability haum rau raj dabtsi yog khoov thiab welded sib dhos; AMS 5590 npog tubing nyob rau hauv nag lossis daus- mob hnyav, uas muaj zog dua thiab muaj zog dua tab sis txo qis formability.
Q: Cov khoom xa tuaj yog dab tsi? Puas yog kev kho cua sov ntxiv los ntawm cov neeg siv khoom xav tau?
A: Cov txheej txheem xa khoom yog kev daws teeb meem -annealed, descaled, thiab huv si (dawb roj / roj). Cov khoom ua tau raws li txhua qhov kev ua tau zoo, yog li tsis muaj kev kho cua sov ntxiv rau cov ntawv thov txheej txheem; cov tubing yog npaj rau tam sim machining thiab sib dhos.
Q: Koj puas muab cov raj xa dej tiav nrog cov fittings kawg?
A: Yog, peb muab cov tube-kawg tsim cov kev pabcuam raws li cov neeg siv khoom kos duab, suav nrog 37-degree flaring, ISO 6149 haum pre-assembly, spherical seal machining, thiab vuam ntawm threaded adapters.
