Khoom Description
Peb Qhov Zoo
1. Muaj zog corrosion kuj

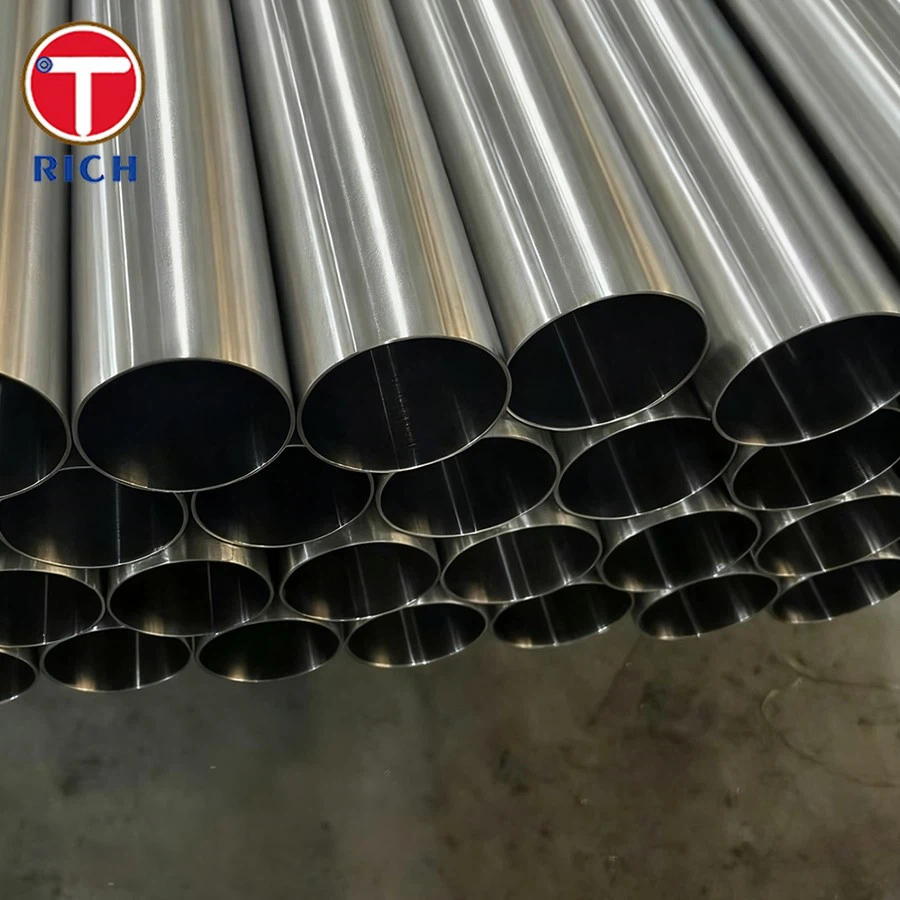

Peb UNS N08825 Nickel Alloy Tubes tau dhau qhov kev sim pitting thiab crevice corrosion, ua kom pom kev tiv thaiv zoo heev rau sulfuric acid, phosphoric acid, thiab dej hiav txwv, ua rau lawv zoo tagnrho rau kev lag luam xws li kev lag luam tshuaj, seawater desalination, thiab marine engineering.
2. Cov cuab yeej cuab tam muaj zog
Peb cov kav dej tau raug kuaj xyuas txhua yam kom ua tau raws li ASTM B704 cov qauv, muaj peev xwm tiv taus qhov cuam tshuam loj yam tsis muaj kev tawg.
3. High-Quality Welds
Peb cov kav dej welded siv TIG welding, ua rau cov vuam huv si thiab qhov ntev. Tsis yog -Kev kuaj kev puas tsuaj thiab kev ntsuas cov cuab yeej cuab tam kom ntseeg tau tias cov kav dej tsis muaj qhov tsis xws luag thiab tawg.
4. Siab -Tub kub kuj
UNS N08825 nthuav tawm kev ua tau zoo ntawm qhov kub thiab txias, tiv thaiv oxidation txog 1,000℃F (538 degree). Nws tuav nws lub zog thiab tiv thaiv corrosion txawm nyob rau hauv qhov kub thiab txias, ua rau nws zoo tagnrho rau cov cua kub exchangers, boiler raj, thiab lwm yam high -stress systems.
5. Qhov Loj Loj
Peb cov kav dej welded undergo precision txias kos duab, kom ntseeg tau tias cov yeeb nkab qhov ntev. Tsis tas li ntawd, tom qab vuam, cov kav dej ncaj nraim siv lub tshuab CNC straightening kom ntseeg tau tias qhov kev ua siab ntev ntawm Tsawg dua lossis sib npaug li 1 mm / m.
6. Kev kho deg
Peb cov kav dej tau txais kev kho mob pickling thiab passivation los txhim kho lawv cov kev tiv thaiv corrosion. Lawv kuj polished rau ib tug high℃ntawm nto tiav. Kev txhaj tshuaj peening thiab electroplating kuj muaj raws li kev kho saum npoo.
thaj chaw thov
- Tshuaj ua kev lag luam: Thaum tshav kub kub exchangers, tshuaj tiv thaiv hlab ntsha, li qub, thiab piping systems siv nyob rau hauv ib puag ncig nquag raug rau corrosive tshuaj thiab kub siab.
- Kev lag luam roj thiab roj: Kub exchangers thiab cua txias tshuab rau subsea pipelines, offshore drilling platforms, thiab refineries.
- Kev tsim hluav taws xob: Boiler tubes thiab cov khoom siv hluav taws xob sib txawv, nrog rau cov tshuab cua txias.
- Marine thiab offshore: Seawater cooling systems, offshore oil platforms, nkoj tso pa, thiab seawater pipelines.
- Aerospace: Gas turbines, cav Cheebtsam, thiab turbine hniav.
Tshuaj muaj pes tsawg leeg
| Element | Nickel | Chromium | Molybdenum | Hlau | Titanium | Aluminium | Cobalt | Tooj |
|---|---|---|---|---|---|---|---|---|
| UNS N06625 (Alloy 625) | Tshuav | 20-23% | 8-10% | 5% Max | 0.4-1.0% | 0.4-0.6% | - | - |
| UNS N06219 (Hlau 617) | Tshuav | 20-23% | 1-3% | 4% Max | - | 1.0-1.5% | 12-15% | - |
| UNS N08825 (Alloy 825) | 38-46% | 19-23% | 2.5-3.5% | Tshuav | 0.6-1.2% | - | - | 1.5-3.0% |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) | Hardness (HB) |
| UNS N06625 (Alloy 625) | 70,000 psi (483 MPa) Min | 30,000 psi (207 MPa) Min | 30% (hauv 2 nti) | Max. HRC 70 |
| UNS N06219 (Hlau 617) | 80,000 psi (552 MPa) Min | 40,000 psi (276 MPa) Min | 30% (hauv 2 nti) | Max. HRC 70 |
| UNS N08825 (Alloy 825) | 55,000 psi (379 MPa) Min | 30,000 psi (207 MPa) Min | 30% (hauv 2 nti) | Max. HRC 70 |
Cov qhab nia xaiv tau
| Alternative Qib | Yog vim li cas |
| UNS N06025 | Qib no zoo ib yam li Alloy 625, tab sis muaj cov khoom qis dua - lub voj voog qaug zog, ua rau nws haum rau siab - kub, siab - ib puag ncig kev ntxhov siab. |
| UNS N07718 | Nws yog siab - zog, corrosion- resistant alloy haum rau turbine cav, roj turbines, thiab lwm yam aerospace Cheebtsam. |
| luj 904l | Nws yog siab- alloy stainless hlau nrog zoo heev tiv thaiv rau ntau yam corrosive ib puag ncig, suav nrog sulfuric acid, tab sis nws cov kev ua tau zoo ntawm qhov kub thiab txias yog qis dua li ntawm Alloy 825. |
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
