Khoom Description
Khoom Specifications
| Cov qauv | ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASME SA312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASTM A312 / ASME SA312) |
| Qib Steel | TP XM-19 TP XM-10 TP XM-11 TP XM-15 TPXM-29 304 304L 304H 304LN 309S 309H 310S 316 316L 316LN 317 321 347 347H 348 904L |
| Cov qauv sib npaug | EN 10216-5, JIS G3459 |
| Sab nraud Diameter (OD) | 10.3 hli - 609.6 hli |
| Phab ntsa Thickness (WT) | 0.5mm-60mm |
| Ntev | Txog li 12m, customized |
| Kev kho saum npoo | Pickled |
| Txheej txheem ntau lawm | Kub Rolled / Cold Drawn |
| Qhov xwm txheej | Annealed & Pickled |

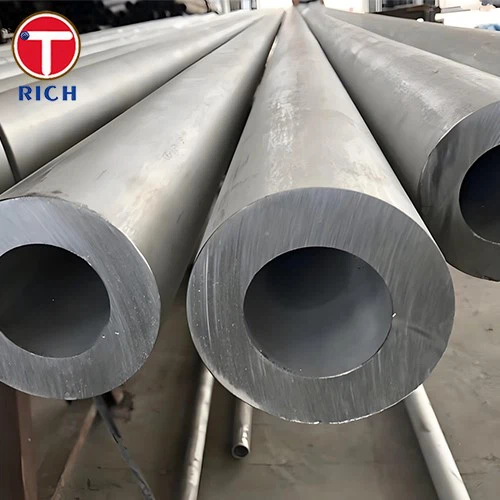

ASTM A312 TP304 316 Hnyav Phab Ntsa Seamless Stainless Hlau Tube yog tsim rau kev ua haujlwm kub ntawm -269℃txog 650 degree, ua rau nws zoo tagnrho rau kev ua haujlwm huab cua xws li cryogenic cia thiab thauj LNG, nrog rau kub kub hydroprocessing units hauv cov roj refineries.
Piv rau welded hlab, seamless hlab yog integrally tsim los ntawm cov khoom puag ncig billets ntawm kub tho; Raws li cov phab ntsa hauv lub raj tsis muaj qhov sib txuas, cov txheej txheem no tshem tawm cov qauv tsis sib xws thiab cov kev ntxhov siab nyob hauv thaj chaw vuam, yog li ua rau cov hlab ntsha nrog lub siab zoo tshaj - cov kabmob muaj peev xwm thiab qaug zog.
Customized Services
- TORICH muaj kev txiav- rau-ntev cov kev pabcuam thiab kev kho kom haum rau tsis yog- tus qauv phab ntsa thicknesses thiab sab nraud.
- Ntxiv nrog rau kev khaws cia thiab kev ua kom tsis muaj zog, peb muab cov kev pabcuam saum npoo av xws li ci ntsa iab, kev txhuam hniav (Ra Tsawg dua lossis sib npaug ntawm 0.4 μm - 1.6 μm), thiab kev tu sab hauv / degreasing.
- Peb tuaj yeem tsim cov qauv 30℃/ 37.5℃weld bevels raws li ASME B16.25 tus qauv, thiab muab kev kho kom haum rau tshwj xeeb bevel profiles, suav nrog U- hom, V- hom, thiab J- hom configurations.
- Peb tuaj yeem kho cov txheej txheem annealing cov txheej txheem kom ua tau raws li qhov yuav tsum tau ua ntawm kev ua haujlwm tshwj xeeb, muab cov kev kho cua sov kho kom haum siab.
Tshuaj muaj pes tsawg leeg
| Qib | C (%) | Mn (%) | P (%) | S (%) | Si (%) | Cr (%) | Tsis muaj (%) | Mo (%) |
| TIAB SA 304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18–20 | 8–11 | – |
| TIAB SA 316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16–18 | 10–14 | 2–3 |
| TP XM-15 | 0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 15–17 | 12–14 | 1–2 |
| TP XM-29 | 0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 17–19 | 12–15 | 2–3 |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) | Hardness (HRB) |
| TIAB SA 304 | 515 nqi | 205 feeb | 40 | 90 |
| TIAB SA 316 | 515 nqi | 205 feeb | 40 | 95 |
| TP XM-15 | 520–650 | 210–350 | 35–40 | 95–105 |
| TP XM-29 | 540–680 | 220–360 | 35–40 | 100–110 |
Cov qhab nia xaiv tau
- Rau cov ntawv thov uas yuav tsum tau siv dav hlau vuam- xws li ntev - cov kav dej thiab cov kav dej thiab cov kav dej loj loj - cov kav dej cog qoob loo -TP 304 Lyog qhov kev xaiv tsim nyog.
- Rau qhov hnyav hnyav acidic roj thiab roj teb los yog sib sib zog nqus- hiav txwv ib puag ncig uas muaj cov tshuaj chloride ion ntau ntau, Duplex Stainless Steel2205 los yog Super-Austenitic Stainless Steel904L Tej zaum yuav raug xaiv los ua lwm txoj hauv kev rau TP316L.
- Thaum ua haujlwm kub siab tshaj qhov txwv siab tshaj ntawm TP304 lossis TP316-piv txwv li, nyob rau hauv ib puag ncig uas muaj qhov ntev ntawm qhov kub ntawm 800℃txog 1100℃-TP 310 Syog qhov pom zoo xaiv.
thaj chaw siv
Daim ntawv thov scenarios rau ASTM A312 hnyav-phab ntsa seamless stainless hlau tubing hla tag nrho cov spectrum ntawm cov roj thiab roj kev lag luam-encompassing upstream, midstream, downstream, thiab offshore engineering ua hauj lwm.
- Upstream: Downhole tubing thiab casing, lub taub hau sib dhos thiab cov ntoo Christmas, siab - cov kab txhaj tshuaj, offshore platform risers, thiab lwm yam.
- Midstream: Siab-cov kav xa hluav taws xob, cov twj tso kua mis thiab cov twj tso kua mis, cov kav dej cryogenic hauv LNG liquefaction nroj tsuag, thiab lwm yam.
- Downstream: Cov txheej txheem ntawm cov kav dej, hydrocracking thiab desulfurization units, piping rau tshuaj tsim khoom thiab chaw cia khoom, thiab lwm yam.
- Thaum tshav kub kub hloov khoom siv: Kub exchangers, boilers thiab superheaters, condensers, thiab lwm yam.
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
Peb muab ntau yam kev xaiv ntim khoom, suav nrog cov kaus mom yas kawg, hnab woven, ntoo crates, thiab hlau thav ntawv. Kev cai ntim cov kev daws teeb meem, logo branding, thiab lwm yam kev xav tau ntawm tus kheej kuj muaj los ua kom tau raws li cov neeg siv khoom xav tau.
FAQ
Q: Dab tsi ntxiv uas tsis yog -Kev kuaj kev puas tsuaj (NDT) koj muab?
A: Peb muab cov kev pabcuam dav dav, tag nrho -NDT uas ua raws li cov qauv kev lag luam roj thiab roj xws li ASME B31.3 thiab API 5L. Cov kev pabcuam no suav nrog: tag nrho-Kev kuaj lub cev Ultrasonic (UT), Kev Ntsuas Radiographic (RT), Kev Ntsuas Penetrant (PT), thiab Sib Nqus Particle Testing (MT).
Q: Koj puas tuaj yeem pab cuam thib peb -kev kuaj xyuas tog?
A: Yog. Peb tuaj yeem koom tes nrog cov koom haum thib peb uas muaj npe nrov thoob ntiaj teb - tog neeg soj ntsuam cov koom haum- xws li DNV, BV, SGS, TÜV, thiab ABS- los pab txhawb rau ntawm - chaw soj ntsuam tim khawv, thiab peb tuaj yeem muab cov ntaub ntawv soj ntsuam thib peb - tog raws li cov neeg siv khoom xav tau.
Q: Rau qhov ntev -cov roj thiab cov roj kis tau tus mob, qhov ntev npaum li cas thiab qhov kawg - koj tuaj yeem muab cov kev pabcuam tiav?
A: Peb muaj peev xwm tsim cov yeeb nkab steel hauv kev ntxiv -ntev ntev ntawm 6m, 12m, thiab 18m. Peb tuaj yeem ua ntej-fabricate standard weld bevels raws li ASME B16.25 tus qauv, nrog rau kev kho tshwj xeeb U-hom thiab V- hom bevels. Tsis tas li ntawd, peb muab cov kev pabcuam ntxiv xws li threaded xaus thiab flange ua ntej{10}}fabrication.
