Khoom Description
Peb Qhov Zoo
1. Muaj zog corrosion kuj

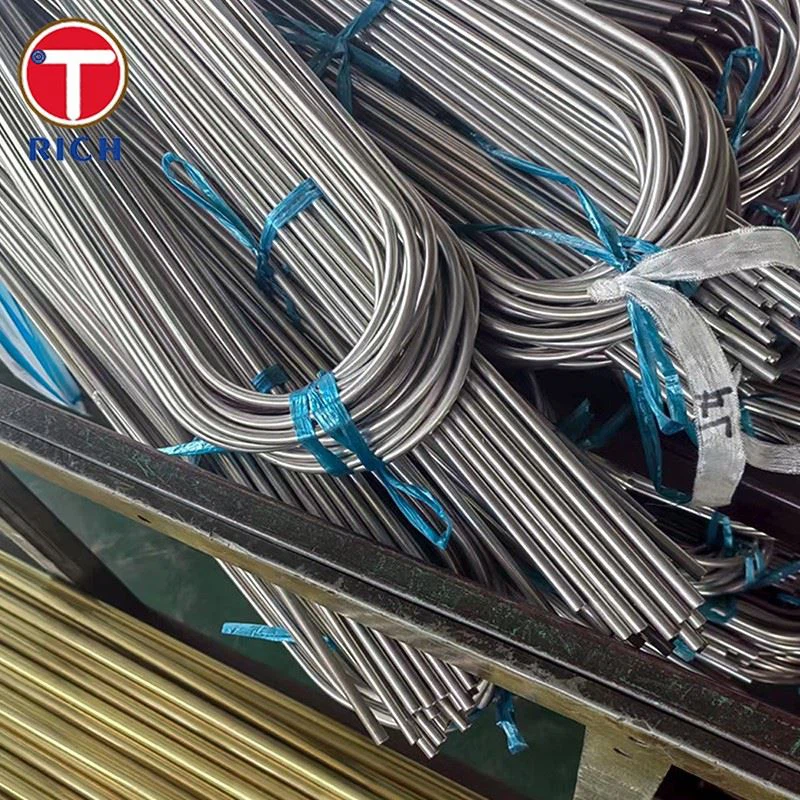

Peb Cov Hlau Stainless U Tubes yog ua los ntawm cov qib siab - zoo stainless hlau, muab kev tiv thaiv zoo heev rau oxidation, xeb, thiab tshuaj lom neeg corrosion, ua rau lawv tshwj xeeb tshaj yog haum rau tshuaj lom neeg thiab marine ib puag ncig.
Los ntawm kev sim tshuaj muaj pes tsawg leeg thiab tshuaj ntsev ntsev, cov kav dej tau lees paub los tiv thaiv corrosion los ntawm chlorides, oxidants, thiab kub kub.
2. Kev kub siab ua haujlwm siab
Peb cov kav dej muaj cov thermal stability, ua haujlwm zoo ntawm qhov kub txog li 900 degree. Lawv nyob twj ywm tsis cuam tshuam los yog deformed nyob rau hauv thermal cycling, ua rau lawv zoo tagnrho rau kev lag luam xws li petrochemicals thiab aerospace.
3. Kev kub siab ua haujlwm
Peb cov kav dej tsis muaj seamless, tsim los siv cov txheej txheem txias - kos duab, tshem tawm cov vuam seams thiab ua kom cov khoom siv zoo ib yam. Qhov no ua rau lawv zoo tagnrho rau siab - cov tshuab siab xws li cov khoom siv hluav taws xob, cov boilers, thiab cov tshuaj reactors.
4. Nto Zoo
Peb cov kav dej tau txais kev khaws cia, kev ua haujlwm, thiab polishing, uas ua rau muaj qhov siab -gloss nto tiav uas tiv thaiv kev sib sau ntawm nplai, khib nyiab, lossis lwm yam khoom, txo qhov yuav ua rau cov yeeb nkab puas thaum siv.
5. Kev Tswj Xyuas Zoo
TORICH cov kav dej tau raug kuaj nruj ua ntej nkag mus rau hauv cov khoom lag luam tiav kom ntseeg tau tias lawv ua tau raws li JIS G3459 cov qauv lossis cov neeg siv khoom, thiab muaj cov ntawv pov thawj xws li PED, ATÜV, ISO 9001, ISO 14001, thiab CE.
6. Ntim thiab thauj
Peb cov kav dej tau ntim nrog lub kaus mom yas, yas zaj duab xis, hnab woven, thiab ntoo crates los tiv thaiv kev puas tsuaj los yog kis kab mob thaum thauj. Peb muaj ntau yam kev xaiv shipping, suav nrog av, hiav txwv, thiab huab cua freight, thiab cov qauv muaj.
thaj chaw thov
- Roj turbines: Siv nyob rau hauv cov roj turbine hniav thiab cov khoom.
- Cov cuab yeej siv hluav taws xob: Feem ntau siv nyob rau hauv boiler raj, superheaters, thiab tshav kub exchangers nyob rau hauv fais fab nroj tsuag.
- Furnaces thiab kilns: Haum rau siv nyob rau hauv industrial cua sov txheej txheem.
- Aerospace: Turbine xyaw thiab tso pa tawm.
- Cov cuab yeej siv tshuaj: Feem ntau pom muaj nyob rau hauv cov tshuaj reactors thiab industrial ncu hauv petrochemical thiab tshuaj industries.
Tshuaj muaj pes tsawg leeg
| Element | Cov pa roj carbon (C) | Manganese (Mn) | Chromium (Cr) | Nickel (Ni) | Silicon (Si) | Molybdenum (hli) |
|---|---|---|---|---|---|---|
| SUS304TP | Tsawg dua lossis sib npaug li 0.08% | 2.00% – 2.50% | 18.00% – 20.00% | 8.00% – 10.50% | Tsawg dua lossis sib npaug li 1.00% | - |
| SUS304 HTP | Tsawg dua lossis sib npaug li 0.08% | 2.00% – 2.50% | 18.00% – 20.00% | 8.00% – 10.50% | Tsawg dua lossis sib npaug li 1.00% | - |
| SUS 310 STP | Tsawg dua lossis sib npaug li 0.25% | 2.00% – 3.00% | 24.00% – 26.00% | 19.00% – 22.00% | Tsawg dua lossis sib npaug li 1.00% | - |
| SUS315J2TP | Tsawg dua lossis sib npaug li 0.10% | 1.50% – 2.50% | 25.00% – 28.00% | 20.00% – 23.00% | Tsawg dua lossis sib npaug li 1.00% | - |
Mechanical Properties
| Khoom | SUS304TP | SUS304 HTP | SUS 310 STP | SUS315J2TP |
|---|---|---|---|---|
| Tensile zog | Ntau dua lossis sib npaug li 520 MPa | Ntau dua lossis sib npaug li 550 MPa | Ntau dua lossis sib npaug li 620 MPa | Ntau dua lossis sib npaug li 700 MPa |
| Yield zog | Ntau dua lossis sib npaug li 215 MPa | Ntau dua lossis sib npaug li 250 MPa | Ntau dua lossis sib npaug li 250 MPa | Ntau tshaj lossis sib npaug li 300 MPa |
| Elongation | Ntau dua lossis sib npaug li 40% | Ntau dua lossis sib npaug li 35% | Ntau dua lossis sib npaug li 40% | Ntau dua lossis sib npaug li 35% |
| Hardness | Tsawg dua lossis sib npaug rau 201 HB | Tsawg dua lossis sib npaug li 220 HB | Tsawg dua lossis sib npaug rau 201 HB | Tsawg dua lossis sib npaug li 240 HB |
| Modulus ntawm Elasticity | ~ 200 GPa | ~ 200 GPa | ~ 200 GPa | ~ 200 GPa |
| Impact Toughness | Ntau dua lossis sib npaug li 40 J | Ntau dua lossis sib npaug li 45 J | Ntau dua lossis sib npaug li 50 J | Ntau dua lossis sib npaug li 50 J |
Cov qhab nia xaiv tau
| Alternative Qib | Yog vim li cas |
| TSI 317L | Nws nthuav tawm tsis tshua muaj siab corrosion kuj nyob rau hauv sulfuric thiab chloride ib puag ncig, ua rau nws tsim nyog rau kev ua tshuaj, marine thiab seawater pipelines. |
| AISI 904L | Nws ua tau zoo nyob rau hauv siab -kub thiab corrosive chemical ib puag ncig, ua rau nws haum rau marine daim ntaub ntawv uas yuav tsum tau siab tiv thaiv rau seawater corrosion. |
| Duplex Stainless Hlau | Nws muaj qhov zoo weldability thiab formability, nrog rau superior tsis kam rau kev ntxhov siab corrosion cracking. |
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
