Khoom Description
Khoom Specifications
| Cov qauv | ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASME SA312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASME SA312 / ASTM A312 / ASTM A312 / ASTM A312 / ASME SA312) |
| Qib Steel | 304 304L 304H 304LN 309S 309H 310S 316 316L 316LN 317 321 347 347H 348 904L |
| Cov qauv sib npaug | EN 10216-5 / DIN 17458 / JIS G3459 |
| Tube sab nraud txoj kab uas hla (OD) | 12-165mm, customizable |
| Tube Phab Ntsa Thickness (WT) | 1-20 hli, customizable |
| Tube Length | Txog li 18m, customizable |
| Fin Qhov siab | 6-50 hli, customizable |
| Fin Thickness | 0.3-5.0 hli, customizable |
| Fin Pitch | 4-13 FPI, customizable |
ASTM A312 stainless hlau puag khoom muaj 18% -20% chromium thiab 8% -13% npib tsib xee (nrog TP316L muaj ntxiv 2% - 3% molybdenum). Cov ntaub ntawv ntom ntom chromium oxide passivation zaj duab xis tsim rau ntawm nws qhov chaw, tiv thaiv corrosion los ntawm sulfides (H₂S), chloride ions (Cl⁻), thiab acidic media tam sim no hauv cov roj thiab roj ib puag ncig, yog li ua tau raws li cov qauv kev tiv thaiv corrosion ntawm cov roj thiab roj kev lag luam.

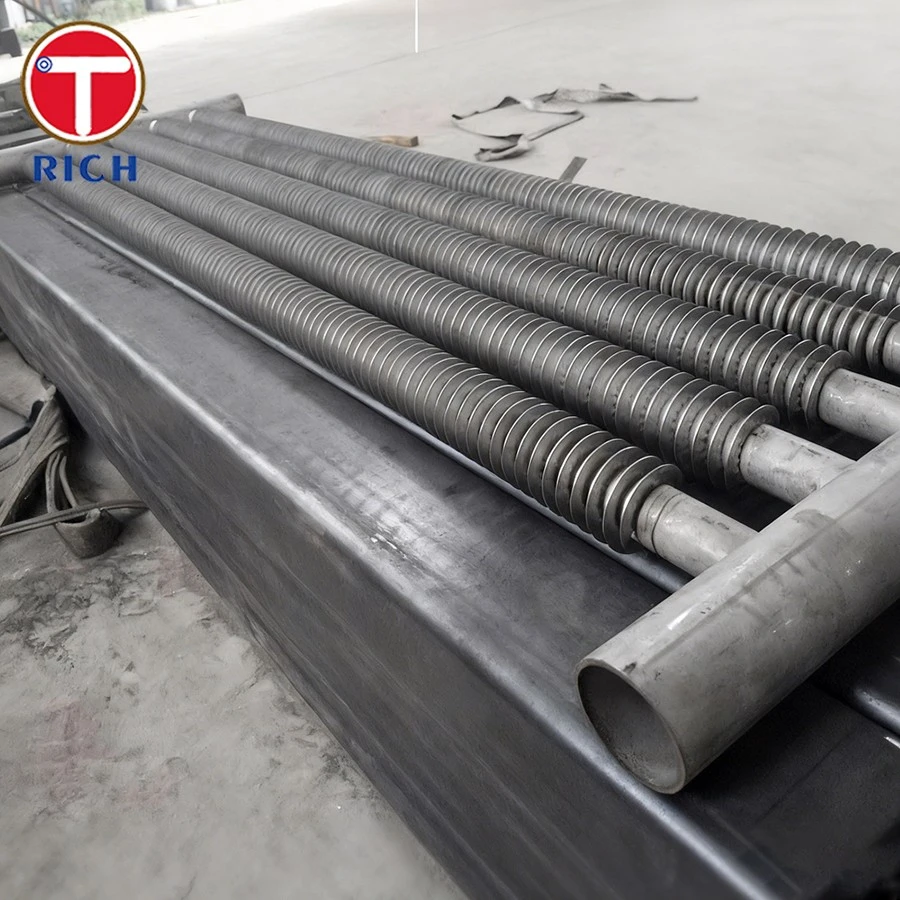

Lub Stainless Wrapped Finned Tube siv qhov txias -wrapping thiab siab- zaus vuam txheej txheem, kom ntseeg tau tias muaj kev sib tshuam ntawm cov fins thiab lub hauv paus raj nrog qhov sib txuas ntawm tsawg dua lossis sib npaug li 0.05 hli. Validated los ntawm kev vibration testing, cov fins qhia tsis tau tsiv los yog detachment txawm nyob rau hauv complex kev khiav hauj lwm tej yam kev mob.
Customized Services
- TORICH muaj cov kev pabcuam kho kom haum raws li cov neeg siv khoom xav tau, suav nrog kev tsim cov raj hauv ntau yam ntaub ntawv-xws li 304, 316, 321, 310, thiab 2205-nrog rau qhov kev cai loj.
- Ntxiv nrog rau cov txheej txheem pickled tiav, peb muab ntau yam kev kho mob saum npoo av, suav nrog kev ci ntsa iab, sandblasting, thiab electropolishing.
- Peb kuj muaj kev pabcuam finning rau "U-khoov raj"; tshwj xeeb tshaj yog rau cov pa hluav taws xob ib puag ncig uas muaj cov plua plav siab siab thiab muaj lub siab nyiam rau fouling, peb txhawb kev hloov kho ntxiv ntawm -qhov dav qhov sib nrug (piv txwv li, 4-6 hli) kom tsis txhob txhaws.
Tshuaj muaj pes tsawg leeg
| Element | C | Mn | Si | P (max) | S (max) | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| 304L | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | 18.0–20.0 | 8.0–12.0 | - |
| 309S | Tsawg dua lossis sib npaug li 0.080 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | 22.0–24.0 | 12.0–15.0 | - |
| 316L | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) | Hardness (HB) |
| 304L | Ntau dua lossis sib npaug rau 485 | Ntau dua lossis sib npaug li 170 | Ntau dua lossis sib npaug li 35 | Tsawg dua lossis sib npaug li 192 |
| 309S | Ntau dua lossis sib npaug li 515 | Ntau dua lossis sib npaug rau 205 | Ntau dua lossis sib npaug li 40 | Tsawg dua lossis sib npaug li 192 |
| 316L | Ntau dua lossis sib npaug rau 485 | Ntau dua lossis sib npaug li 170 | Ntau dua lossis sib npaug li 40 | Tsawg dua lossis sib npaug li 192 |
Cov qhab nia xaiv tau
- Incoloy 800 / 800H qhia tau zoo heev -kub creep zog thiab rupture lub zog, ua rau nws haum rau tshav kub exchangers ua hauj lwm ntawm kub siab tshaj 600-800 degree.
- Inconel 600 / 625 muaj superior corrosion kuj thiab oxidation tsis kam, ua rau nws haum rau siab - kub flue roj kub exchangers.
- 904L qhia tshwj xeeb rau pitting, crevice corrosion, thiab chloride corrosion, ua rau nws haum rau seawater desalination nroj tsuag.
thaj chaw thov
Cov ntawv thov tshwj xeeb ntawm ASTM A312 stainless qhwv finned raj hauv kev lag luam roj thiab roj yog raws li hauv qab no:
- Cua txias hauv cov roj refineries
- Thaum tshav kub kub exchangers rau offshore roj platforms thiab FPSO systems
- Glycol regeneration units thiab gas dehydration systems
- Liquefied Natural Gas (LNG) vaporization systems
- Sulfur rov qab units
- Hluav taws kub cua sov thiab petrochemical furnaces nyob rau hauv refineries
- Marine HVAC tshav kub exchange systems
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
FAQ
Q: Dab tsi yog kauv - qhov txhab finned tube, thiab nws yuav ua li cas txhawm rau txhim kho cov cua sov ua haujlwm?
A: Kauv- cov kab mob finned tubes ua rau thaj chaw sib cuag ntawm cov khoom siv hluav taws xob los ntawm kev sib txuas ceev nrooj ntawm cov hlua hlau txuas txuas (fin) nyob ib puag ncig sab nraud ntawm lub hauv paus raj. Hauv kev siv roj thiab roj, qhov kev teeb tsa no txhawb nqa kev kub ntxhov hauv cov kua dej sab nraud uas ntws los ntawm lub plhaub sab, yog li txo qis thermal kuj.
Q: Cov hlau tshwj xeeb puas tuaj yeem siv rau ob lub hauv paus raj thiab cov fins?
A: Yog, duplex stainless hlau, super duplex stainless hlau, Inconel, thiab 254 SMO yog tag nrho cov kev xaiv.
Q: Koj puas tuaj yeem tsim khoov finned raj rau siv hauv U-tube bundle heat exchangers?
A: Yog lawm, peb tuaj yeem tsim U-bent finned tube sib dhos. Peb tuaj yeem ua kom haum cov raj ncaj ncaj ntev txog li 27,000 mm thaum tswj xyuas qhov zoo tshaj plaws fin ntom. Los ntawm kev ua tib zoo tswj lub vojvoog dabtsi yog khoov thiab siv tom qab- khoov kho cua sov, peb xyuas kom meej tias qhov khoov tsis muaj qhov txhab thiab cov phab ntsa ntau dhau.
