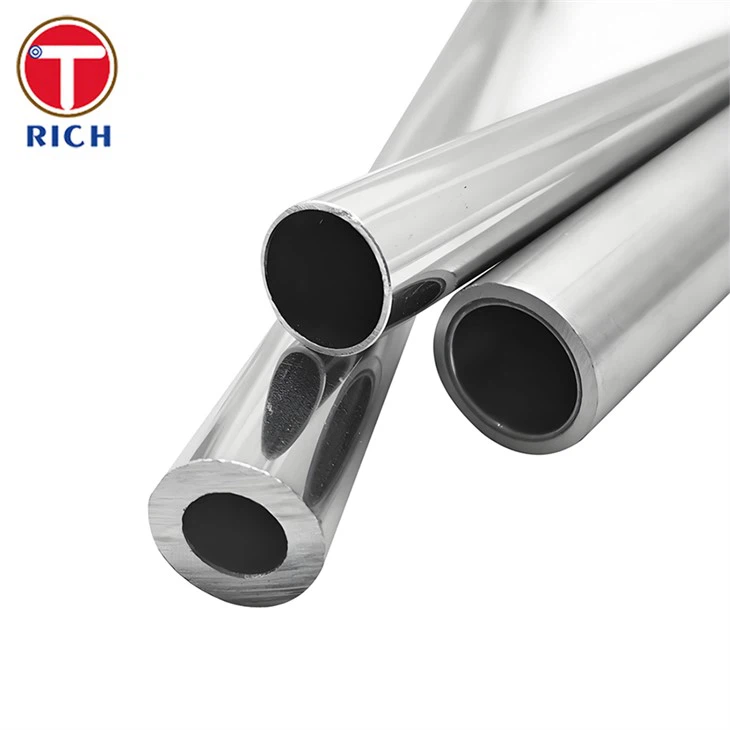

Dab tsi yog Stainless Hlau Round Pipe?

Stainless hlau round tube yog lub hollow, ncig yeeb nkab ua los ntawm cov khoom siv stainless hlau. Raws li lawv daim ntawv thov, cov raj no tuaj yeem muab faib ua cov khoom siv kho kom zoo nkauj, kev lag luam, thiab cov qib huv si; Raws li lawv cov txheej txheem tsim khoom, lawv raug cais raws li seamless lossis welded raj.

Seamless steel raj tau muab faib ua cov kub- dov, txias- dov, txias- kos, thiab extruded hom-nrog rau kev kos duab txias thiab txias dov ua cov theem ua haujlwm thib ob rau cov raj-thaum cov raj welded tau muab faib ua ncaj -seam.{6} thiab lwm yam.

cov khoom specifications

Cov qauv	ASTM A312 / ASTM A213 / ASTM A269 / ASTM A270 / ASTM A789 / ASTM A790 / EN 10216-5 / EN 10217-7 / JIS G3459 / GOST 9941, thiab lwm yam.
Qib Steel	304, 304L, 316, 316L, 321, 310S, 347H, 904L, S31803, S32205, S32750, thiab lwm yam.
Sab nraud txoj kab uas hla (seamless)	5mm - 630mm, customizable
Sab nraud Diameter (welded)	8mm - 1800mm, customizable
Phab ntsa Thickness (WT)	0.5mm-55mm, customizable
Ntev	3m / 6m / 12m, customizable
Kev kho saum npoo	Pickled Finish, Annealed & Pickled, BA Finish, Polished Finish (No.180 / No.240 / No.320 / No.400 / No.600), Electro-Polished, thiab lwm yam.
Txheej txheem ntau lawm	Kub Rolling / Cold Drawing / Cold Rolling / TIG Vuam / Laser Vuam / High Frequency Vuam, thiab lwm yam.

Vim li cas thiaj xaiv peb

Kev tswj kom zoo

TORICH siv cov kev tswj xyuas nruj nruj thoob plaws hauv tag nrho cov txheej txheem tsim khoom, kom ntseeg tau tias cov kav dej ua tau raws li cov qauv thoob ntiaj teb xws li ASTM, JIS, DIN, thiab EN.

Muaj peev xwm ntau lawm

TORICH boasts cov kab tsim khoom niaj hnub no nrog lub peev xwm txhua xyoo ntawm 24,000 metric tons, ua kom muaj kev ruaj khov thiab xa khoom raws sij hawm rau cov haujlwm loj - nplai thiab ntev - cov ntawv cog lus.

Kev pabcuam customized

TORICH muaj cov kev pabcuam hloov kho tau yooj yim, suav nrog qhov ntau thiab tsawg, cov khoom siv, thiab cov duab tshwj xeeb. Tsis tas li ntawd, tus nqi - ntxiv cov kev pabcuam xws li kev txiav, khoov, thiab kev kho saum npoo kuj muaj.

Ntim

TORICH siv cov txheej txheem ntim khoom xws li cov kaus mom yas kawg, cov yeeb yaj kiab yas, cov hnab ntim khoom, cov thawv ntoo, thiab cov thav ntawv hlau los tiv thaiv kev puas tsuaj los yog kis kab mob ntawm cov kav dej thaum thauj.

Peb Cov Khoom

409 Stainless hlau Exhaust yeeb nkab

saib ntxiv

PVC Coated Tubing

saib ntxiv

Hydraulic Lub tog raj kheej Tube

saib ntxiv

Electropolished SS Tubing

saib ntxiv

Stainless hlau Welded Tube

saib ntxiv

Loj Loj Stainless Yeeb Nkab

saib ntxiv

Cov chaw thov

Roj & Roj

Stainless hlau puag ncig cov kav dej muaj qhov zoo tshaj plaws corrosion, siab, thiab kub ua hauj, ua rau lawv zoo tagnrho rau cov roj thiab petrochemical daim ntaub ntawv xws li siab - cov kav dej kub, cov kav dej, cov raj tawg, cov dej thauj, thiab cov khoom siv hluav taws xob.

Stainless Steel Round Pipe for Chemical Petrochemical

Tshuaj & Petrochemical

Stainless hlau muaj kev tiv thaiv zoo heev rau cov kua qaub, alkalis, thiab corrosive media, ua rau nws zoo tagnrho rau kev siv tshuaj lom neeg thiab petrochemical xws li cov kav dej, cov khoom siv hluav taws xob sib hloov, cov raj rauv, cov dej thauj, thiab siab - siab tshuab.

Kev Kho Mob & Pharmaceutical

TORICH stainless hlau puag ncig cov raj muaj lub ntsej muag sab nraud ntawm ± 0.03 hli thiab sab hauv qhov roughness ntawm Ra tsawg dua lossis sib npaug li 0.25 μm, ua rau lawv zoo tagnrho rau cov kab ntau lawm, siab - purity kua tshuab, cov cuab yeej kho mob, thiab lwm yam kev siv precision.

Stainless Steel Round Pipe for Medical Pharmaceutical

Stainless Steel Round Pipe for hydraulic systems

Mechanical & Engineering

Stainless hlau puag ncig lub raj muaj kev ua haujlwm zoo thiab qhov ruaj khov, ua rau nws zoo tagnrho rau hydraulic systems, mechanical Cheebtsam, automation khoom, thiab lwm yam precision engineering daim ntaub ntawv.

Thaum tshav kub kub Exchanger & Zog

Cov hlau tsis muaj steel muaj qhov ua tau zoo heev -kub tsis kam, nrog rau qib xws li 310S ua haujlwm ntawm 1000-1100 degree, ua rau nws tsim nyog rau cov khoom siv hluav taws xob, boilers, thiab HRSG systems.

Stainless Steel Round Pipe for Heat Exchanger

Automotive

Stainless hlau round kav dej yog dav siv nyob rau hauv tsheb tso tsheb, roj thiab nres kab, turbocharging, thiab thermal tswj systems, muab zoo heev kub tsis kam, corrosion kuj, thiab mechanical zog rau ob qho tib si ICE thiab hluav taws xob tsheb.

Kev tsim cov txheej txheem ntawm Stainless Hlau Round Pipe

01/

Kev xaiv raw khoom
Cov txheej txheem pib nrog kev xaiv cov khoom zoo - zoo raw khoom. Nyob rau hauv cov ntaub ntawv ntawm cov yeeb nkab, cov khoom tseem ceeb yog stainless hlau, uas muaj cov pa roj carbon ntau dua cov qauv stainless hlau rau kev txhim kho siab - qhov kub thiab txias.

02/

Cua sov Thiab Melting
Cov khoom siv raw xaiv, feem ntau yog nyob rau hauv daim ntawv ntawm billets los yog ingots, yog rhuab nyob rau hauv lub cub tawg mus rau ib tug kub uas haum rau melting. Thaum qhov kub xav tau mus txog, cov ntaub ntawv tau yaj los ua cov hlau molten.

03/

Kev tsim yeeb nkab
Tom qab ntawd cov hlau molten yog nchuav rau hauv lub tshuab nruam nruam, qhov twg nws tau hloov mus rau hauv cov khoom cylindrical. Cov txheej txheem casting pab ua kom muaj qhov sib xws thiab muaj qhov tsis zoo - qauv dawb.

04/

Piercing
Cov khoom cylindrical, lub npe hu ua billet, yog tom qab ntawd pierced los ntawm piercing zeb los tsim ib lub plhaub hollow. Cov txheej txheem tho qhov yuav tsum tau yuam ib lub pob tho los ntawm qhov chaw ntawm lub pob zeb los tsim ib lub qhov puag ncig.

05/

Qhov Loj Thiab Txo
Lub plhaub pierced yog dhau los ntawm ib qho ntawm qhov loj me thiab txo cov mills kom maj mam txo nws txoj kab uas hla thiab ua tiav cov phab ntsa tuab. Cov txheej txheem no suav nrog ntau qhov dhau los ntawm cov yob sib txawv kom paub meej qhov ntev thiab cov qauv zoo ib yam.

06/

Kev kho cua sov
Tom qab sizing thiab txo, cov yeeb nkab tau raug kho cua sov los txhim kho nws cov khoom siv kho tshuab thiab txhim kho nws cov kev tiv thaiv corrosion thiab siab - qhov kub thiab txias ib puag ncig. Kev kho cua sov feem ntau suav nrog cov txheej txheem annealing, quenching, thiab tempering txheej txheem.

07/

Straightening Thiab Txiav
Cov cua sov-kho cov yeeb nkab yog ncaj nraim siv cov tshuab ua kom ncaj kom ua tiav cov duab ncaj thiab zoo ib yam. Tom qab ntawd nws raug txiav mus rau hauv qhov ntev uas xav tau siv cov saws lossis lwm yam cuab yeej txiav.

08/

Tsis yog -Kev kuaj kev puas tsuaj
Txhawm rau kom ntseeg tau tias qhov zoo thiab kev ncaj ncees ntawm cov yeeb nkab stainless hlau puag ncig, ntau yam tsis yog -txoj kev kuaj kev puas tsuaj yog ua haujlwm. Cov no yuav suav nrog kev kuaj ultrasonic, eddy kev kuaj tam sim no, lossis kev tshuaj xyuas qhov muag kom pom qhov tsis xws luag lossis tsis zoo.

seamless

Processes of seamless stainless steel pipe

Welded

processes of weleded stainless steel tube

Peb Daim Ntawv Pov Thawj

Kev koom tes ntawm cov neeg siv khoom

FAQ

Q: Dab tsi yog stainless hlau round tube?

A: 304 Stainless hlau round raj yog ib qho zoo, dav dav txhua yam - cov khoom siv. Nws muaj cov khoom zoo corrosion resistant, yog yooj yim machinable, weldable, thiab tuaj yeem polished. Nws kuj tau nrhiav tom qab vim nws lub zog, ductility, kev saib xyuas yam tsawg kawg nkaus, thiab kev pom zoo.

Q: Dab tsi yog hom steel yeeb nkab feem ntau?

A: Cov pa roj carbon steel yog hom hlau feem ntau siv hauv cov kav dej. Nws cov tshuaj pleev ib ce muaj qhov tsawg ntawm cov ntaub ntawv alloying, uas ua rau nws yooj yim rau fabricate nrog lub beam tshuab thiab pab txo nqi.

Q: Dab tsi yog 304 stainless hlau round yeeb nkab siv rau?

A: Stainless hlau 304 kav yog siv nyob rau hauv ntau yam teb, tshwj xeeb tshaj yog nyob rau hauv kev ua zaub mov, raws li lawv tsis nquag mus rau acid corrosion nyob rau hauv cov khoom noj. Cov hlau no yog tsim rau cov khoom lag luam xws li dab dej, tshuab ntxhua khaub ncaws, stainless hlau footover txuas hniav, khoom lag luam ua zaub mov, thiab tub yees.

Q: Dab tsi yog qhov txawv ntawm stainless hlau round yeeb nkab thiab stainless hlau raj?

A: Txawm li cas los xij, muaj qhov sib txawv tseem ceeb ntawm cov yeeb nkab steel thiab steel raj. Ib lub raj yog puag ncig. Lub raj tuaj yeem yog puag ncig, square, duab plaub, lossis oval hauv cov duab. Cov kav dej feem ntau yog tsim los nqa cov kua thiab roj, tsis hais txog kev lag luam uas lawv tau xa mus.

Q: Koj puas tuaj yeem coj mus rhaub stainless hlau round yeeb nkab?

A: Txawm hais tias stainless hlau tsis nyuaj npaum li cov pa roj carbon ntau, tapping stainless hlau los ntawm tes los yog drilling stainless hlau siv lub zog laum yuav nyuaj yog tias koj tsis siv cov cuab yeej thiab cov tswv yim kom raug.

Q: Puas yog stainless hlau round yeeb nkab muaj zog dua steel yeeb nkab?

A: Stainless hlau puag ncig cov kav dej muaj zog tensile ntau dua piv rau lwm cov kav dej ua los ntawm cov hlau me me. Qhov no txhais tau hais tias stainless hlau puag ncig yeeb nkab tuaj yeem tiv taus ntau dua ntawm kev ntxhov siab ua ntej nws mus txog qhov tawg.

Q: Qhov txawv ntawm 304 thiab 316 stainless hlau round yeeb nkab yog dab tsi?

A: Qhov sib txawv tseem ceeb ntawm 304 thiab 316 stainless hlau uas ua rau lawv sib txawv yog qhov sib ntxiv ntawm molybdenum, ib qho hlau uas ua kom muaj zog tiv thaiv corrosion, tshwj xeeb tshaj yog rau cov ntsev ntau dua los yog cov tshuaj chloride -cov cheeb tsam raug pom . 316 stainless hlau muaj molybdenum, tab sis 304 tsis muaj.

Q: Dab tsi yog qhov txawv ntawm stainless hlau thiab 304 stainless hlau?

A: 304 Stainless hlau muaj 18% chromium thiab 8% npib tsib xee. Hauv qhov sib piv, 316 stainless hlau muaj 16% chromium, 10% nickel, thiab 2% molybdenum. Cov tshuaj sib txawv ntawm ob qib ntawm stainless hlau yog qhov tseem ceeb thaum xav txog lawv qhov kev siv.

Q: Koj puas tuaj yeem khoov 304 stainless hlau round yeeb nkab?

A: Cov qib feem ntau siv rau stainless hlau raj khoov muaj xws li 304 stainless hlau thiab 316 stainless hlau. Cov khoom siv qib uas koj xaiv txiav txim seb hom dabtsi yog khoov siv nrog rau lub vojvoog uas tuaj yeem ua tiav yam tsis muaj kev puas tsuaj rau lub raj.

Q: Dab tsi yog qib ntawm cov yeeb nkab puag ncig?

A: Qib 1 steel kav yog cov yeeb nkab khoov tau.
Qib 2 steel kav feem ntau yog siv rau kev ua haujlwm (xws li vuam ua haujlwm, ua haujlwm ua haujlwm, thiab lwm yam)

Q: Puas yuav cov hlau nplaum lo rau stainless hlau round yeeb nkab?

A: Austenitic stainless hlau feem ntau tsis yog{0}} sib nqus, thaum ferritic thiab martensitic stainless hlau yog hlau nplaum. Txawm li cas los xij, tej zaum tseem yuav muaj qee qhov kev sib nqus sib nqus txawm tias tsis yog- hlau nplaum hlau tsis zoo vim yog cov impurities lossis cov khoom paug.

Q: Dab tsi yog qhov zoo ntawm stainless hlau round yeeb nkab?

A: Siv cov kav hlau stainless puag ncig muab koj cov khoom siv ruaj khov uas yuav kav ntev mus rau xyoo lawm. Hlau yog cov khoom siv txhim khu kev qha uas yooj yim los tswj thiab nruab. Stainless hlau yog tsawg heev-kev tu, thiab vim nws corrosion-cov khoom tiv taus, nws tsis zoo li nws yuav tsum tau hloov ntau xyoo lawm.

Q: Ntev npaum li cas stainless hlau round kav kav ntev?

A: Stainless hlau puag ncig cov kav dej yuav muab tsawg kawg 100 xyoo kev pabcuam yam tsis muaj kev tawg lossis tawg. Kev ua tsis tiav ntawm stainless hlau round yeeb nkab yog qhov tsawg kawg nkaus.

Q: Koj puas koom nrog stainless hlau round yeeb nkab yam tsis muaj vuam?

A: Lub tshuab txias txias, lossis hlau epoxy putty, tuaj yeem siv los kho cov kav dej, lub tshuab hluav taws xob thiab cov khoom siv tsheb xws li cov kav dej lossis cov crankcases. Hom hlau nplaum no yog tshav kub- tiv taus thiab tuaj yeem siv los ua cov hlau tsis muaj steel, aluminium, cam khwb cia hlau, PVC thiab zinc.

Q: Qhov twg yog qhov zoo dua tooj liab lossis stainless hlau round yeeb nkab?

A: Stainless hlau yog corrosion- tiv taus thiab tiv thaiv los ntawm kev tsim tus kheej - kho cov zaj duab xis passive oxide. Ntawm qhov tod tes, tooj liab yog nquag oxidation, ua rau corrosion dhau sijhawm.

Q: Qhov twg kim dua 304 lossis 316 stainless hlau?

A: Feem ntau, 316 stainless hlau yog siab dua nyob rau hauv nqe piv rau 304 stainless hlau. Qhov no yog vim cov qib siab ntawm nickel cov ntsiab lus muaj nyob rau hauv 316, nrog rau cov muaj molybdenum.

Q: Puas yog stainless hlau round yeeb nkab zoo?

A: Thaum koj siv cov kav hlau stainless, koj tab tom yuav cov khoom siv ruaj khov uas yuav kav koj lub lag luam rau ntau xyoo. Nws yog cov khoom siv txhim khu kev qha uas yooj yim los tswj thiab nruab. Stainless hlau yog tsawg-kev tu, thiab vim nws corrosion- cov khoom tiv taus, nws tsis zoo li lawv yuav tsum tau hloov ntau xyoo lawm.

Q: Vim li cas siv stainless hlau round yeeb nkab?

A: Stainless hlau puag ncig cov yeeb nkab tiv thaiv oxidation, ua rau nws tsis tshua muaj -cov tshuaj kho uas tsim nyog rau kev kub siab thiab tshuaj siv tshuaj. Vim tias nws yooj yim ntxuav thiab ntxuav, stainless hlau puag ncig cov yeeb nkab kuj yog qhov xav tau rau cov ntawv thov suav nrog zaub mov, dej haus, thiab kev siv tshuaj.

Q: Dab tsi yog qhov txawv ntawm 304 stainless hlau thiab 316 stainless hlau?

A: 300 Series qib stainless hlau yog chromium-nickel alloy uas yog tsim los rau hauv ntau yam khoom xws li stainless hlau raj thiab cov kav hlau. Ob leeg 304 thiab 316 steel yeeb nkab yog ruaj txaus los tuav nws lub zog ntawm qhov kub thiab txias, tiv thaiv corrosion, thiab yooj yim los tswj. Kev xaiv ntawm cov khoom siv yog nyob ntawm seb koj yuav siv cov yeeb nkab li cas thiab ib puag ncig ntawm cov yeeb nkab yuav raug ntsia.
Hom 304 stainless hlau yog kab tias hom siv ntau tshaj plaws vim nws yog corrosion-resistant thiab yooj yim rau ntxuav. Hom hlau no feem ntau yog siv rau kev siv zaub mov thiab dej haus los yog siv hauv tsev.
Hom 316 stainless hlau kuj yog corrosion-resistant thiab yooj yim los ntxuav tab sis yog ntau resistant rau corrosion uas tshwm sim los ntawm cov tshuaj thiab cov kuab tshuaj. Vim li no, 316 stainless hlau yog nyiam rau kev lag luam thiab phais daim ntawv thov, los yog sab nraum zoov los yog marine daim ntawv thov vim nws tsis kam mus chloride corrosion.

Q: Puas yog stainless hlau round yeeb nkab xeb?

A: Stainless hlau yog ib txwm corrosion-resistant, tab sis nws tsis tiv thaiv xeb. Thaum nws tsis tshua muaj rusting dua li cov pa steels, raug rau cov tshuaj phem, ntsev, roj, noo noo, los yog cua sov rau lub sij hawm ntev tuaj yeem ua rau corrosion.
