Khoom Description

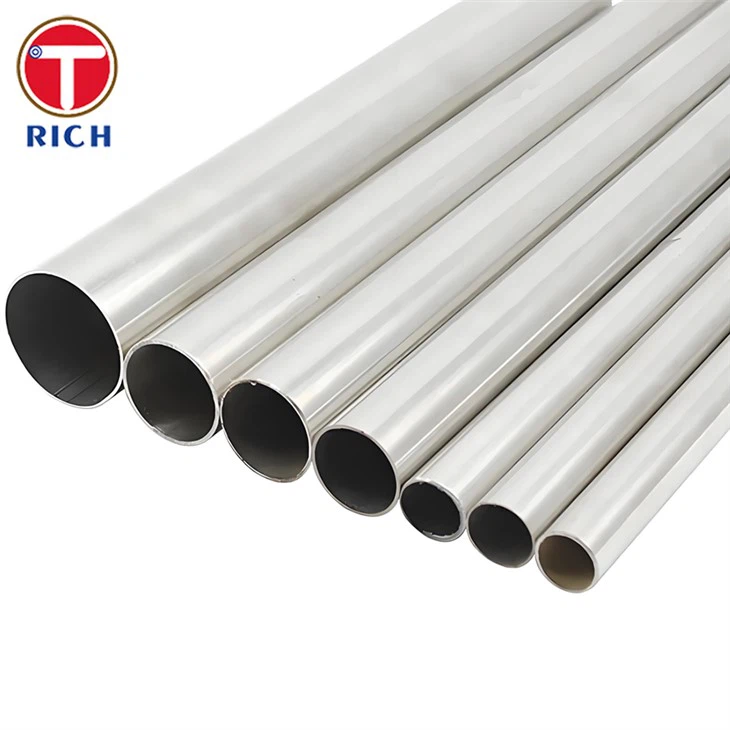

Stainless hlau Round yeeb nkab
Qhov zoo ntawm Stainless Hlau Round Pipe
- TP304 yog siv nyob rau hauv cov tshuaj reactors, tshav kub exchangers, thiab piping qhov twg tsis muaj zog acids, cawv, thiab lwm yam tshuaj me me yuav tsum tau.
- TP309 tiv thaiv oxidation ntawm qhov kub thiab txias thiab feem ntau yog siv rau hauv siab -siab boilers thiab superheaters uas muaj roj kub los yog kua.
- TP310 yog qhov zoo rau kev siv cua sov- cov cuab yeej ua haujlwm, suav nrog cov khoom siv hluav taws xob, cov khoom siv hluav taws xob sib hloov, thiab cov tshuab ua cua txias uas ntsib qhov kub siab - ib puag ncig.
- TP316 stainless hlau muaj zog tiv thaiv chlorides, ua rau nws nyiam cov khoom siv rau cov kav dej hiav txwv, kev tsim cov nkoj, cov roj rigs hauv ntug dej hiav txwv, thiab cov chaw ntug dej hiav txwv raug dej hiav txwv.
Daim ntawv thov ntawm Stainless Hlau Round Pipe
- Kev lag luam tshuaj thiab petrochemical: siv los thauj ntau yam tshuaj corrosive (acids, alkalis, kuab tshuaj, thiab lwm yam), cov txheej txheem dej, chav, dej txias, thiab cov khoom siv raw.
- Kev lag luam roj thiab roj: Cov khoom siv hauv qhov dej, cov cuab yeej hauv qab, thiab cov kav dej rau kev thauj cov roj av thiab cov nkev roj, uas muaj cov khoom corrosive.
- Lub zog thiab lub zog: boiler pub dej pipelines, superheated chav pipelines, geothermal systems, thiab lwm yam.
- Kev kho dej thiab dej hiav txwv desalination: kev thauj mus los hauv brine, siab - cov kav dej siab, cov raj evaporator, thiab lwm yam khoom hauv cov dej hiav txwv desalination nroj tsuag.
Tshuaj muaj pes tsawg leeg
| Qib | C | Mn |
Si |
P | S | Cr | Ni | Mo |
| TIAB SA 304 | 0.08% | 2.00% | 0.75% | 0.045% | 0.030% | 18-20% | 8-10.5% | - |
| TIAB SA 309 | 0.20% | 2.00% | 0.75% | 0.045% | 0.030% | 22-24% | 12-15% | - |
| TIAB SA 310 | 0.25% | 2.00% | 0.75% | 0.045% | 0.030% | 25-30% | 19-22% | - |
| TIAB SA 316 | 0.08% | 2.00% | 0.75% | 0.045% | 0.030% | 16-18% | 10-14% | 2-3% |
Mechanical Properties
| Qib |
Tensile zog (MPa) |
Yield zog (MPa) |
Elongation (%) |
Hardness (HRB) |
|
TIAB SA 304 |
515-725 |
205 |
40-60 | 70-90 |
|
TIAB SA 309 |
515-725 | 205 | 40-60 | 75-95 |
| TIAB SA 310 | 515-725 | 205 | 40-60 | 80-100 |
| TIAB SA 316 | 515-725 | 205 | 40-60 | 80-100 |
Cov qhab nia xaiv tau
- AISI 316L: Tsawg carbon version ntawm TP316, nyiam rau welded daim ntaub ntawv uas carbide nag lossis daus yog ib qho kev txhawj xeeb.
- AISI 304L: Tsawg carbon version ntawm TP304 rau cov ntawv zoo sib xws, muab kev txhim kho weldability.
- TSI 317L: Muaj cov molybdenum siab dua rau kev tiv thaiv corrosion zoo dua li TP316, haum rau qhov chaw corrosive heev.
- Inconel 600: Rau siab - kub daim ntawv thov, muab superior tshav kub tsis kam tshaj TP310.
Khoom Qhia
Cov khoom ntim
