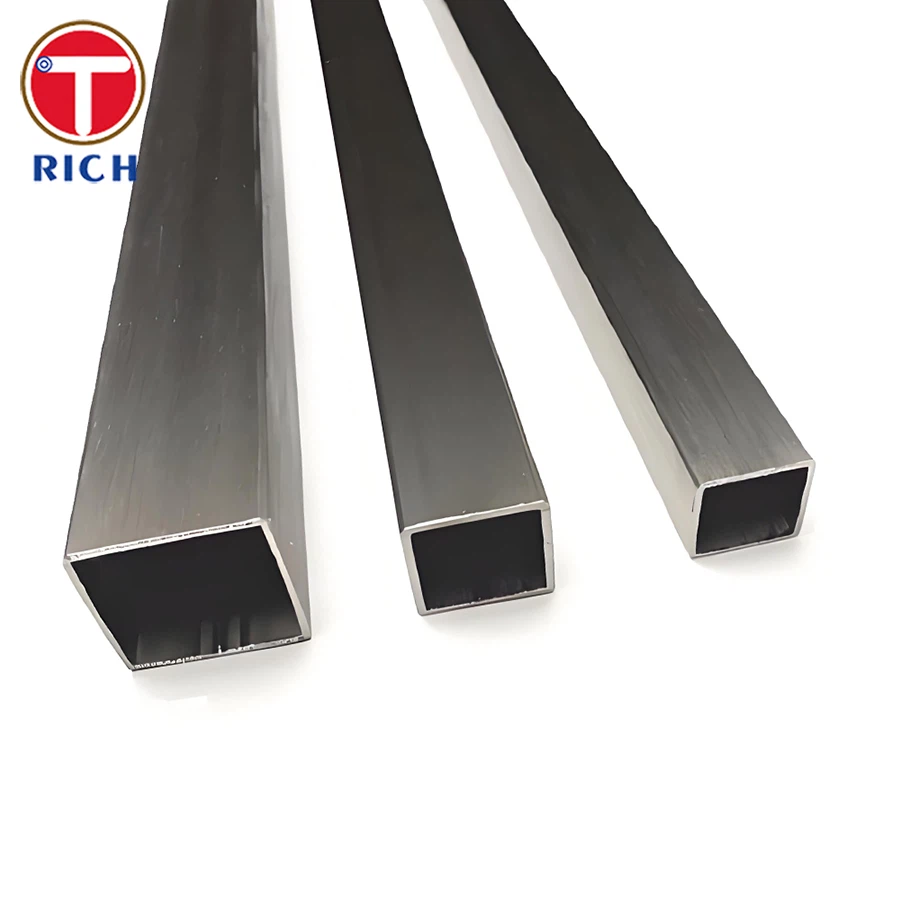

Khoom Description
Peb Qhov Zoo
1. Weld Zoo
- Peb cov kav dej yog tsim los siv cov txheej txheem Electric Resistance Vuam (ERW), nrog rau qhov chaw weld tshem tawm, kom ntseeg tau tias qhov sib txawv weld nkag mus thiab qhov cua sov tsawg kawg nkaus - thaj tsam cuam tshuam.
- Cov kav dej tau txais kev sim tensile los xyuas kom meej tias lub zog weld yog sib npaug los yog ntau dua lub zog ntawm cov khoom siv hauv paus. Kev kuaj ultrasonic thiab eddy tam sim no kuaj yog ua los xyuas kom meej tias cov kav dej tsis muaj kev puas tsuaj sab hauv thiab saum npoo.
2. Lub ntsej muag du
- SS Box Pipe tau txais kev kho hlau kos duab, ua rau muaj qhov siab ntawm qhov chaw du nrog tus nqi Ra txog li 0.4μm, muab qhov zoo nkauj zoo nkauj thiab tsim nyog rau cov ntawv thov kho kom zoo nkauj.
- Cov kav dej tau dhau qhov kev ntsuas qhov roughness thiab kev soj ntsuam kom pom tseeb tias qhov chaw tsis muaj khawb, dents, thiab delamination.
3. Muaj zog corrosion kuj
- SS Box Yeeb Nkab muaj nyob rau hauv cov qib sib txawv corrosion kuj ntawm stainless hlau, xws li 304 thiab 316, tso cai rau peb muab cov qib tsim nyog rau peb cov neeg siv khoom siv, ua kom muaj kev tiv thaiv corrosion hauv ntau qhov chaw.
- Cov kav dej tau txais kev kho mob pickling thiab passivation los kho qhov corrosion kuj ntawm thaj chaw weld. Peb cov ntaub ntawv raw tau sim siv lub spectrometer los xyuas kom meej tias lawv cov tshuaj muaj pes tsawg leeg ua tau raws li JIS G3446 tus qauv specifications.
4. Kev Pabcuam Customization
- TORICH muab cov kev pabcuam uas tsis yog- tus qauv tsim kho, muab cov kav dej raws li daim ntawv thov kos duab. Peb muab ntau yam kev kho mob saum npoo av, suav nrog pickling thiab passivation, ci ntsa iab, kos duab, daim iav polishing, thiab matte lossis satin txheej.
- TORICH tseem muab cov kev pabcuam sib sib zog nqus, suav nrog kev txiav, drilling thiab slotting, dabtsi yog khoov, vuam, thiab kho qhov kawg.
thaj chaw thov
- Architectural thiab Decorative Structures: Lub tsev facades, curtain phab ntsa thiab handrails, sab hauv tsim qauv rau niaj hnub rooj tog thiab fixtures, thiab lwm yam.
- Kev tsim vaj tsev thiab kev tsim vaj tsev: Lub teeb yuag kev txhawb nqa thav duab thiab cov qauv tsim, cov qauv tsim qauv rau cov tsev thiab cov chaw tsim khoom, thiab lwm yam.
- Automotive: Cov ncej thiab cov qauv kev txhawb nqa rau tsheb, trailer, thiab tsheb ciav hlau, thiab lwm yam.
- Marine thiab Sab Nraud Structures: Gazebos, patios, thiab cov rooj tog zaum nraum zoov, thiab lwm yam.
Tshuaj muaj pes tsawg leeg
| Element | C (%) | Si (%) | Mn (%) | P (%) | S (%) | Cr (%) | Tsis muaj (%) | Mo (%) | Fe (%) |
|---|---|---|---|---|---|---|---|---|---|
| SUS 304 | Tsawg dua lossis sib npaug li 0.08 | Tsawg dua los yog sib npaug li 1.00 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | 18.00–20.00 | 8.00–10.50 | - | Tshuav |
| SUS 403 | Tsawg dua los yog sib npaug li 0.15 | Tsawg dua los yog sib npaug li 1.00 | Tsawg dua los yog sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.040 | Tsawg dua lossis sib npaug li 0.030 | 11.50–13.00 | Tsawg dua lossis sib npaug li 0.60 | - | Tshuav |
| SUS 444 | Tsawg dua lossis sib npaug li 0.025 | Tsawg dua los yog sib npaug li 1.00 | Tsawg dua los yog sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.040 | Tsawg dua lossis sib npaug li 0.030 | 17.50–19.50 | Tsawg dua los yog sib npaug li 1.00 | 1.75–2.50 | Tshuav |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) | Hardness | Kev kho cua sov |
|---|---|---|---|---|---|
| SUS 304 | Ntau dua lossis sib npaug li 520 | Ntau dua lossis sib npaug li 205 | Ntau dua lossis sib npaug li 40 | Tsawg dua lossis sib npaug li 187 HB | Tshuaj annealed |
| SUS 403 | Ntau dua lossis sib npaug li 490 | Ntau dua lossis sib npaug li 275 | Ntau tshaj los yog sib npaug rau 20 | Tsawg dua lossis sib npaug li 217 HB | Quenched & tempered |
| SUS 444 | Ntau dua lossis sib npaug li 450 | Ntau dua lossis sib npaug li 280 | Ntau tshaj los yog sib npaug rau 30 | Tsawg dua lossis sib npaug li 200 HB | Annealed |
Cov qhab nia xaiv tau
| Alternative Qib | Yog vim li cas |
| TP 304 L | Nrog corrosion tsis kam thiab nto zoo zoo ib yam li SUS304, nws yog feem ntau siv nyob rau hauv stainless hlau square thiab rectangular welded hlab rau architectural thiab structural daim ntaub ntawv. |
| TIAB SA 409 | Nws muaj kev tiv thaiv oxidation zoo thiab tus nqi -kev ua tau zoo, thiab feem ntau yog siv los hloov SUS403 lossis SUS444 hauv cov qauv tsim thiab kev lag luam. |
| TP 316 L | Nws pom zoo pitting corrosion kuj nyob rau hauv ib puag ncig chloride, ua rau nws haum rau marine ib puag ncig. |
Khoom Qhia
Cov khoom siv kuaj
Eddy Tam sim no Flaw Detector
Hydraulic Universal Test tshuab
Intergranular Corrosion Tester
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom siv polishing
Cov khoom siv kos duab txias
Cov khoom ntim
FAQ
Q: Koj lub raj square puas tau raws li cov qauv thoob ntiaj teb, thiab lawv puas tau lees paub thiab kuaj?
A: Yog. Tag nrho peb cov raj yog tsim raws li JIS G3446 tus qauv thiab ua raws li kev tswj hwm nruj, suav nrog kev tshuaj xyuas tshuaj lom neeg, tshuaj xyuas cov cuab yeej cuab yeej, kev tshuaj xyuas qhov ntev, thiab kev soj ntsuam kev sib raug zoo, thiab peb muab cov ntawv pov thawj ntawm lub Hoobkas.
Q: Puas tuaj yeem ua tiav ntawm cov hlab ntsha tuaj yeem kho tau?
A: Muaj tseeb. Peb tuaj yeem muab BA, 2B, No.4 / HL, pickling, thiab passivation kev kho mob raws li cov neeg siv khoom xav tau.
Q: Koj puas muab cov kev pabcuam ntim customized?
A: Yog, peb siv export-qib tiv thaiv-corrosion ntim, xws li ntoo crates lossis bundled ntim, uas tuaj yeem kho raws li hiav txwv lossis huab cua freight.
