Khoom Description
Khoom Specifications
| Cov qauv | ASTM A268 / A268M ASTM |
| Qib Steel | TP405 TP410 TP430 TP443 TP446-1 TP446-2 TP409 TP439 TP430Ti TPXM-27 TPXM{10}}Cr-2Mo 29-4 29-4-2 26-3-3 25-4-4 TP468 |
| Cov qauv sib npaug | EN 10088-2 / JIS G4305 |
| Sab nraud Diameter (OD) | 6.00mm-114.3 hli |
| Phab ntsa Thickness (WT) | 0.50mm-4.00 hli |
| Ntev | 3/6/12m, customized |
| Kev kho saum npoo | BA, 2B, Pickled, Polished |
| Txheej txheem ntau lawm | TIG Welded / Cold Drawn |
| Qhov xwm txheej | Bright Annealed |
Automotive cua tshuab tau txuas ntxiv raug rau siab -cov pa roj cua kub. Welded thiab kos stainless hlau tubing ua los ntawm cov qib ferritic xws li 409 thiab 439 muaj qhov zoo heev - kub oxidation kuj; Qhov tseem ceeb, TP409 tswj kev ua haujlwm ruaj khov ntawm kev ua haujlwm tsis tu ncua mus txog 675 degree.
Thaum lub sij hawm tsim cov khaub thuas- kos welded tubing, cov khoom siv tau txias txias thiab txheej txheem annealing tom qab vuam. Qhov no tshem tawm cov as-welded cam khwb cia microstructure, ua kom zoo, zoo ib yam equiaxed ferritic nplej thiab kom ntseeg tau ib tug high℃ntawm lub zog uniformity ntawm lub raj matrix thiab weld seam. Tsis tas li ntawd, piv rau cov khoom siv hluav taws xob uas nquag siv- cov qib austenitic resistant xws li TP304/304L, cov ntaub ntawv xws li 409, 439, thiab 441 muab cov nqi qis dua, kev ua haujlwm qis dua- hardening rate thaum lub caij txias txias, thiab cov txheej txheem annealing yooj yim dua.
Customized Services
- TORICH muaj kev hloov kho rau qhov tsis yog- tus qauv qhov ntev, txhawb nqa sab nraud diameters ntawm 6.00 mm–114.3 mm thiab phab ntsa thicknesses ntawm 0.50 mm–4.00 mm, nrog rau cov qauv tsim muaj qhov sib txawv ntawm phab ntsa thicknesses thiab tshwj xeeb hla- ntu.
- Peb muab qhov kawg - kev pabcuam tsim, suav nrog V-band clamp xaus, pob-thiab- qhov (socket flared ends), swaged/txo xaus, nthuav qhov xaus, thiab vuam rau lub kaum sab xis, oval, thiab daim duab plaub flanges.
- Peb muab cov kev pab cuam khoov nrog qhov tsawg kawg yog khoov vojvoog ntawm 1.0D, txhawb kev cai uas tsis yog -tus lej radii thiab tsim ntawm complex exhaust manifold geometries.
Tshuaj muaj pes tsawg leeg
| Lub ntsiab | C | Mn | P | S | Si | Cr | Ni | Ti | Nb | Al | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TIAB SA 409 | Tsawg dua los yog sib npaug li 0.08 | Tsawg dua los yog sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua los yog sib npaug li 1.00 | 10.50–11.75 | Tsawg dua los yog sib npaug li 0.50 | 6 × (C + N) Tsawg dua lossis sib npaug rau 0.75 | - | - | - |
| TIAB SA 439 | Tsawg dua los yog sib npaug li 0.07 | Tsawg dua los yog sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.040 | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua los yog sib npaug li 1.00 | 17.00–19.00 | Tsawg dua los yog sib npaug li 0.50 | 0.20+4(C+N) Tsawg dua lossis sib npaug rau 1.10 | - | Tsawg dua los yog sib npaug li 0.15 | Tsawg dua lossis sib npaug li 0.04 |
| TIAB SA 441 | Tsawg dua los yog sib npaug li 0.03 | Tsawg dua los yog sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.040 | Tsawg dua lossis sib npaug li 0.015 | Tsawg dua los yog sib npaug li 1.00 | 17.50–19.50 | Tsawg dua los yog sib npaug li 1.00 | 0.10–0.60 | 9 × C+0.30 Tsawg dua los yog sib npaug rau 1.00 | - | Tsawg dua los yog sib npaug li 0.03 |
Mechanical Properties
| Khoom | Tensile zog Rm | Yield zog Rp0.2 | Elongation (50 hli ntsuas) | Hardness (HRB) |
|---|---|---|---|---|
| TIAB SA 409 | Ntau dua lossis sib npaug rau 380 MPa (55 ksi) | Ntau dua lossis sib npaug rau 170 MPa (25 ksi) | Ntau dua lossis sib npaug li 20% | Tsawg dua los yog sib npaug li 90 |
| TIAB SA 439 | Ntau dua lossis sib npaug rau 415 MPa (60 ksi) | Ntau dua lossis sib npaug rau 205 MPa (30 ksi) | Ntau dua lossis sib npaug li 20% | Tsawg dua los yog sib npaug li 90 |
| TIAB SA 441 | Ntau dua lossis sib npaug rau 415 MPa (60 ksi) | Ntau dua lossis sib npaug rau 205 MPa (30 ksi) | Ntau dua lossis sib npaug li 20% | Tsawg dua los yog sib npaug li 90 |
Cov qhab nia xaiv tau
- 304/304L stainless hlau yog ib qho khoom siv siv ntau dua; piv rau qib ferritic xws li TP409 thiab TP439, 304L muaj kev tiv thaiv corrosion zoo dua, ua rau nws tsim nyog rau cov khoom siv hluav taws xob uas raug rau qhov chaw ntub dej thiab kev ntsev.
- 309S stainless hlau yog siab -chromium-nickel alloy; piv rau TP441, nws yog qhov tsim nyog rau cov khoom siv hluav taws xob ua haujlwm nyob rau hauv siab heev - qhov kub thiab txias ntawm kwv yees li 1000℃.
- 18CrNb stainless hlau yog ferritic stainless hlau tsim tshwj xeeb rau kev siv lub tshuab tso tsheb, nrog rau qhov kub thiab txias ntawm kwv yees li 850-900 degree.
thaj chaw thov
ASTM A268 welded thiab kos stainless hlau tubing yog dav siv thoob plaws hauv lub tsheb tso tsheb, tshwj xeeb hauv kev siv xws li:
tso pa tawm manifolds rau tsheb thiab maus taus; turbocharger inlet thiab roj rov kav; catalytic converter vaj tse thiab substrate tes tsho; pem hauv ntej thiab nram qab muffler internals thiab resonator kav; nruab nrab cov kav dej thiab tailpipes; thiab Exhaust Gas Recirculation (EGR) cov kav dej txias.

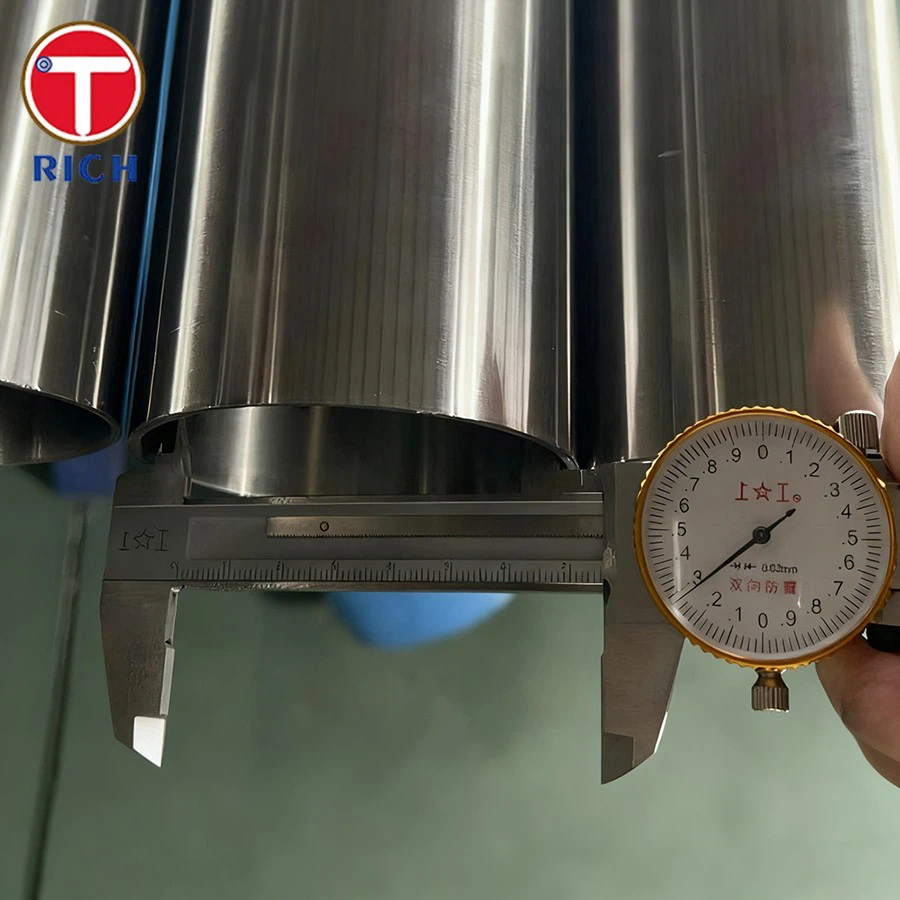

Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom siv polishing
Cov khoom siv kos duab txias
Cov khoom ntim
FAQ
Q: Qhov ntsuas kub siab tshaj plaws rau TP409, TP439, thiab TP441 yog dab tsi?
A: Nyob rau hauv cov xwm txheej oxidation tsis tu ncua, TP409 yog kwv yees li 675 degree, TP439 yog kwv yees li 815 degree, thiab TP441 yog kwv yees li 850 degree. Qhov kub siab tshaj plaws rau kev sib cuam tshuam (cyclic) kev pabcuam tuaj yeem yog li 50-100℃siab dua. Cov kev txwv tiag tiag nyob ntawm qhov chaw tshwj xeeb, muaj cov corrosive condensate, thiab cov khoom siv tshuab.
Q: Dab tsi yog dabtsi yog khoov cov yam ntxwv ntawm txias -cov raj?
A: Nyob rau hauv lub xeev annealed, txias -kos ferritic tubes nthuav tawm elongation ntau tshaj 25% thiab muaj cov khoom zoo khoov. Peb tuaj yeem muab cov raj khoov tiav nrog khoov radii xws li 1.5D mus rau 3D raws li cov duab kos, kom ntseeg tau tias ovality thiab phab ntsa thinning tus nqi raws li OE cov qauv.
Q: Koj puas tuaj yeem kho cov raj uas muaj qhov sib txawv lossis tsis yog -paj hla- ntu?
A: Yog. Siv cov txheej txheem xws li txias-txoj raj- xaus kev sib sau (flaring, swaging, los yog ntxhov siab), spinning, los yog hydroforming, peb tuaj yeem xa cov khoom uas muaj cov kab hloov pauv, tav, lossis tshwj xeeb hla- ntu raws li koj cov duab kos.
