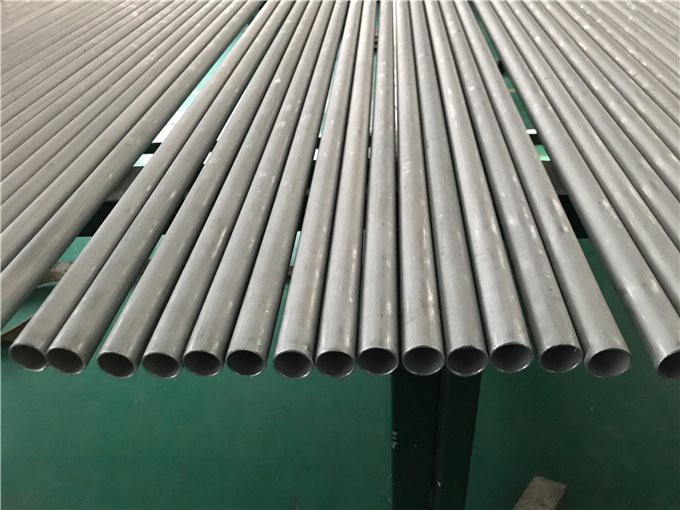

ASTM A269 Tp304 Tp316 Seamless Ss Tubing

ASTM A269 TP304 TP316 Seamless SS Tubing ua raws li cov qauv kev qhia tshwj xeeb rau dav dav -lub hom phiaj seamless thiab welded austenitic stainless hlau kav. Tp304 thiab Tp316 cov khoom siv tau zoo heev corrosion kuj thiab tau dav siv hauv roj thiab roj, tshuaj ua haujlwm, khoom noj thiab dej haus, tshuaj, thiab lwm yam.
Sab nraud txoj kab uas hla: 10mm-630mm
Phab ntsa Thickness: 0.5mm-55mm
Ntev: tuaj yeem kho raws li qhov kev thov
Steel Qib: TP304 TP304L TP304LN TP316 TP316L TP316LN TP317 TP321 TP347 TP348

Khoom Description

ASTM A269 Tp304 Tp316 Seamless Ss Tubing

Qhov zoo ntawm ASTM A269 Tp304 Tp316 Seamless Ss Tubing

Tshuaj thiab Petrochemical Industries: TP316 resists chloride -induced corrosion thiab acidic ib puag ncig, thiab nws seamless kev tsim kho kom xau{2}} dawb kev ua tau zoo nyob rau hauv siab - siab / siab - kub systems.
Kev ua zaub mov thiab dej haus: TP304 yog FDA-ua raws thiab tsis yog- tshuaj lom, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev huv huv.
Pharmaceutical thiab Biotechnology: Nws tsis yog - ntxeem tau, du sab hauv nto muab kev huv thiab huv.
Marine thiab Offshore Applications: Seamless yeeb nkab tiv taus cov neeg kho tshuab kev ntxhov siab ntawm nthwv dej thiab kev hloov pauv siab . 316 kuj muaj kev tiv thaiv corrosion zoo heev.

Daim ntawv thov ntawm ASTM A269 Tp304 Tp316 Seamless Ss Tubing

TP304 Tubing: Khoom noj khoom haus thiab dej haus kev lag luam, tshav kub exchangers, kho mob, siv kev tsim kho, thiab lwm yam.
TP316 tubing: chemical thiab petrochemical ua, kev siv dej hiav txwv, cov khoom siv tshuaj ua haujlwm, kev lag luam pulp thiab ntawv

Tshuaj muaj pes tsawg leeg

Element	Cov pa roj carbon	Manganese	Phosphorus	Sulfur	Silicon	Chromium	Nickel
Tp304 (%)	0.08 max	max 2.00 Nws	0.045 max	0.030 max	max 1.00 Nws	18.0–20.0	8.0–11.0
Tp316 (%)	0.08 max	max 2.00 Nws	0.045 max	0.030 max	max 1.00 Nws	16.0–18.0	11.0–14.0

Mechanical Properties

Khoom	Tensile zog (MPa)	Yield zog (MPa)	Elongation (%)	Hardness (HBN)
twb 304	515 nqi	205 feeb	35 feeb	90 max
twb 316	515 nqi	205 feeb	35 feeb	90 max

Cov qhab nia xaiv tau

Thaum ASTM A269 Tp304 Tp316 seamless SS tubing muaj kev ua tau zoo, muaj lwm qib muaj nyob hauv khw. Qee cov qhab nia xaiv tau rau kev txiav txim siab yog:

ASTM A213 Tp304 Tp316: Cov qib no muaj cov tshuaj lom neeg thiab cov khoom siv zoo sib xws thiab yog cov kev xaiv tsim nyog rau cov ntawv thov tshwj xeeb.
ASTM A312 Tp304 Tp316: Cov qib no yog tsim los rau hnyav- cov ntawv thov thiab muaj zog dua thiab ntau qhov ntau thiab tsawg.

Khoom Qhia

Cov khoom siv

steeltube-applications

Cov khoom ntim

stainless steel pipe package.jpg

Cim npe nrov: astm a269 tp304 tp316 seamless ss tubing, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, nqe, OEM, zeb, tsim, kev muag khoom
