Khoom Description
Peb Qhov Zoo
1. Kev kub siab ua haujlwm

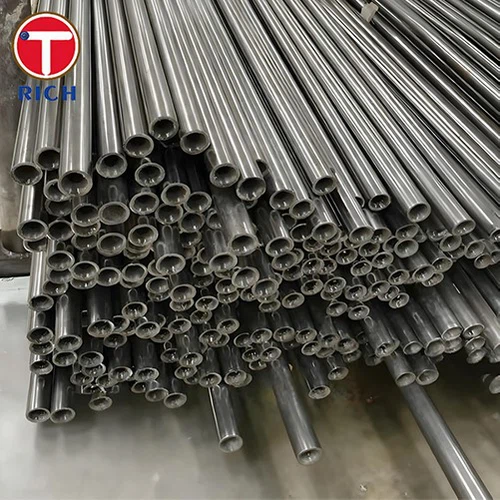

Peb Automotive Stainless Hlau Tube yog seamless stainless hlau raj tsim los ntawm kev kos duab txias. Nws cov phab ntsa tuab tuab tso cai rau nws tiv taus siab hydraulic siab nyob rau hauv lub hwj chim kauj, braking, thiab ncua kev kawm ntawv systems tsis muaj to los yog deformation.
2. Muaj zog corrosion kuj
Peb cov raj tau txais kev kuaj xyuas kev sib tsoo, tiv thaiv txoj kev ntsev, nres cov kua dej, cov roj hydraulic, noo noo, thiab ib puag ncig corrosion, ua kom lub neej ntev.
3. Thermal Cycling Stability
Peb cov raj seamless yog ua los ntawm siab - zoo austenitic stainless hlau, tswj cov khoom siv kho tshuab zoo thoob plaws qhov kub ntawm -196℃rau +870 degree, tiv thaiv kev qaug zog los ntawm kev nthuav dav thiab kev cog lus.
4. Zoo heev Flexibility
Peb Automotive Stainless Hlau Tube raug khoov thiab weldability kuaj, qhia tau zoo heev yooj thiab weldability. Nws ua kom tsis muaj qhov txhab lossis tawg thaum lub sijhawm me me - vojvoog dabtsi yog khoov thiab haum rau ntau yam txheej txheem vuam, suav nrog IG vuam, laser vuam, vuam vuam, thiab vuam tsis kam.
5. Qhov tseeb qhov tseeb
Peb cov tubing tau txais kev tswj xyuas nruj kom ntseeg tau tias cov txheej txheem sab nraud, phab ntsa tuab, ncaj, thiab ovality ua tau raws li ASTM A269 tus qauv kam rau ua lossis cov neeg siv khoom xav tau.
6. Nto Zoo
Peb cov tubing qhov chaw raug kho nrog kev kos duab txias, pickling, passivation, thiab polishing, uas ua rau lub ntsej muag du uas txo kev sib txhuam, txo qis kev poob siab, thiab tiv thaiv kev sib tsoo ntawm cov kab mob hauv hydraulic system.
thaj chaw thov
- Fais fab Steering Hydraulic Kab
- Electronic Power Steering (EPS) Siab Kab
- Kis Hydraulic Tswj Kab
- Active Suspension System
- Hydraulic Clutch Kab
- ABS thiab ESP Hydraulic Distribution Lines
- Turbocharger Actuator Hydraulic Kab
- Cav thiab Kis Lubrication / Hydraulic Fais Fab Steering System
Tshuaj muaj pes tsawg leeg
| Element | C | Mn | Si | P | S | Cr | Ni | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| 304L | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 0.75 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | 18.0–20.0 | 8.0–12.0 | - | - |
| 316L | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 0.75 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | - |
| 2205 Duplex | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 1.00 | Tsawg dua lossis sib npaug li 0.030 | Tsawg dua los yog sib npaug rau 0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 | 0.08–0.20 |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog 0.2% (MPa) | Elongation (%) | Hardness (HB) |
| 304L | Ntau dua lossis sib npaug rau 485 | Ntau dua lossis sib npaug li 170 | Ntau dua lossis sib npaug li 40 | Tsawg dua los yog sib npaug li 160 |
| 316L | Ntau dua lossis sib npaug rau 485 | Ntau dua lossis sib npaug li 170 | Ntau dua lossis sib npaug li 40 | Tsawg dua los yog sib npaug li 160 |
| 2205 Duplex | Ntau dua lossis sib npaug rau 620 | Ntau dua lossis sib npaug li 450 | Ntau dua lossis sib npaug li 25 | Tsawg dua lossis sib npaug li 290 |
Cov qhab nia xaiv tau
| Alternative Qib | Yog vim li cas |
| 321 | Titanium-stabilized rau siv nyob rau hauv siab - qhov kub thiab txias nyob ze lub cav. |
| 309S / 310S | High -kub resistant, haum rau siab - tsheb ua tau zoo. |
| 430/439 | Ferritic, haum rau qis -siab hydraulic kab, nqi- zoo. |
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
