Khoom Description
Peb Qhov Zoo
1. Smooth puab nto

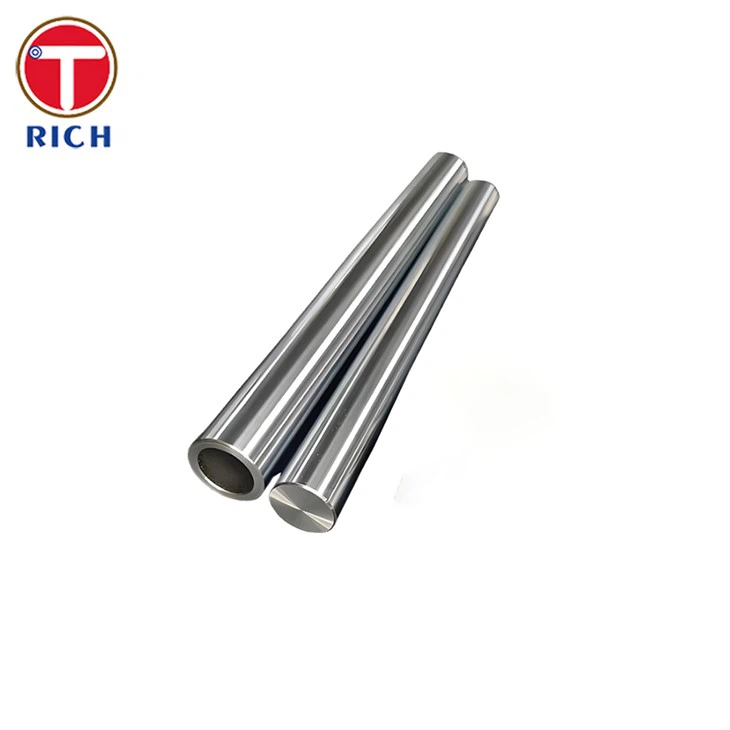

304 Stainless Hlau Honed Tube yog tsim los siv cov txheej txheem txias txias ua raws li honing lossis cov menyuam polishing. Lub puab nto roughness tuaj yeem ncav cuag Ra Tsawg dua lossis sib npaug li 0.4 μm, txo kev sib txhuam ntawm lub piston thiab lub tog raj kheej phab ntsa. Qhov no ua kom lub zog piston du, yog li txhim kho cov lus teb ceev thiab ua haujlwm tau zoo.
2. Corrosion Resistance
Peb cov hlau stainless honed tubes yog tsim los ntawm siab- zoo stainless hlau, tiv thaiv xeb thiab tshuaj lom neeg corrosion los ntawm hydraulic roj thiab ib puag ncig noo noo, kom ntseeg tau ntev -lub sij hawm, txhim khu kev qha lag luam nyob rau hauv marine, industrial, los yog sab nraum zoov daim ntaub ntawv.
3. Cov cuab yeej cuab tam zoo heev
304 Stainless Hlau Honed Tube muaj lub zog zoo, ductility, thiab toughness, tswj kev ua haujlwm ruaj khov nyob rau hauv lub zog siab. Lawv kuj yog annealed kom tshem tawm cov kev ntxhov siab sab hauv thiab txhim kho toughness.
4. Nto Zoo
Sab nrauv ntawm lub raj yog polished los xyuas kom meej tias nws tsis muaj kab nrib pleb, overlaps, folds, thiab lwm yam tsis xws luag; lub puab nto yog honed mus rau ib tug high℃ntawm smoothness, txo cov seal hnav thiab tiv thaiv kom txhob muaj kab mob ntawm lub hydraulic system.
5. Kev Tswj Xyuas Zoo
TORICH cov raj honed tau txais kev tswj xyuas nruj, suav nrog kev kuaj tshuaj lom neeg, tshuaj xyuas cov cuab yeej cuab tam, kev tshuaj xyuas qhov ntev, kev ntsuam xyuas qhov roughness, thiab tsis yog- kuaj kev puas tsuaj, kom ntseeg tau tias lub raj qhov ntev thiab zoo raws li cov neeg siv khoom xav tau.
thaj chaw siv
- Hydraulic thooj voos kheej kheej: excavators, loaders, cranes, forklifts, ua liaj ua teb machinery
- Pneumatic lub tog raj kheej: Hoobkas automation khoom, neeg hlau, thiab sib dhos kab
- Automotive: shock absorbers thiab struts, hydraulic nres tshuab
- Cov khoom siv marine thiab offshore: hydraulic systems rau nkoj thiab offshore platforms
- High -kev siv kub: Thaum tshav kub kub exchangers thiab chemical txheej txheem khoom, rauv tubing, thiab txheej txheem kav
Tshuaj muaj pes tsawg leeg
| Element | Cov pa roj carbon | Manganese | Silicon | Phosphorus | Sulfur | Chromium | Nickel | Molybdenum | Titanium | Nitrogen |
| 304 | Tsawg dua los yog sib npaug li 0.08 | Tsawg dua los yog sib npaug rau 2.0 | Tsawg dua los yog sib npaug rau 1.0 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.03 | 18–20 | 8–11 | – | – | Tsawg dua lossis sib npaug li 0.10 |
| 316 | Tsawg dua los yog sib npaug li 0.08 | Tsawg dua los yog sib npaug rau 2.0 | Tsawg dua los yog sib npaug rau 1.0 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.03 | 16–18 | 10–14 | 2–3 | – | Tsawg dua lossis sib npaug li 0.10 |
| 309 | Tsawg dua los yog sib npaug li 0.20 | Tsawg dua los yog sib npaug rau 2.0 | Tsawg dua los yog sib npaug rau 1.0 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.03 | 22–24 | 12–15 | – | – | Tsawg dua lossis sib npaug li 0.10 |
| 321 | Tsawg dua los yog sib npaug li 0.08 | Tsawg dua los yog sib npaug rau 2.0 | Tsawg dua los yog sib npaug rau 1.0 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.03 | 17–19 | 9–12 | – | 0.20–0.70 | Tsawg dua lossis sib npaug li 0.10 |
Mechanical Properties
| Khoom | Tensile zog | Yield zog | Elongation | Hardness | Impact Toughness |
| 304 | Ntau dua lossis sib npaug li 515 MPa | Ntau dua lossis sib npaug li 205 MPa | Ntau dua lossis sib npaug li 40% | Tsawg dua lossis sib npaug rau 201 HB | Zoo heev |
| 316 | Ntau dua lossis sib npaug li 515 MPa | Ntau dua lossis sib npaug li 205 MPa | Ntau dua lossis sib npaug li 40% | Tsawg dua lossis sib npaug rau 201 HB | Zoo heev |
| 309 | Ntau dua lossis sib npaug li 520 MPa | Ntau dua lossis sib npaug li 210 MPa | Ntau dua lossis sib npaug li 40% | Tsawg dua lossis sib npaug rau 201 HB | Zoo heev |
| 321 | Ntau dua lossis sib npaug li 515 MPa | Ntau dua lossis sib npaug li 205 MPa | Ntau dua lossis sib npaug li 40% | Tsawg dua lossis sib npaug rau 201 HB | Zoo heev |
Cov qhab nia xaiv tau
- TIAB SA 2205- Ntau zog thiab zoo heev corrosion kuj nyob rau hauv ib puag ncig chloride.
- Super Duplex 2507- Superior corrosion kuj thiab txhua yam muaj zog rau kev txhoj puab heev.
- Alloy 20 (UNS N08020)- Zoo acid thiab tshuaj tiv thaiv.
- 904L- Premium corrosion kuj rau hnyav tshuaj ib puag ncig.
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
Cim npe nrov: 304 stainless hlau honed tube, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, nqe, OEM, zeb, tsim, kev muag khoom
