Khoom Description
Khoom Specifications
| Cov qauv |
ASTM A213 / A213M / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / A213M / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / A213M / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213 / ASTM A213) thiab ASTM A213M |
| Qib Steel | TP201 TP202 TP304 TP304L TP304H TP309S TP309H TP310S TP316 TP316L TP317 TP321 TP347 TP347H TP348 TP348H TP444, thiab lwm yam. |
| Cov qauv sib npaug | EN 10216-5, JIS G 3463, ISO 2604-2 |
| Sab nraud Diameter (OD) | 3.2mm - 127mm (1/8 nyob rau hauv - 5 nyob rau hauv) |
| Phab ntsa Thickness (WT) | 0.38 hli - 12.70 hli (0.015 nyob rau hauv - 0.500 nyob rau hauv) |
| Ntev | Mus txog 25 m |
| Kev kho saum npoo | Annealed & Pickled |
| Txheej txheem ntau lawm | Cold Drawn / Txias Rolled |
| Qhov xwm txheej | Kev daws Annealed |

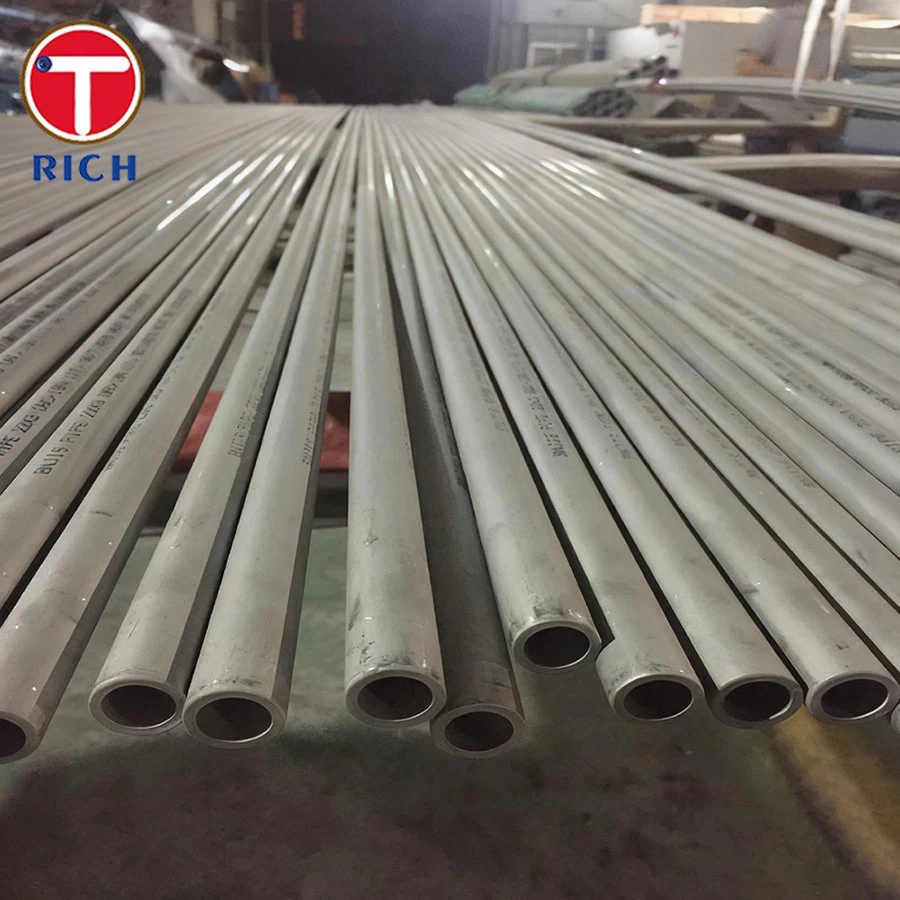

Lub tshav kub exchanger stainless hlau raj tau txais cov txheej txheem kev kho mob tshwj xeeb nrog rau siab -kub tshuaj annealing ua raws li kev ntxhov siab thib ob. Qhov no ua kom cov qauv zoo ib yam thiab ruaj khov metallographic muaj peev xwm tiv taus ntau txhiab lub voj voog thermal hloov pauv -xws li ntawm -20℃mus rau 650℃-tsis muaj qhov cuam tshuam thermal qaug zog, kev ua haujlwm tsis zoo, lossis kev ntxhov siab tawg.
Leveraging lub siab chromium-nickel alloy muaj pes tsawg leeg muaj nyob rau hauv stainless hlau, ib tug ntom, tiv thaiv oxide zaj duab xis rau ntawm lub raj nto. Nyob rau hauv kev ua haujlwm ntawm 600 degree, qhov siab -kub oxidation tseem tsawg dua lossis sib npaug li 0.02 g / (m²·h). Qhov no muaj txiaj ntsig zoo tiv thaiv oxidation uas tshwm sim los ntawm sulfur dioxide, nitrogen oxides, cov khoom me me, thiab cov kab mob ntawm cov tshuaj chlorine thiab sulfur- uas muaj cov xov xwm muaj nyob rau hauv cov hluav taws xob fais fab nroj tsuag flue gases, yog li tiv thaiv tube phab ntsa thinning thiab to thaum lub sijhawm ua haujlwm ntev.
Customized Services
- TORICH muaj cov kev pabcuam ua haujlwm rau U-tube, siv CNC dabtsi yog khoov cov cuab yeej kom txias- khoov cov raj ncaj nraim raws li khoov radii thiab raj bundles layout kos duab los ntawm tus neeg siv khoom.
- Peb muab cov kev pabcuam ua tiav rau ob qho tib si qhov kawg thiab beveled xaus; beveled kawg tuaj yeem yog qhov tseeb-machined rau cov ces kaum tshwj xeeb los ntawm tus neeg siv khoom (xws li, 30℃lossis 37.5℃).
- Peb kuj muaj kev cai txiav cov kev pab cuam ntev li ntawm 1m mus rau 25m, nrog rau kev txiav txim siab nyob rau hauv ± 0.5 hli.
Tshuaj muaj pes tsawg leeg
| Element | C (%) | Mn (%) | Si (%) | Cr (%) | Tsis muaj (%) | Nb (%) | P (%) | S (%) |
|---|---|---|---|---|---|---|---|---|
| TP 309 H | 0.04–0.10 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 0.75 | 22.0–24.0 | 12.0–15.0 | - | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 |
| TP 310 H | 0.04–0.10 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 1.50 | 24.0–26.0 | 19.0–22.0 | - | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 |
| TP 347 H | 0.04–0.10 | Tsawg dua lossis sib npaug li 2.00 | Tsawg dua lossis sib npaug li 0.75 | 17.0–20.0 | 9.0–13.0 | 8×C–1.00 | Tsawg dua lossis sib npaug li 0.045 | Tsawg dua lossis sib npaug li 0.030 |
Mechanical Properties
| Khoom | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) | Hardness |
|---|---|---|---|---|
| TP 309 H | Ntau dua lossis sib npaug li 515 | Ntau dua lossis sib npaug rau 205 | Ntau dua lossis sib npaug li 35 | Tsawg dua lossis sib npaug li 95 HRB |
| TP 310 H | Ntau dua lossis sib npaug li 515 | Ntau dua lossis sib npaug rau 205 | Ntau dua lossis sib npaug li 35 | Tsawg dua lossis sib npaug li 95 HRB |
| TP 347 H | Ntau dua lossis sib npaug li 515 | Ntau dua lossis sib npaug rau 205 | Ntau dua lossis sib npaug li 35 | Tsawg dua lossis sib npaug li 95 HRB |
Cov qhab nia xaiv tau
- Piv rau TP309H, TP310H, thiab TP347H, TP304H muaj cov nqi qis dua thaum pom cov oxidation zoo heev nyob rau hauv qhov kub thiab txias ntawm 550-650 degree.
- TP321H ua hauj lwm raws li ib tug siv tau lwm txoj rau TP347H; nws cov titanium stabilization muab kev tiv thaiv rau intergranular corrosion, ua rau nws haum rau siv nyob rau hauv superheater seem (tshwj xeeb yog nruab nrab-kub aav).
- Rau siab - qhov kub thiab txias ib puag ncig xws li 600℃txog 900℃, Incoloy 800H lossis 800HT tuaj yeem raug xaiv los ua lwm txoj hauv kev, muab qhov tshwj xeeb tiv thaiv rau thermal qaug zog thiab ua pov thawj zoo heev rau ultra-supercritical boilers.
thaj chaw thov
ASTM A213 stainless hlau raj yog dav siv nyob rau hauv boiler tshav kub hloov Cheebtsam uas yuav tsum tau tiv taus huab cua kub thiab siab tej yam kev mob, xws li superheater hlab thiab reheater hlab.
Hauv Chav Tsim & Cov Cuab Yeej Siv Hluav Taws Xob, lawv tau ua haujlwm nyob rau hauv HRSG tubing, steam coil heat exchangers, Secondary heat recovery systems, and similar applications.
Nyob rau hauv Condenser & Cooling Systems, lawv yog siv nyob rau hauv deg condensers, txias dej kub exchangers, thiab lwm yam.
Hauv Feedwater Heating Systems, lawv tau siv rau hauv siab - thiab qis - siab feedwater heaters thiab deaerator heat exchangers.
Tsis tas li ntawd, lawv tau siv rau hauv Nuclear Power Plant Systems, Ultra-Supercritical & Advanced Power Plants, nrog rau Biomass & Pov Tseg - rau- Lub Zog Hluav Taws Xob.
Khoom Qhia
Cov khoom siv kuaj
Khoom siv Hoobkas
Cov khoom siv Pickling
Cov khoom ntim
FAQ
Q: Yuav ua li cas xaiv tubing cov ntaub ntawv rau fais fab nroj tsuag tshav kub exchangers?
A: TP304H → Huv, tsis tshua muaj - kub flue gas & ruaj khov kev ua haujlwm
TP316H → Mildly corrosive flue gas & pov tseg tshav kub rov qab systems
TP321H → Nquag pib- nres & hnyav caij tsheb kauj vab
TP347H → High-kub, siab -siab & corrosive tseem ceeb seem (xws li, superheaters)
Q: Dab tsi yog qhov txawv ntawm H- qib stainless hlau tubing thiab tus qauv stainless hlau tubing?
A: H- qib stainless hlau (0.04–0.10% C) muaj cov pa roj carbon ntau dua, tsim cov carbides ruaj khov ntawm qhov kub thiab txias.
Qhov no ua rau muaj txiaj ntsig zoo rau kev nkag siab - tawg lub zog thiab ntev- lub sij hawm siab - qhov kub thiab txias, ua rau nws tsim nyog rau boiler kub seem xws li superheaters piv rau cov qauv qib.
Q: Dab tsi tsis yog -txoj kev kuaj kev puas tsuaj muaj feem xyuam rau ASTM A213 tubing?
A: Txhua qhov ntev ntawm A213 tubing yuav tsum tau kuaj xyuas hydrostatic los yog tsis yog -kev ntsuas hluav taws xob puas tsuaj. Tsis tas li ntawd, Eddy Current Testing (ET) thiab/lossis Ultrasonic Testing (UT) yuav ua tau raws li cov neeg siv khoom tshwj xeeb.
